1.2m Full Carbon Fiber Flyaway Dish Antenna
| Price: |
US $ 100-1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HXWTp1.2m-T |
| Size: |
1.2m |
| Polarization: |
Linear/Circular |
| Drive Type: |
Manual |
| Color: |
Black |
| Warranty: |
1 Year |
| Enterprise Nature: |
Manufacturer |
| Customized: |
Available |
| Certificate: |
ISO9001 |
| Market: |
Global |
| Logo: |
Huaxin/Customized |
| Usage: |
Communication Antenna |
| Usage Occasion: |
Flyaway Antenna, Portable Antenna |
| Operating Wavelength: |
C-Band, Ku-Band |
| Material: |
Carbon Fiber |
| Nature Of Operation: |
Rxtx Antenna |
| Sturcture Form: |
Tripod Mount |
Product Description

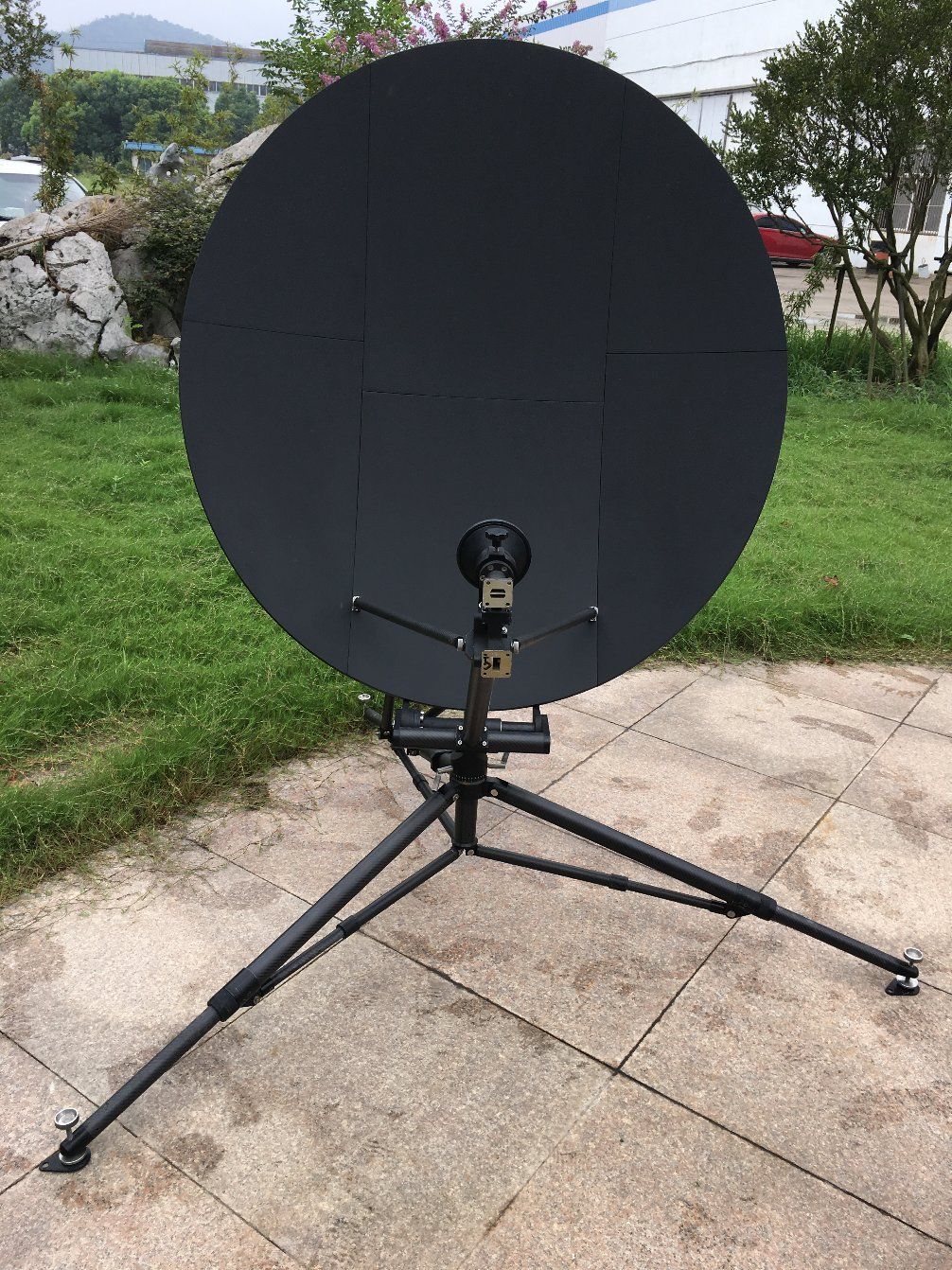

1.2m Full Carbon Fiber Flyaway Antenna
Features:6 carbon fiber panels
High gain and excellent sidelobe performance
5 Minutes Setup
Easy & fast fine elevation adjustment
Full carbon fiber tripod mount
Approvals or Compliance:ASIASAT
APT
CHINA SATCOM
SINOSAT
INTELSAT
EUTELSAT
Main parts:Feed horn
OMT & Filter
Panels
Back structure
Tripod mount
Options:Air case
Amplifier Holder
Customized available
| R.F SPECIFICATIONS | C-Band | Ku-Band | |
| RECEIVE | TRANSMIT | RECEIVE | TRANSMIT | |
| 1. Frequency(GHz) | 3.625-4.2 | 5.85-6.425 | 12.25-12.75 | 14-14.5 | |
| | 3.4-4.2 ★ | 5.85-6.725 ★ | 10.95-12.75 ★ | 13.75-14.5 ★ | |
| 2. Typical Gain(dBi) | 32.03 at 3.8GHz | 35.67 at 6.0GHz | 42.05 at 12.5GHz | 42.84 at 14.25GHz | |
| 3. VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | |
| 4. Beamwidth (-3dB) | 4.113° | 2.703° | 1.297° | 1.185° | |
| 5. Antenna Noise Temperature(K) | 2 Port Feed | | 2 Port Feed |
| |
| 10°Elevation | 38K | 44K | |
| 20°Elevation | 31K | 39K | |
| 40°Elevation | 25K | 35K | |
| 6. Typical G/T at 20°EL | 14.18dB/K (3.8GHz,30K LNA) | 21.68dB/K (12.5GHz, 70K LNA) | |
| 7. Power Handling Capability | | 5KW/Port | | 1KW/Port | |
| 8. Feed Interface | CPR-229 | CPR-137 | WR-75 | WR-75 | |
| 9. Feed Insertion Loss | 0.2dB | 0.15dB | 0.25dB | 0.2dB | |
| 10. Tx to Rx Isolation | ≥85dB | ≥85dB | |
| 11. Cross Pol Isolation | | | | | |
| On Axis | ≥35dB | ≥35dB | |
| 12. Sidelobes | CCIR.580-6 | CCIR.580-6 | |
| MECHANICAL SPECIFICATION | ENVIRONMENTAL SPECIFICATION |
| 1. Antenna Type | Offset | 1. Wind Loading | ≤34mph(54km/h) |
| 2. Drive Type | Manual | | |
| 3. AZ Travel | 0 to 360° | 2. Ambient Temperature | -40°C to 60°C |
| 4. EL Travel | 20° to 85° | 3. Rain | 100mm/h |
| 5. POL Travel | ±90° | 4. Relative Humidity | 0 to 100% |
| 6. Reflector Material | Carbon fiber | 5. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2) |
| 7. Reflector Segments | 6 | 6. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts |
| 8. Mount Type | Tripod | | |
| 9. Surface Accuracy | 0.3mm(R.M.S) | | |
| Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
