1.2m Offset Rx Only Dish Antenna
| Price: |
US $ 10-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HXWJp1.2m |
| Size: |
1.2m |
| Polarization: |
Linear/Circular |
| Drive Type: |
Manual |
| Color: |
White |
| Warranty: |
1 Year |
| Enterprise Nature: |
Manufacturer |
| Customized: |
Available |
| Certificate: |
ISO9001 |
| Market: |
Global |
| Logo: |
HUAXIN/Customized |
| Material: |
Al |
| Usage: |
Rx Only Antenna |
| Usage Occasion: |
Fixed Earth Station Antenna |
| Operating Wavelength: |
C-Band, Ku-Band |
| Sturcture Form: |
Pole Mount |
Product Description

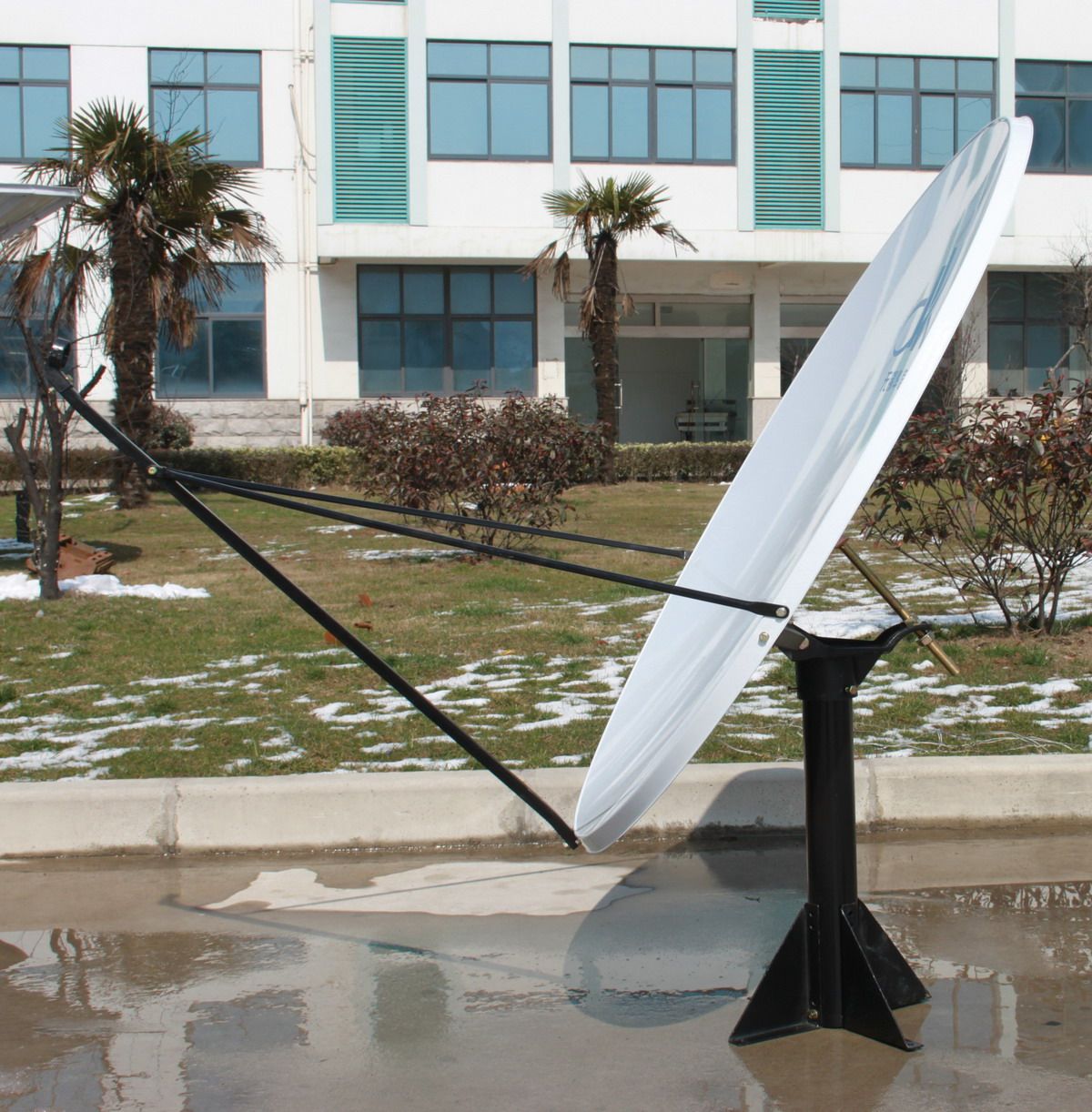

1.2m Offset Rx Only Antenna
Features:Aluminum reflector with high precisionFashionable design, easy installation and adjustmentFactory king post pedestal assembled to reduce installation timeExcellent in stability Main parts: PanelBack structurePole mountFoundation kit Options:Dual linear polarization / dual circular polarizationNon-penetrating mountSpecial anti-corrosion treatment for steel structureCustomized availableSpecification of 1.2m Offset Rx Only Antenna| R.F SPECIFICATIONS | C-Band | Ku-Band |
| RECEIVE | RECEIVE |
| 1. Frequency(GHz) | 3.625-4.2 | 12.25-12.75 |
| | 3.4-4.2 ★ | 10.95-12.75 ★ |
| 2. Typical Gain(dBi) | 32.03 at 3.8GHz | 42.05 at 12.5GHz |
| 3. VSWR | 1.3:1 | 1.3:1 |
| 4. Beamwidth (-3dB) | 4.113° | 1.297° |
| 5. Antenna Noise Temperature(K) | 1/2Port Feed | 1/2Port Feed |
| 10°Elevation | 39K | 44K |
| 20°Elevation | 34K | 39K |
| 40°Elevation | 30K | 35K |
| 6. Typical G/T at 20°EL | 13.97dB/K(3.8GHz, 30K LNA) | 21.68dB/K(12.5GHz, 70K LNA) |
| 7. Feed Interface | CPR-229 | WR-75 |
| 8. Feed Insertion Loss | 0.15dB | 0.2dB |
| 9. Cross Pol Isolation | | |
| On Axis | ≥30dB | ≥30dB |
| 10. Sidelobes | CCIR.580-6 | CCIR.580-6 |
| MECHANICAL SPECIFICATION | ENVIRONMENTAL SPECIFICATION |
| 1. Antenna Type | Offset | 1. Wind Loading, Operational (Maintain Precision) | 45mph(72km/h) |
| 2. Drive Type | Manual | 2. Wind Loading, Operational (Decrease Precision) | 60mph(97km/h) |
| 3. AZ Travel | 0 to 360° | 3. Wind Loading, Survival (Fixed Heavenward) | 125mph(200km/h) |
| 4. EL Travel | 10° to 90° | 4. Ambient Temperature | -40°C to 60°C |
| 5. POL Travel | ±90° | 5. Rain | 100mm/h |
| 6. Reflector Material | Precision formed aluminum | 6. Relative Humidity | 0 to 100% |
| 7. Reflector Segments | 1 | 7. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2) |
| 8. Mount Type | Pole mount | 8. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts |
| | | 9. Shock and Vibration | As encountered during shipment by commercial air, sea or truck |
| Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
| | | | | |
