Anji Huacheng Electrics Co., Ltd. >> 1.2mm Thick Metal Base Electrical Distribution Box

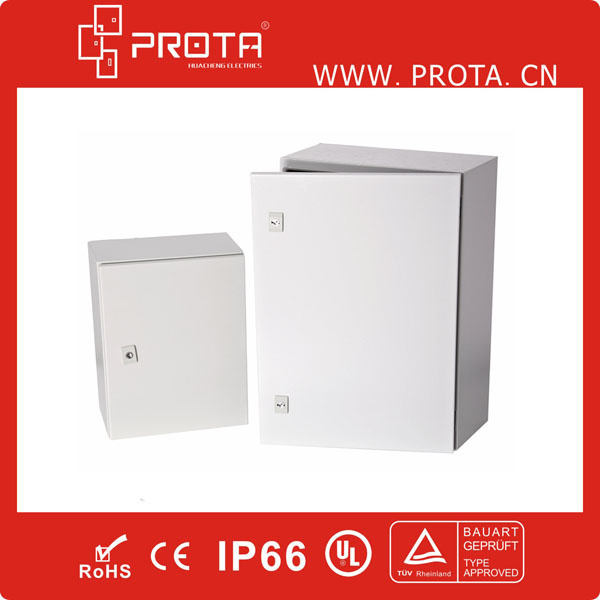

1.2mm Thick Metal Base Electrical Distribution Box

1.2mm Thick Metal Base Electrical Distribution Box
Price: US $ 6-200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: PT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Cold-Rolled Sheet Steel
Color: Ral 7032/Ral 7035/Customize
Thickness: 1.2mm&1.5mm
Surface Finish: Epoxy Thermosetting Powder Coating
Type: Distribution Metering Box
Structure: Protection
Certification: ISO9001:2008
Application Range: Electrical Distribution
Shell Protection Grade: IP66
Brand: Prota

Product Description

Material:
Cold rolled sheet steel
Thickness:

body and door : 1.2mm, mounting plate 1.5mm(the enclosure is less than 800mm high)

body and door: 1.5mm, mounting plate 2.0mm(the enclosure is over 800mm high)

Surface:
Epoxy thermosetting powder coating, textured finish
Color:RAL7032, RAL7035 or on customer's request
Protection level:  IP66

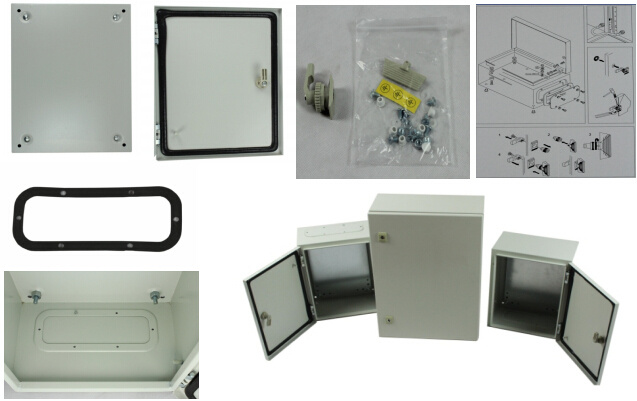

Standard configuration:

enclosure with gland hole, Door with foam PU sealing gasket and lock system, mounting plate, gland plate, gland sealing gasket and fixing accessories.







PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.

We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
