| Prod Model: |
MS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
0.25 - 7.5kw |
| Voltage: |
220/380/400/440/660V |
| Phase: |
3 |
| Prptection Class: |
IP54 |
| Insulation Grade: |
F |
| Frame Material: |
Aluminum |
| Mounting Position: |
B3/B5/B35/B14/B34 |
| Continuous Working Duty: |
S1 |
| Winding Protections: |
PTC, PT100 and Kty84-130 as Option |
| Warranty: |
12 Months |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
YS Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Certification: |
CE |
Product Description

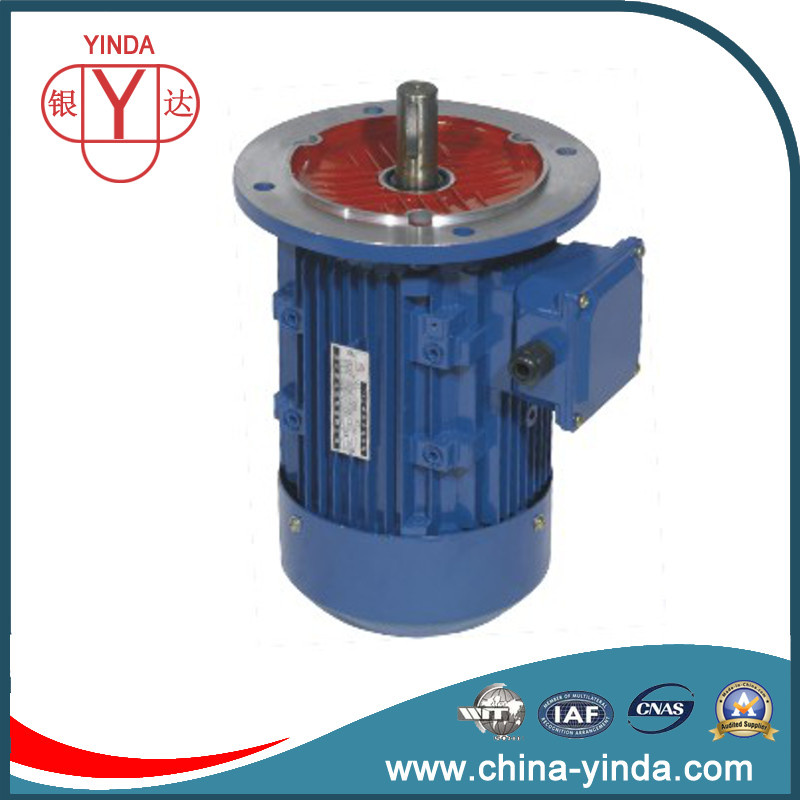

IE2 TEFC -IP54 Aluminum Frame Three-Phase Geared Motor( Electric Motor, ElectroMotor, Motor, induction motor, Electrical Motor, Asynchronous Motor)
Standard features:Rated power output: 25W~7.5kW at 380V/50Hz.
Frame Material : Cast Aluminum
Standard Color: Gentian blue (RAL 5010)
Mounting type: B3/B5/B35/B14/B34
Totally Enclosed Fan Cooled TEFC (IP55)
Squirrel cage rotor/Aluminium die cast
Continous duty: S1
Class "F" insulation
Voltage: 380V
Optical features:Special voltages and Frequency
Double shaft end
Winding protections with PTC, PT100 and KTY84-130 as option
Applications:Fans, pumps, pulleys, cranes,
Conveyor belts, mills, grinders,
Crushers, drilling machinery, blowers, compressors,
Food processing machines etc.

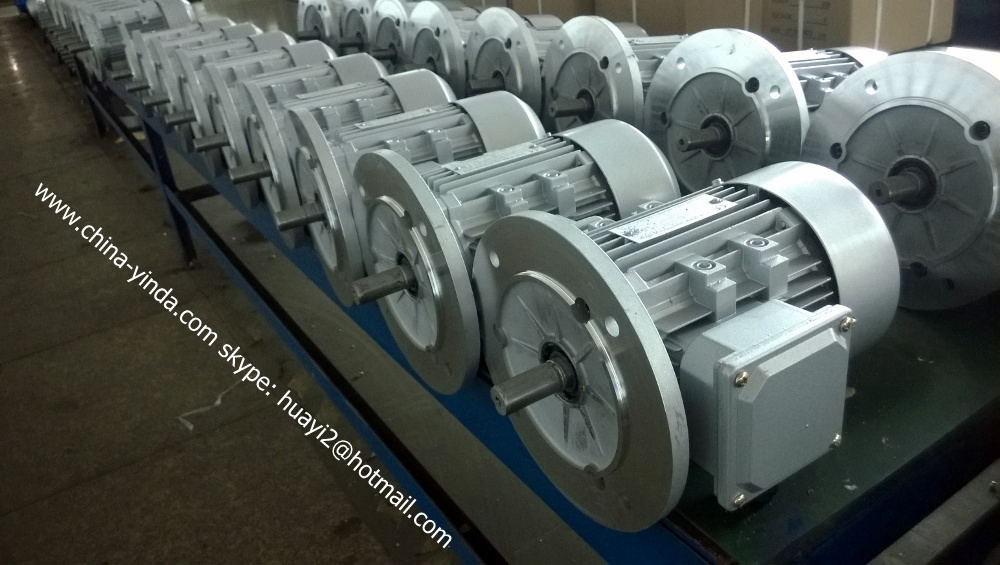

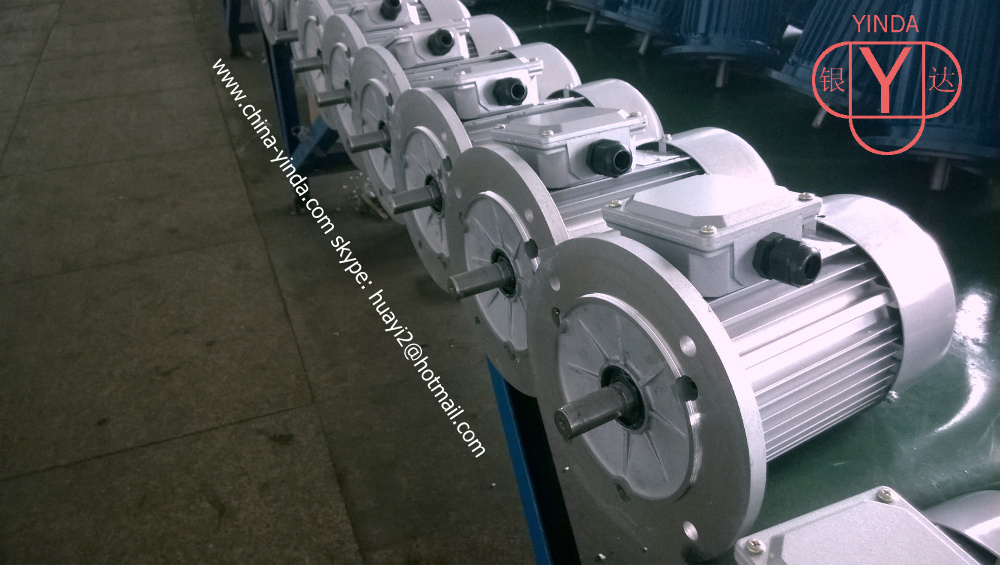

Photos:
Technical data| Type | Rated Output | Voltage | Frequency | Speed | Efficiency | Power factor | In | Is | Ts | Tmax | Nosie |
| Kw | HP | V | Hz | r/min | % | CosΦ | A | In | Tn | Tn | Lw dB(A) |
| MS-631-2 | 0.18 | 0.3 | 380 | 50 | 2800 | 65 | 0.8 | 0.5 | 6 | 2.2 | 2.2 | 61 |
| MS-632-2 | 0.25 | 0.3 | 380 | 50 | 2800 | 68 | 0.81 | 0.7 | 6 | 2.2 | 2.2 | 61 |
| MS-711-2 | 0.37 | 0.1 | 380 | 50 | 2800 | 70 | 0.81 | 1 | 6 | 2.2 | 2.2 | 64 |
| MS-712-2 | 0.55 | 0.8 | 380 | 50 | 2800 | 73 | 0.82 | 1.4 | 6 | 2.2 | 2.3 | 64 |
| MS-801-2 | 0.75 | 1 | 380 | 50 | 2825 | 75 | 0.83 | 1.8 | 6 | 2.2 | 2.3 | 67 |
| MS-802-2 | 1.1 | 1.5 | 380 | 50 | 2825 | 76.2 | 0.84 | 2.6 | 7 | 2.2 | 2.3 | 67 |
| MS-90S-2 | 1.5 | 2 | 380 | 50 | 2840 | 78.5 | 0.84 | 3.34 | 7 | 2.2 | 2.3 | 72 |
| MS-90L-2 | 2.2 | 3 | 380 | 50 | 2840 | 81 | 0.85 | 4.69 | 7 | 2.2 | 2.3 | 72 |
| MS-100L-2 | 3 | 4 | 380 | 50 | 2880 | 82.6 | 0.87 | 6.14 | 8 | 2.2 | 2.3 | 76 |
| MS-112M-2 | 4 | 5.5 | 380 | 50 | 2890 | 84.2 | 0.88 | 7.83 | 8 | 2.2 | 2.3 | 77 |
| MS-132S1-2 | 5.5 | 7.5 | 380 | 50 | 2900 | 85.7 | 0.88 | 10.7 | 8 | 2.2 | 2.3 | 80 |
| MS-132S2-2 | 7.5 | 10 | 380 | 50 | 2900 | 87 | 0.88 | 14.2 | 8 | 2.2 | 2.3 | 80 |
| MS-631-4 | 0.12 | 0.2 | 380 | 50 | 1400 | 57 | 0.72 | 0.4 | 4 | 2.1 | 2.2 | 52 |
| MS-632-4 | 0.18 | 0.3 | 380 | 50 | 1400 | 60 | 0.73 | 0.6 | 4 | 2.1 | 2.2 | 52 |
| MS-711-4 | 0.25 | 0.3 | 380 | 50 | 1400 | 65 | 0.74 | 0.8 | 5 | 2.1 | 2.2 | 55 |
| MS-712-4 | 0.37 | 0.5 | 380 | 50 | 1400 | 67 | 0.75 | 1.1 | 5 | 2.1 | 2.2 | 55 |
| MS-801-4 | 0.55 | 0.8 | 380 | 50 | 1390 | 71 | 0.75 | 1.6 | 5 | 2.4 | 2.3 | 58 |
| MS-802-4 | 0.75 | 1 | 380 | 50 | 1390 | 73 | 0.76 | 2 | 6 | 2.3 | 2.3 | 58 |
| MS-90S-4 | 1.1 | 1.5 | 380 | 50 | 1400 | 76.2 | 0.77 | 2.8 | 6 | 2.3 | 2.3 | 61 |
| MS-90L-4 | 1.5 | 2 | 380 | 50 | 1400 | 78.5 | 0.79 | 3.65 | 6 | 2.3 | 2.3 | 61 |
| MS-100L1-4 | 2.2 | 3 | 380 | 50 | 1420 | 81 | 0.81 | 5.05 | 7 | 2.3 | 2.3 | 64 |
| MS-100L2-4 | 3 | 4 | 380 | 50 | 1420 | 82.6 | 0.82 | 6.64 | 7 | 2.3 | 2.3 | 64 |
| MS-112M-4 | 4 | 5.5 | 380 | 50 | 1440 | 84.2 | 0.82 | 8.62 | 7 | 2.3 | 2.3 | 65 |
| MS-132S-4 | 5.5 | 7.5 | 380 | 50 | 1440 | 85.7 | 0.83 | 11.5 | 7 | 2.3 | 2.3 | 71 |
| MS-132M-4 | 7.5 | 10 | 380 | 50 | 1440 | 87 | 0.84 | 15.3 | 7 | 2.3 | 2.3 | 71 |
| MS-711-6 | 0.18 | 0.3 | 380 | 50 | 900 | 56 | 0.66 | 0.8 | 4 | 1.9 | 2 | 52 |
| MS-712-6 | 0.25 | 0.3 | 380 | 50 | 900 | 59 | 0.68 | 0.9 | 4 | 1.9 | 2 | 52 |
| MS-801-6 | 0.37 | 0.5 | 380 | 50 | 900 | 62 | 0.7 | 1.3 | 5 | 1.9 | 2 | 54 |
| MS-802-6 | 0.55 | 0.8 | 380 | 50 | 900 | 65 | 0.72 | 1.8 | 5 | 1.9 | 2.1 | 54 |
| MS-90S-6 | 0.75 | 1 | 380 | 50 | 910 | 69 | 0.72 | 2.3 | 6 | 2 | 2.1 | 57 |
| MS-90L-6 | 1.1 | 1.5 | 380 | 50 | 910 | 72 | 0.73 | 3.2 | 6 | 2 | 2.1 | 57 |
| MS-100L-6 | 1.5 | 2 | 380 | 50 | 940 | 76 | 0.75 | 3.9 | 6 | 2 | 2.1 | 61 |
| MS-112M-6 | 2.2 | 3 | 380 | 50 | 940 | 79 | 0.76 | 5.6 | 7 | 2 | 2.1 | 65 |
| MS-132S-6 | 3 | 4 | 380 | 50 | 960 | 81 | 0.76 | 7.4 | 7 | 2.1 | 2.1 | 69 |
| MS-132M1-6 | 4 | 5.5 | 380 | 50 | 960 | 82 | 0.76 | 9.9 | 7 | 2.1 | 2.1 | 69 |
| MS-132M2-6 | 5.5 | 7.5 | 380 | 50 | 960 | 84 | 0.77 | 12.9 | 7 | 2.1 | 2.1 | 69 |
| MS-801-8 | 0.18 | 0.3 | 380 | 50 | 690 | 51 | 0.61 | 0.9 | 3 | 1.8 | 1.9 | 52 |
| MS-802-8 | 0.25 | 0.3 | 380 | 50 | 690 | 54 | 0.61 | 1.2 | 3 | 1.8 | 1.9 | 52 |
| MS-90S-8 | 0.37 | 0.5 | 380 | 50 | 690 | 62 | 0.61 | 1.5 | 4 | 1.8 | 1.9 | 56 |
| MS-90L-8 | 0.55 | 0.8 | 380 | 50 | 690 | 63 | 0.61 | 2.2 | 4 | 1.8 | 2 | 56 |
| MS-100L1-8 | 0.75 | 1 | 380 | 50 | 700 | 71 | 0.67 | 2.4 | 4 | 1.8 | 2 | 59 |
| MS-100L2-8 | 1.1 | 1.5 | 380 | 50 | 700 | 73 | 0.69 | 3.3 | 5 | 1.8 | 2 | 59 |
| MS-112M-8 | 1.5 | 2 | 380 | 50 | 700 | 75 | 0.69 | 4.4 | 5 | 1.8 | 2 | 61 |
| MS-132S-8 | 2.2 | 3 | 380 | 50 | 710 | 78 | 0.71 | 6 | 6 | 1.8 | 2 | 64 |
| MS-132M-8 | 3 | 4 | 380 | 50 | 710 | 79 | 0.73 | 7.9 | 6 | 1.8 | 2 | 64 |
Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.
Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.
Our products:
1. Electric Motors:
Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL
Three-phase Electric motor, IE3, IE2
Three-Phase double speed motor, YD series
Electromagnetic Brake AC Motor YEJ/Y2EJ series
Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series
Custom motors are available.
2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine
3. Welding Machines:
MMA inverter Welding, ZX7 series
TIG Welding
MIG Welding
BX1 series AC Arc Welding
Bx6 Series AC Arc Welding
Bx6 series stainless body welding
Bx series wooden leg welding
