1/3/5/10 Meters Sc/LC/FC/St Jumper Singlemode Simplex FC/PC Patch Cord

Name: 1/3/5/10 Meters Sc/LC/FC/St Jumper Singlemode Simplex FC/PC Patch Cord
Brand: all-electronics-online.com
SKU: 720044772
Availability: InStock
Rating: 4.8 (32 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	patch cord
Connector Type:	Sc/LC/St/FC/E2000/MTRJ/Mu/SMA
Jacket:	PVC/LSZH
Cable Length:	1/12/3/5/10/20m or Customization
Fiber Counts:	Simplex,Duplex
Ferrule End Face:	PC/Upc,APC
Free Sample:	Yes
Customized:	Available
OEM:	Available
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	FC
Certification:	CCC

Product Description

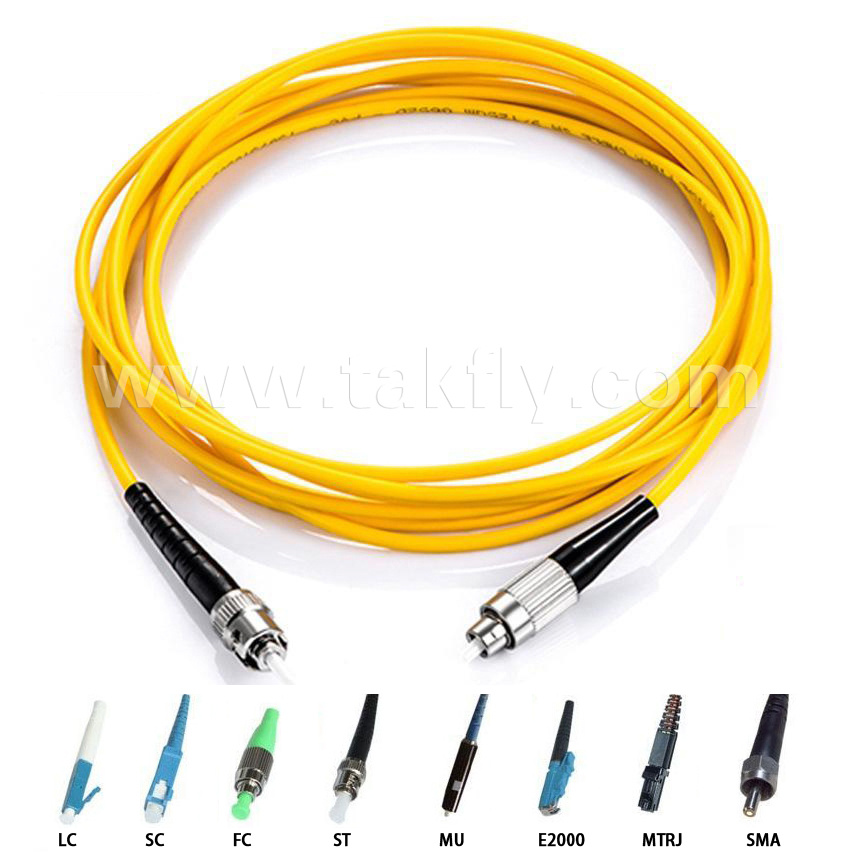

1/3/5/10 meters SC/LC/FC/ST Jumper singlemode Simplex FC/PC patch cord

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features:
(1) Ceramic Ferrule;
(2) High return loss;
(3) Low insertion loss;
(4) Good repeatability and and exchangeability;
(5) Excellent Polished and 100% tested;
(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV

Performance Index

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	G652/G657A1/G6572			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (ºC)	-40~+80
