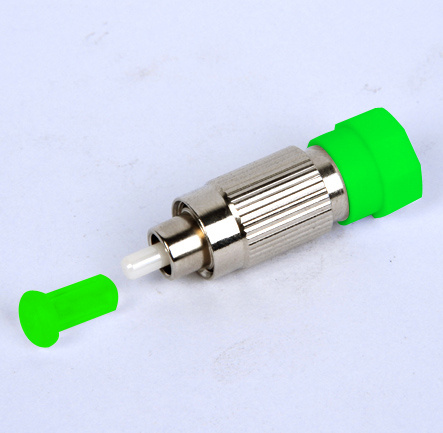

1~30dB FC/APC Singlemode Fiber Optic Attenuator

1~30dB FC/APC Singlemode Fiber Optic Attenuator
Price: US $ 1.12-2.42/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Attenuator
Operating Wavelength: 1310-1550nm
Attenuation Range: 0-30dB
Return Loss: Upc:55dB APC:65dB
Polishing: Upc,APC
Model: Sc,LC,FC,St,Mu
Material: Plastic, Metal
Fiber Type: Singlemode,Multimode
Warranty: 3 Years
Transmission Medium: Single-Mode
Structure: FC
Number Of Cores: Single-Core
Ferrule Endface: APC
Shape: FC Fiber Attenuator
Fabrication Process: Polishing
Light Source TYPE: Fiber Optic Attenuator
Brand: Takfly

Product Description

1~30dB FC/APC Singlemode Fiber Optic Attenuator




Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is often used to limit the optical power received by the photodetector to within the limits of the optical receiver.

Specifications
3db lc fiber optic attenuator
attenuation fiber inside
0dB - 30dB attenution
SC,LC,FC,ST,MU Optional
fiber optic attenuator

Features
Based on IEC 60869
Environmentally Stable and Reliable
Accurate Size
High Directivity
Excellent Return Loss
Technical Standard:
Return Loss UPC ≥55 dB APC ≥65 dB
Repeatability1000 times≤ 0.2dB
 Attenuation & Tolerance:
1~10 dB: precision ≤ ± 0.5dB
11~15 dB: precision ≤ ± 0.75dB
15dB or more: precision ≤ ± 1.0dB
Temperature Range -40 to +85°C
Wave length: 1,310, 1,550, 1,310/1,550nm
Fixed/adjustable
Hybrid (or female-male)
Attenuation levels ranging from 1dB to 30dB, with standard and premium tolerances,
plus custom configurations


Item
UnitParameter
Operating WavelengthNm1310/1550
Attenuation RangedB0~30
Return LossdBUPC: ≥50
Attenuation TolerancedB≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Working Temperature ºC-25ºC~+75ºC
Storage TemperatureºC-40ºC~+ 85ºC
