1-30dB Sc Fiber Optic Attenuator Optical Attenuators

Name: 1-30dB Sc Fiber Optic Attenuator Optical Attenuators
Brand: all-electronics-online.com
SKU: 711428932
Availability: InStock
Rating: 4.5 (91 reviews)

Price:	US $ 2.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	attenuator
Model No:	Attenuator
Product Name:	Sc Attenuator
Allowed Lateral Pressure:	100(N/100mm)
Allowed Tensile Strength:	100n<1000n
Core:	Single Core
Connection Structure:	Sc/Upc or Sc/APC
Place Of Origin:	Shenzhen of China
Bandwidth:	1250~1650nm
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)

Product Description

1-30db fiber optic attenuator SC attenuator/sc/apc optical attenuators

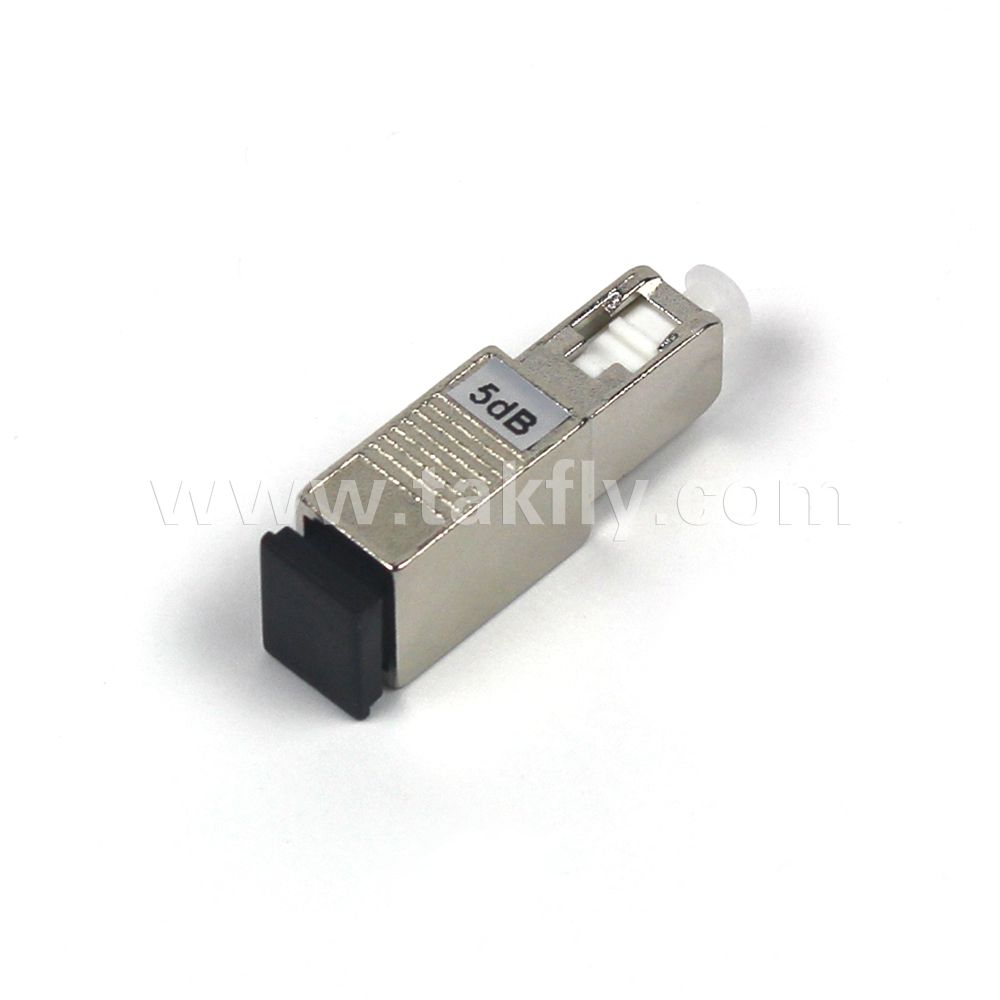

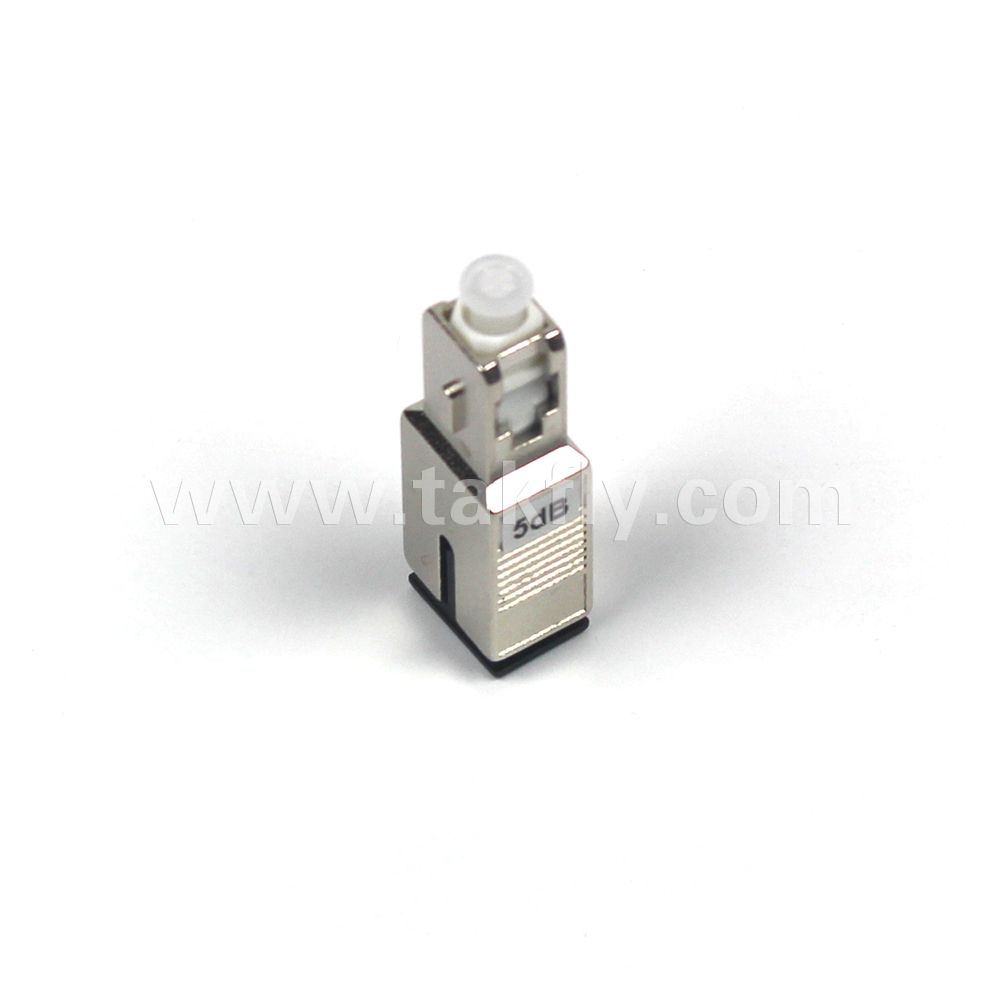

Plug-in type fixed sc attenuator is attached to a connector at one end and connects an adapter at the other end
lts attenuation is fixed, unadjustable.

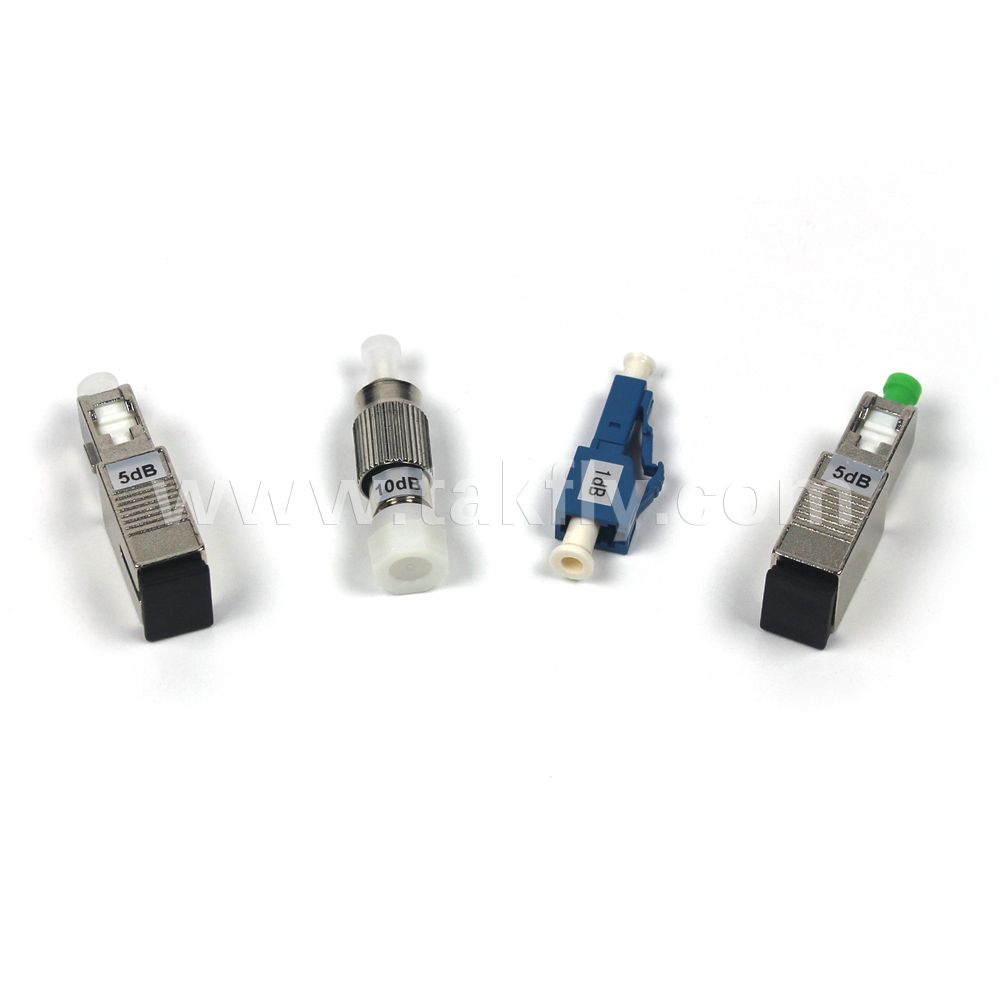

This fixed attenuator is mainly used to reduce optical power to target value in optical links lt comes in different types

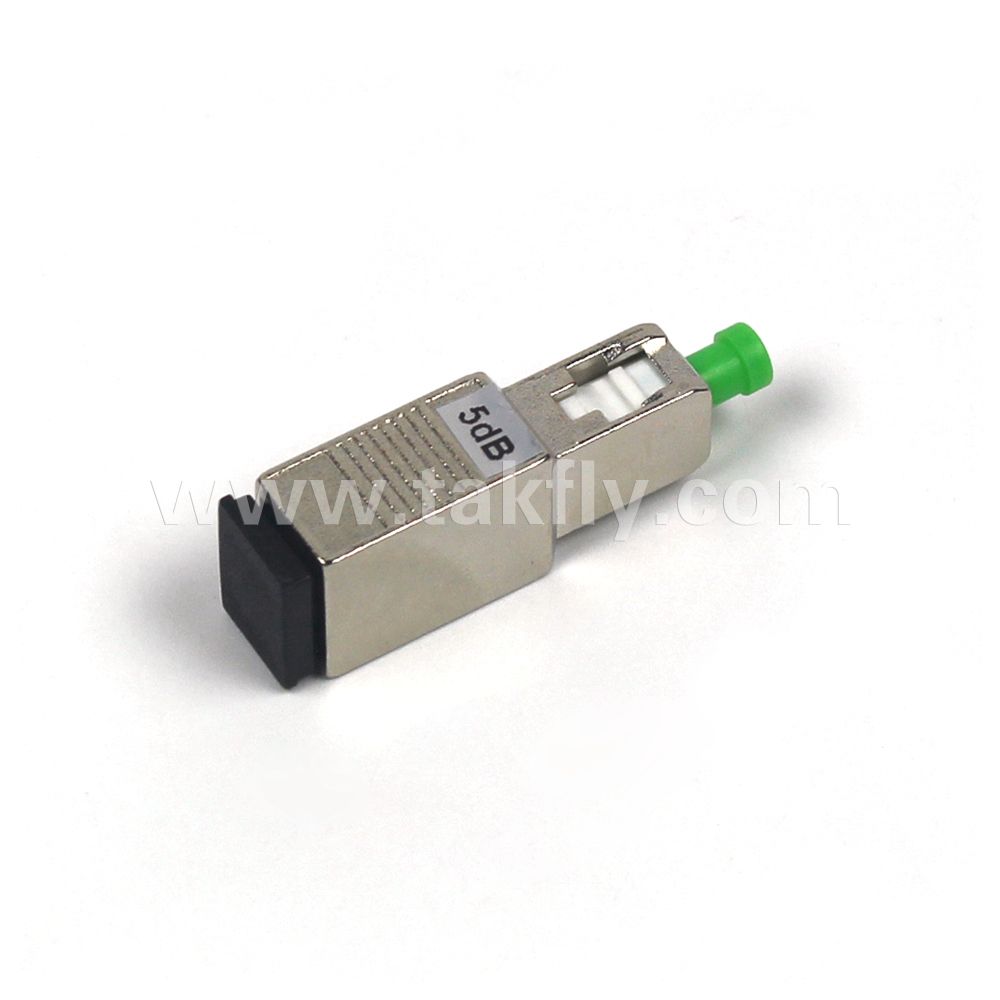

including SC,LC,FC,ST and MU Based on the shape of ferrule shape it can also be classified as PC and APC with
8 degrees type The products attenuation is in range of 0 to 30dB,which are all applicable for optical signal with
wavelength ranging from 1,250nm to1,600nm.

Feature
1.High quality ceramic ferrule
2.Excellent IL and high return loss
3.Good exchangeability and durability
4.High temperature stability
5.All parts compliant with ROHS
6.Aompliant with Telcordia-GR-910-CORE.

Applications
1.Active device termination
2.Test equipment
3.Passive optical fiber network
4.Data processing network
5.Telecommunication network
6.CATV, LAN, WAN

Advantages:
Bellcore compliant
Wavelenght Independent
Durability(well over 100nw)
Simplex and reliable structure
Environmentally stable

SPECIFICATIONS

ITEM	Parameter
	Single-mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Bandwidth	1250~1650nm
Insertion Loss range	0~30dB
Attenuation tolerance value	0~5dB,±0.5dB
	5~30dB,±10%
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB typical change,1000 mating
Optical power endurance	≤200mW
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

For further information,please don't hesitate to contact me!
