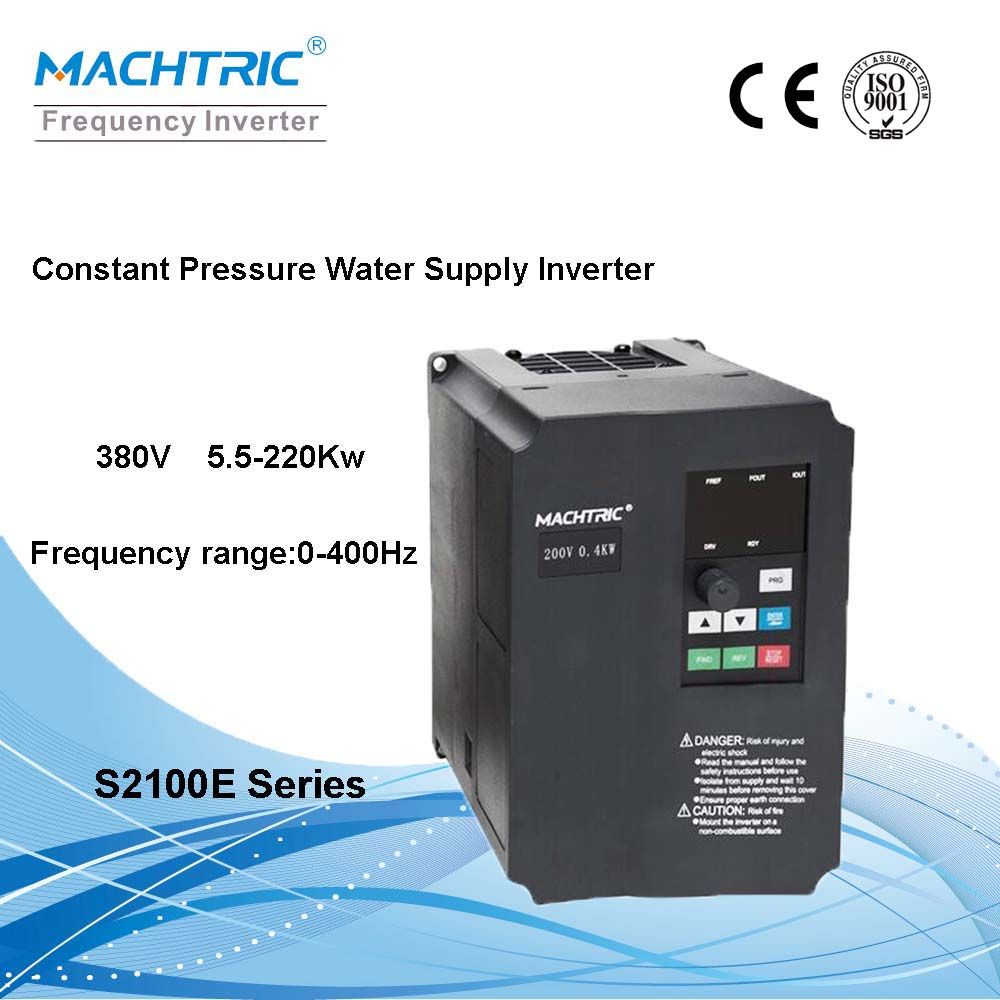

1/3phase 380V 5.5kw Variable Frequency Drive 400Hz with Wall Mounted
| Price: |
US $ 75/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S2100E |
| Product Name: |
1/3phase 380V 5.5kw Variable Frequency Drive 400Hz |
| Input Voltage Range: |
330-440V |
| Output Voltage Range: |
0-Rated Input Voltage |
| Output Frequency Range: |
0.1-400Hz |
| Control Mode: |
Sensorless Vector Control;V/F Control |
| Certificate: |
Ce;ISO9001 |
| Pid Control Function: |
Built in |
| Protection: |
IP20 |
| Altitude: |
Lower Than 1000m |
| Power Range: |
380V 5.5-220kw |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
1/3phase 380V 5.5kw Variable Frequency Drive 400Hz with Wall Mounted
Product description
| | Items | S2100 E |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz Single-phase 220V 50/60Hz |
| Voltage Range | 380V:330V~440V; 220V:170V~240V |
| Output | Voltage Range | 380V:0~380V; 220V:0~220V |
| Frequency Range | 0.10`400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: e.g., frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional Input
Terminal | Eight multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 3 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration time Setting | 0~-6000s acceleration/deceleration time can be set individually |
| Other Functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;
Digital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Eight multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
Protection/
Warning Function | Overload | 150%,60 second(Constant torque);120%.60 second (variable torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| Environment | Ambient Temperature | -10°C to 40°C(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Below 90KW:Wall Mounted;
110~200KW:Wall Mounted or in Cabinet;
Above 220KW:in Cabinet |
Application
| paper machinery | screw output device |
| drawing equipment | dyeing plant |
| injection plastic equipment | air conditioning system |
| machine tool equipment | boiler system |
| chemical fiber equipment | water supply |
| oil transportation installation | textile equipment Etc |
Why Choose us?
20 years experience at produce frequency inverter
10 years OEM experience for customers
Products sold for more than 40 countries
After-sales responding within 24 hours
One to one pre-sales consulting services
Factory located in Shanghai, with high-tech professional engineer teams.
