1-4 Fiber Single-Mode Single-Armored Multi-Core Tight Buffer Indoor Cable

Name: 1-4 Fiber Single-Mode Single-Armored Multi-Core Tight Buffer Indoor Cable
Brand: all-electronics-online.com
SKU: 784814575
Availability: InStock
Rating: 4.8 (31 reviews)

Price:	US $ 0.3-0.4/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	6000/Meter
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	indoor fiber cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Indoor Fiber Cable
Fiber Range:	2-24
Fiber Count:	2
Fiber Type:	Sm/mm
Jacket:	LSZH/PVC
Color:	Black Yellow White Blue
Cable Application:	Cabling System
Cable Certification:	Ce RoHS ISO9001
Connector:	LC Sc FC St
Length:	3km/4km/5km
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Sheath Material:	LSZH
Brand:	ADP

Product Description

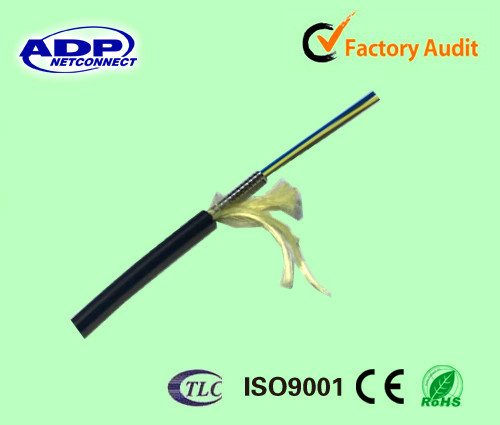

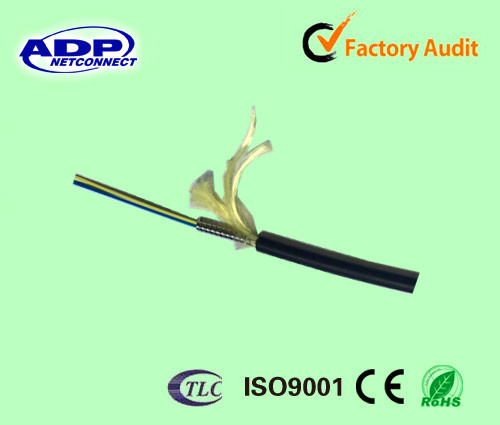

1-4 Fiber Single-mode Single-Armored Multi-core Tight Buffer Indoor Cable

Description

Indoor armoured optical fiber cable which is layer with a spiral steel tube to protect the fiber from aninmal bite,it is rodent cable,Anti-Termite cable.it is with hith strength tensile and good performance.it is well received by china mobile.when the common indoor optical fiber cable was bit by the rodent and inflenct the nework,the armoured fiber optical cable can still work well!!!

Featues

1.Mouseproof/ rodent cable , Anti-Tensile,Anti-pressure,
2.Resistant Improper reverse bending damage,
3.Easy Construction,
4.Saving maintenance costs;
5.Adapt to harsh environments and man-made damage.

Application

1.Pigtails and patch cords
2.Connections of optical communication equipment rooms, distribution frames and FTTX
3.Optical appliances connection
4.Indoor horizontal or vertical cabling, multi-medium connection, LAN
5.Connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic
6.Telecommunication
7. CATV
8. Network
9. Broadband

Multi core indoor armored fiber optic cable

Date sheet 1)

Cable Count	ITEM	CABLE OD.mm(a)	S.S.T. OD.mm(b)	T.B.O.F. OD.mm(C)
4F	4.5MM	Φ4.5±0.2	Φ2.4±0.02	Φ0.5
6F	4.5MM	Φ4.5±0.2	Φ2.6±0.03	Φ0.5
8F	5.0MM	Φ5.0±0.2	Φ2.8±0.05	Φ0.5
10F	5.0MM	Φ5.0±0.25	Φ3.0±0.05	Φ0.5
12F	5.5MM	Φ5.5±0.25	Φ3.2±0.05	Φ0.5
24F	7.0MM	Φ7.0±0.3	Φ4.3±0.05	Φ0.5

Date sheet 2)

Cable Count	ITEM	CABLE OD. mm(a)	CABLE WEIGHT (kg)	MAXIMUM TENSILE		BEND RADIUS*		L.P. N/100mm
Cable Count	ITEM	CABLE OD. mm(a)	CABLE WEIGHT (kg)	S.T.	L.T.	Dyn.	Sta.	L.P. N/100mm
4F	4.5MM	Φ4.5±0.2	26.5	800	400	70	35	3000
6F	4.5MM	Φ4.5±0.2	38.5	1000	500	100	50	3000
8F	5.0MM	Φ5.0±0.2	33.0	1000	501	100	50	3000
10F	5.0MM	Φ5.0±0.25	36.0	1000	502	120	60	3000
12F	5.5MM	Φ5.5±0.25	39.0	1200	600	150	75	3000
24F	7.0MM	Φ7.0±0.3	54.0	1500	750	170	85	3000

General Attenuation	Singlemode(dB)	1310nm	≤0.35dB /km
		1550nm	≤0.25dB/km
	Multimode(dB)	850nm	≤3.0dB/km
		1300nm	≤1.0dB/km
Sheath material		PVC or LSZH

MS. Joan

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
