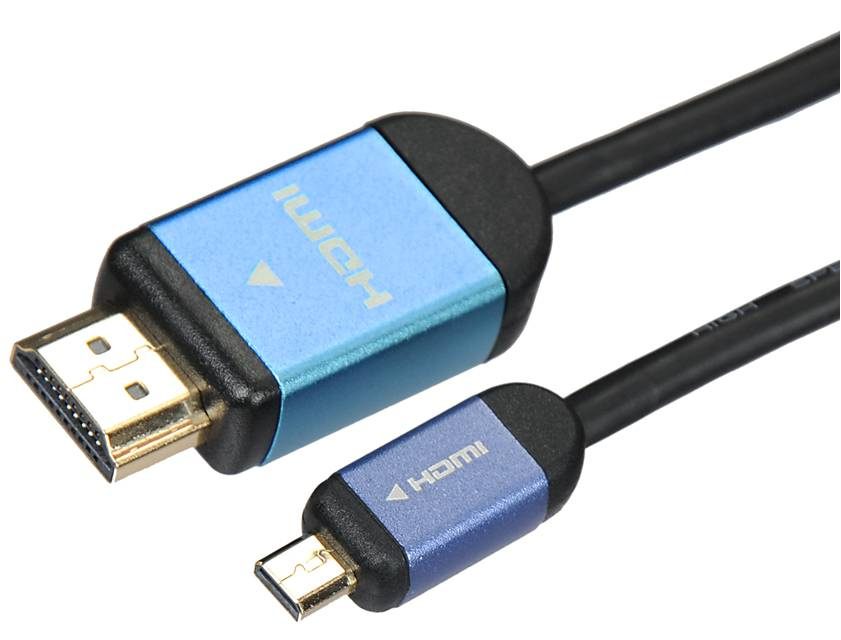

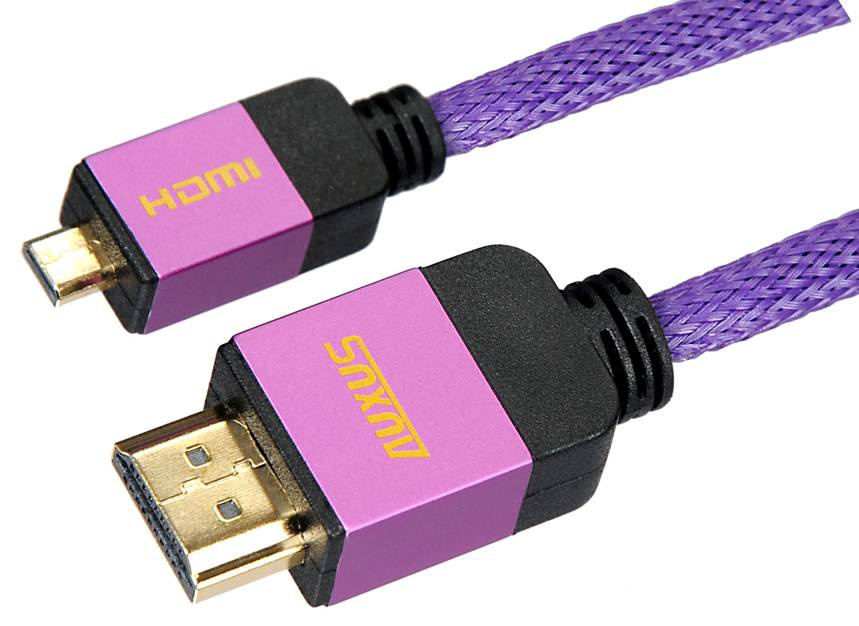

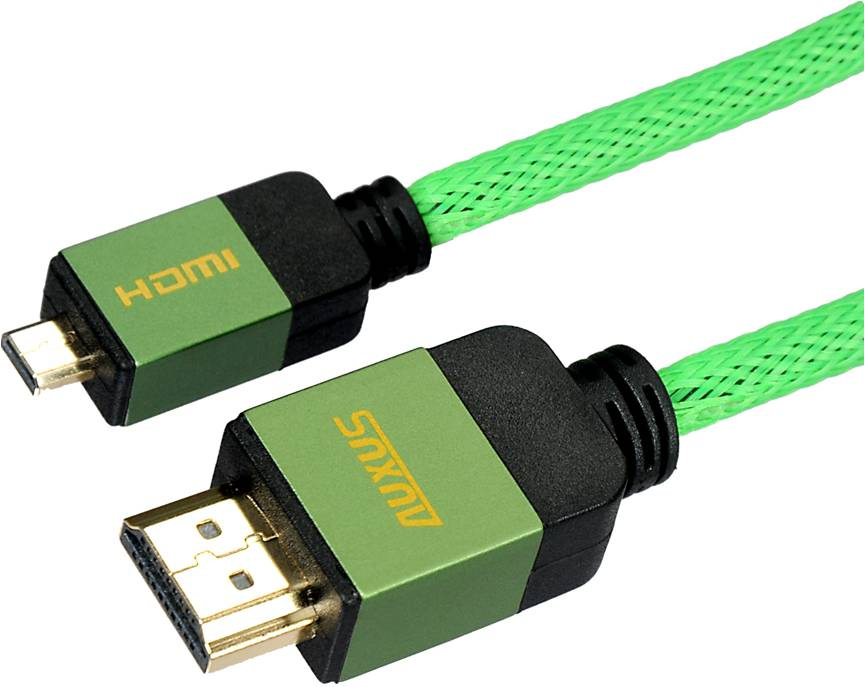

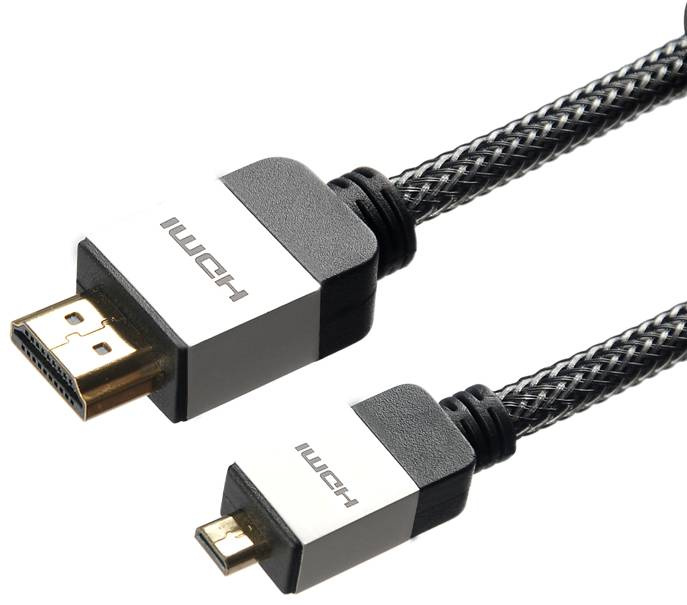

1.4V HDMI Micro to HDMI Cable

Name: 1.4V HDMI Micro to HDMI Cable
Brand: all-electronics-online.com
SKU: 721850825
Availability: InStock
Rating: 4.6 (112 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Submarine Cable
Conductor Material:	Copper
Type:	HDMI

Product Description

1.4V HDMI Micro to HDMI Cable, Micro HDMI Male (Type D) to HDMI "A" Male cable, High speed HDMI with Ethernet
HDMI Connectors: "A"/Micro "D"
Standard: High speed HDMI with Ethernet
Pass 1080P and HDMI ATC test
For connecting devices with HDMI type A connection to devices with HDMI type D (micro) socket
OEM and ODM orders are welcome

Physical:
Cable Length: 1.8m or Others Lengths available
Circuits (Loaded): 19
Gender: Male-Male
Lock to Mating Part: Yes
Material - Resin: Polyethylene, PVC
Pitch - Mating Interface: 0.40mm (. 016"), 1.00mm (. 039")
Single Ended: No
Wire Size AWG: 24 26 32 are available
Wire/Cable Type: Round

Feature & Benefits:
5, 000 mating cycles for receptacles
Friction lock on receptacle shell
Half the size of the current Mini HDMI receptacle
Meets durability requirements for mobile applications
Offers excellent retention force and tactile feel when mating
Prevents damage to PCB receptacle from over-insertion of the cable plug

Wire Specification:
UL20276 (32AWG*1P+Drain+FAM)*5PCS+32AWG*4C+Al-Foil+Braid, OD=5.0mm
Cable: Double-shielded oxygen free copper cable
Conductor: 99.99% oxygen free copper
Shielding Construction: Fully Shielded
Insulator: AL-Foiled shielding and foam polyethylene dielectric insulator
Outer Jacket: Black PVC, or Various of Colors Available
Connector: 24K gold-plated connectors with easy griped design
OD: 5.0mm

Electrical:
Cable Impedance: 100 ohms +- 15%
Propagation Delay (max. ): 2.42ns per cable

Mechanical:
Cable Flex: 100 cycles in each of two planes
Wrenching Strength: 0-20N (Plug or Receptacle)
(Mated Connectors) 20-40N (Receptacle)
Cable Pull-out Force (min. ): 40N

Excellent Performance:
- High-speed, bi-directional networking at up to 100 Mbps
- Supports HD resolutions beyond 1080p/4k and Deep Color
- Satisfy High Speed HDMI specification mechanical and electrical requirements
- Up to 10.2 Gbps at 340 MHz bandwidth

Application: Ideal for connecting your Devices to HD/Full HD LCD/Plasma Monitors and perfect for Digital HD/FullHD Videocameras.
