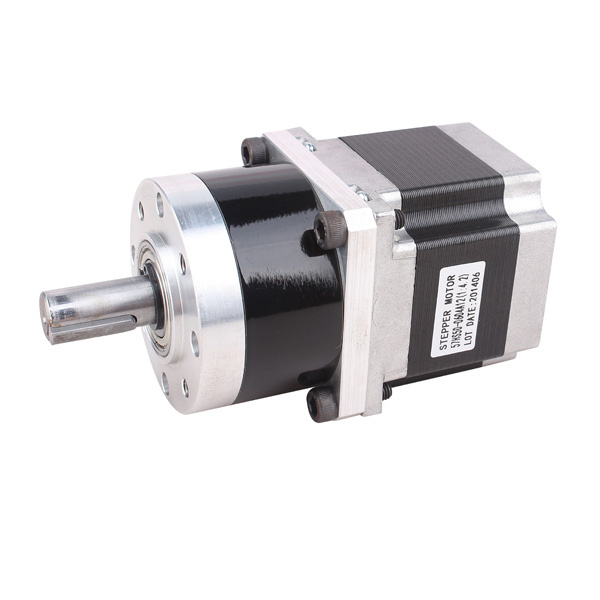

1.5A NEMA 23 Gearbox Stepper Motor with Gear Ratio 13: 1

Name: 1.5A NEMA 23 Gearbox Stepper Motor with Gear Ratio 13: 1
Brand: all-electronics-online.com
SKU: 750593785
Availability: InStock
Rating: 4.6 (87 reviews)

Price:	US $ 8-70/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	57HSG51-1504A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8
Frame Size:	57mm X 57mm
Current:	1.5A
Resistance:	1.6
Inductance:	4.2mh
Holding Torque:	8.2kg.Cm
Motor Body Length:	51mm
Lead Wires:	4
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Jss
Operate Mode:	Driver
Certification:	CE

Product Description

Description:

1. NEMA 23 geared stepper motor, high performance, low heat, low virbration, low noise.
2. Gear ratio can be different. You can choose the gear ratio you want.

Step Angle Accuracy: ± 5%
Resistance Accuracy: ± 10%
Inductance Accuracy: ± 20%
Temperature Rise: 80° C Max
Ambient Temperature: -20° C~+50° C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)
Shaft Axial Play: 0.08Max (450g-load)

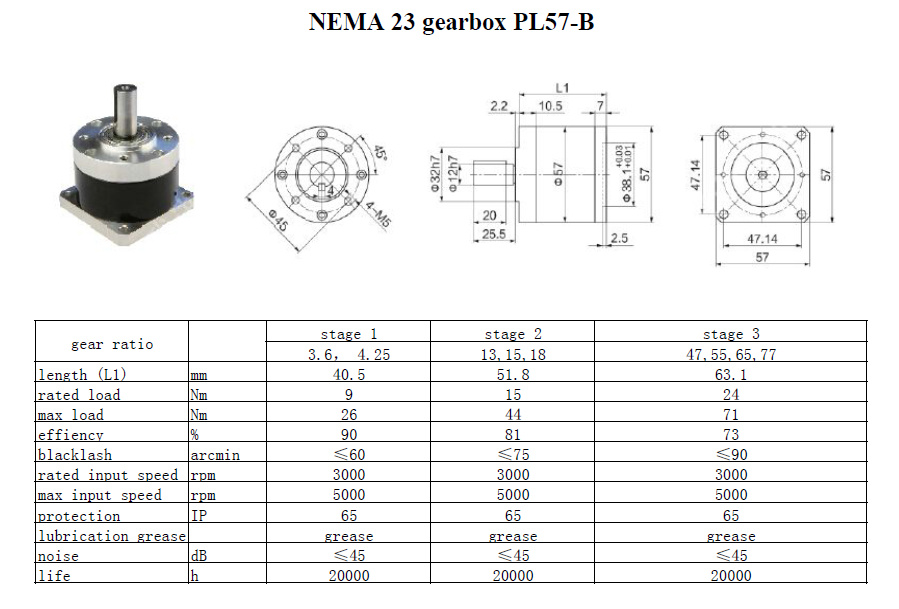

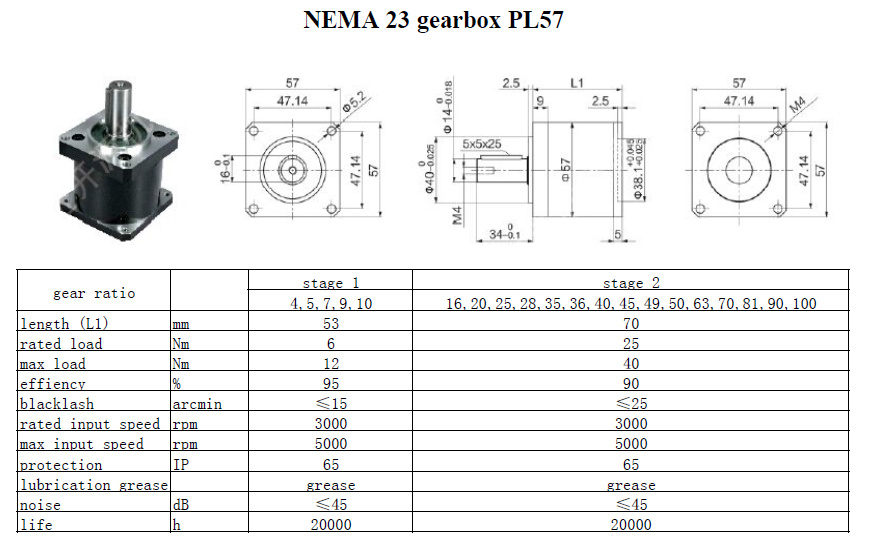

Gearbox data:

Application:
Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.

We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.

Nema 23 stepper motor data
TYEP	phase No.	step angle	current (A)	resistance(Ω±10)	inductance (mH±20)	holding torque (kg.cm)	length (mm)	wire No.
57HS41-1004	2	1.8	1	5.4	9.5	5.5	41	6
57HS51-1504	2	1.8	1.5	1.6	4.2	8.2	51	4
57HS51-1606	4	1.8	1.6	2.6	5	9	51	6
57HS56-1504	2	1.8	1.5	3.8	12	12	56	4
57HS56-2006	4	1.8	2	1.8	2.8	9	56	4
57HS56-2804	2	1.8	2.8	0.9	3	12.6	56	4
57HS64-2004	2	1.8	2	1	4	12	64	4
57HS76-1004	2	1.8	1	6	20	20	76	4
57HS76-1006	4	1.8	1	8.6	14	13.5	76	6
57HS76-2004	2	1.8	2	4.3	16.2	24	76	4
57HS76-2804	2	1.8	2.8	1.1	3.6	18	76	4
57HS76-3004	2	1.8	3	0.9	3.5	18	76	4
57HS82-1004	2	1.8	1	10	44	22	82	4
57HS82-3004	2	1.8	3	1.4	5	20	82	4
57HS82-4204	2	1.8	4.2	0.9	4	25	82	4
57HS93-3004	2	1.8	3	1	4.2	25	93	4
57HS100-3004	2	1.8	3	1.4	5.5	25	100	4
57HS100-3504	2	1.8	3.5	0.8	3	22	100	4
57HS112-3004	2	1.8	3	1.3	6.5	30	112	4
57HY51-1004	2	1.8	1	4.2	12	7	51	4
57HY56-1504	2	1.8	1.5	2.4	6.8	8.2	56	4
57HY76-3004	2	1.8	3	1.3	3.5	12	76	4
57HM41-1106	4	0.9	1.1	5.2	6.2	4	41	6
57HM51-1704	2	0.9	1.7	4	14	9	51	4
57HM56-3004	2	0.9	3	0.8	2.8	10	56	4
57HM64-4204	2	0.9	4.2	0.55	1.5	11	64	4
57HM76-2804	2	0.9	2.8	1.15	5.6	18	76	4
57HM76-3004	2	0.9	3	1.2	5	15	76	4

Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.

On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as the guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and aboard in the near future.
