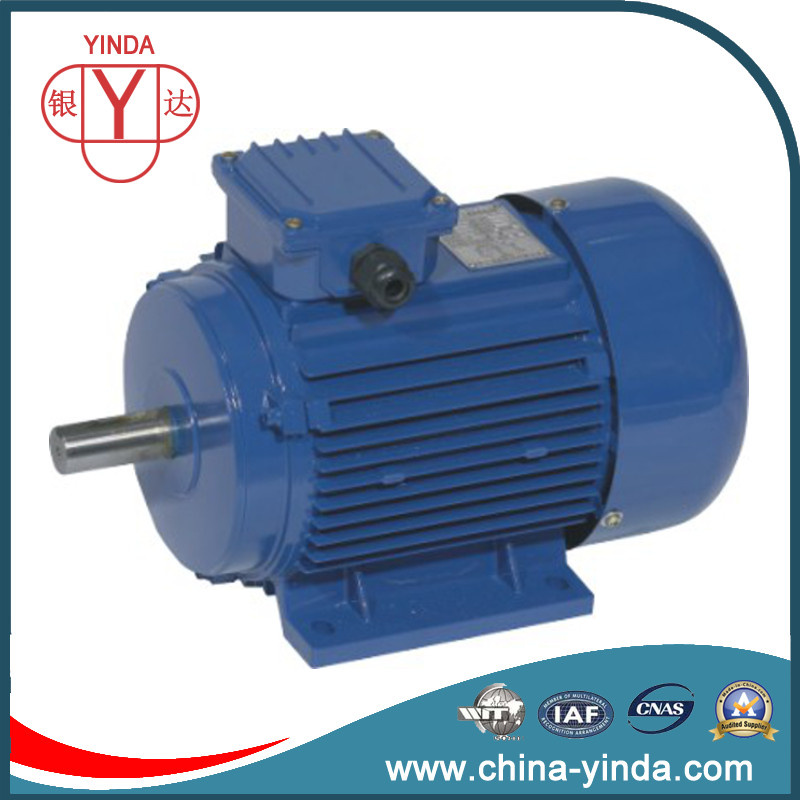

1.5HP Aluminum Frame Three Phase Induction Motor

Name: 1.5HP Aluminum Frame Three Phase Induction Motor
Brand: all-electronics-online.com
SKU: 721827695
Availability: InStock
Rating: 4.8 (24 reviews)

Price:	US $ 35-38/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS series, 40W-200W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	25W-2200W
Voltage:	380V
Frequency:	50Hz
Frame Size:	Aluminum 50-90
Mounting Position:	B3/B5/B35/B14/B34
Protection Class:	IP54
Insulation Grade:	F
Cooling Method:	IC411
Continuous Wording Duty:	S1
Warranty:	12 Months
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	Ce

Product Description

MS Series Aluminum Frame Three-Phase Induction Motor

Applications:
Blowers,Compressors,Pumps,Conveyor,Textiles

Standard Features:
Three-phase, 60/50Hz
Power: 120W-2200W
Voltage: 230/460V (60Hz); 380-415V (50Hz)
Aluminum frames (50 up to 90)
Squirrel cage rotor / Aluminum die cast
Totally Enclosed Fan Cooled TEFC (IP54)
Oil Seal on both endshields
Class "F" insulation
Continuous duty (S1)
Altitude: 3300 ft (1000m)
Standard mouting: B3 Also available in B5, B35, B14 and B34

Optional Features:
Double shaft end
Special painting color
Dimension Drawing:

Technical Data:

Type	Rated Output		Voltage	Frequency	Speed	Efficiency	Power factor	In	Is	Ts	Tmax	Nosie
Type	Kw	HP	V	Hz	r/min	%	CosΦ	A	In	Tn	Tn	Lw dB(A)
MS-631-2	0.18	0.25	380	50	2800	65	0.8	0.5	5.5	2.2	2.2	61
MS-632-2	0.25	0.33	380	50	2800	68	0.81	0.7	5.5	2.2	2.2	61
MS-711-2	0.37	0.05	380	50	2800	70	0.81	1	6.1	2.2	2.2	64
MS-712-2	0.55	0.75	380	50	2800	73	0.82	1.4	6.1	2.2	2.3	64
MS-801-2	0.75	1	380	50	2825	75	0.83	1.8	6.1	2.2	2.3	67
MS-802-2	1.1	1.5	380	50	2825	76.2	0.84	2.6	7	2.2	2.3	67
MS-90S-2	1.5	2	380	50	2840	78.5	0.84	3.34	7	2.2	2.3	72
MS-90L-2	2.2	3	380	50	2840	81	0.85	4.69	7	2.2	2.3	72
MS-631-4	0.12	0.16	380	50	1400	57	0.72	0.4	4.4	2.1	2.2	52
MS-632-4	0.18	0.25	380	50	1400	60	0.73	0.6	4.4	2.1	2.2	52
MS-711-4	0.25	0.33	380	50	1400	65	0.74	0.8	5.2	2.1	2.2	55
MS-712-4	0.37	0.5	380	50	1400	67	0.75	1.1	5.2	2.1	2.2	55
MS-801-4	0.55	0.75	380	50	1390	71	0.75	1.6	5.2	2.4	2.3	58
MS-802-4	0.75	1	380	50	1390	73	0.76	2	6	2.3	2.3	58
MS-90S-4	1.1	1.5	380	50	1400	76.2	0.77	2.8	6	2.3	2.3	61
MS-90L-4	1.5	2	380	50	1400	78.5	0.79	3.65	6	2.3	2.3	61
MS-711-6	0.18	0.25	380	50	900	56	0.66	0.8	4	1.9	2	52
MS-712-6	0.25	0.33	380	50	900	59	0.68	0.9	4	1.9	2	52
MS-801-6	0.37	0.5	380	50	900	62	0.7	1.3	4.7	1.9	2	54
MS-802-6	0.55	0.75	380	50	900	65	0.72	1.8	4.7	1.9	2.1	54
MS-90S-6	0.75	1	380	50	910	69	0.72	2.3	5.5	2	2.1	57
MS-90L-6	1.1	1.5	380	50	910	72	0.73	3.2	5.5	2	2.1	57
MS-801-8	0.18	0.25	380	50	690	51	0.61	0.9	3.3	1.8	1.9	52
MS-802-8	0.25	0.33	380	50	690	54	0.61	1.2	3.3	1.8	1.9	52
MS-90S-8	0.37	0.5	380	50	690	62	0.61	1.5	4	1.8	1.9	56
MS-90L-8	0.55	0.75	380	50	690	63	0.61	2.2	4	1.8	2	56
