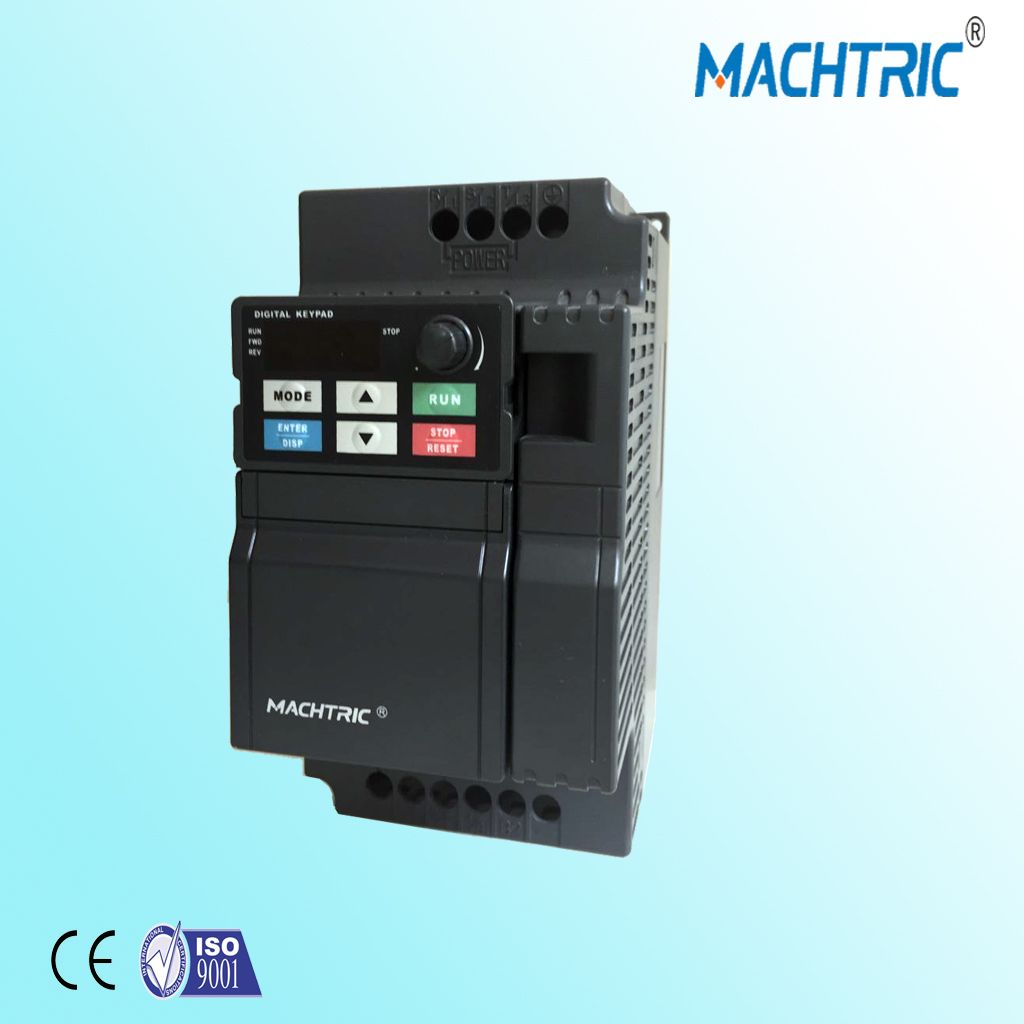

1.5kw 220V 1 Phase 3 Phase Output Frequency Inverter

Prod Model:	Z900 frequency inverter
Control Mode:	V/F Control Open Loop Vector Control
Voltage Range:	220V & 380 V
Speed Range:	1:100(SVC)
Input Voltage:	220V & 380 V
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	PAM Control
Main Circuit Type:	Current
Brand:	Machtric Inverter

Product Description

1500W 1.5KW 220V single phase input and 220v 3 phase output mini frequency inverter for mini ac motor drive, frequency converter

1.Output Power:1.5kw
2.Rated Frequency :50hz/60hz
3.Output Frequency Range:0~650Hz
4.Input Voltage Range:single phase (1 phase) 220V±15%
5.Output Voltage Range:3 phase 220V±15%
6.Control way: Open loop vector control(SVC)      V/F control
7.Main function: Control and adjust the speed of the ac motor
8.Size: 85mm*125mm*150mm
small size, low temperature up, low noise, reliable performance, is a new generation of V/F high-performance universal frequency inverter. brings high torque, high accuracy, high reliability, wide range speed drive, what makes motor work with high efficiency.

Product features:
1 Small size, simple operation.
2..Built-in parameter auto-tuning function,can automatically identify the characteristic of motor and set up related parameter, make the motor run continualy steadily even when the operating parameter of motor changes as times go by .
3.Protection function in all fields: protection of under-voltage, over-voltage, over-current, prevention of motor stall, over-load and over-heat.
4.Standard V/F mode, Noninductive vector mode, Output power(torque) contol mode.
5.Control function special for industrial mechanic:6 kinds of multifunction programmable digital input function
6.The range of output frequency is 0.00~650.00Hz.
7.Adopts low inductance structure, reduce the peak voltage of circuit, strengthen the EMC function, improve the reliability of product greatly.




Item		Z900
Standard functions	Control mode	Sensorless flux vector control (SFVC) Voltage/Frequency (V/F) control
	Maximum frequency	Vector control: 0-300 Hz V/F control: 0-3200Hz
	Carrier frequency	1 kHz-16 kHz The carrier frequency can be automatically adjusted based on the load features.
	Input frequency resolution	Dgital setting: 0.01 Hz Analog setting: maximum frequency x 0.025%
	Startup torque	G type: 0.5 Hz/150% (SFVC); P type: 0.5 Hz/100%
	Speed range	1:100 (SFVC)
	Speed stability accuracy	± 0.5% (SFVC)
	Overload capacity	G type: 60s for 150% of the rated current,  3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto-boost Customized boost 0.1%-30.0%
	V/F  curve	Liner V/F  curve Multi-point V/F  curve N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
	V/F  separation	Two types: complete separation; half separation
	Ramp mode	Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
	DC braking	DC braking frequency: 0.00 Hz to maximum frequency Braking time: 0.0-36.0s Braking action current value: 0.0%-100.0%
	JOG control	JOG frequency range: 0.00-50.00 Hz JOG acceleration/deceleration time: 0.0-6500.0s

Item		Z900
Standard functions	Multiple preset speeds	It implements up to 16 speeds via the simple PLC function or by input(X) terminal states
	Built-in PID	It realizes process-controlled closed loop control system easily.
	Auto voltage regulation (AVR)	It can keep constant output voltage automatically when the mains voltage changes.
	Over-voltage/ Over-current stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
	Torque limit and torque control	It can limit the torque automatically and prevent frequent over-current tripping during the running process.
	Power dip ride through	The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
	Rapid current limit	It helps to avoid frequent over-current faults of the AC drive.
	High performance	high-performance current vector control technology.
	Timing control	Time range: 0.0-6500.0 minutes
	Communication methods	RS485
	Protection mode	Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Input and output	Input terminal	6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input. 1 analog input terminals, switchable between  0-10 V input and 4-20 mA input.
	Frequency source	Digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting.
	Auxiliary frequency source	There are ten auxiliary frequency sources.It can implement fine tuning of auxiliary frequency and frequency synthesis.
	Running command source	Operation panel/Control terminals/Serial communication port You can perform switchover between these sources in various ways.
	Output terminal	1 digital output terminal 1 relay output terminal 1 analog output terminal :that supports 0-20 mA current output or 0-10 V voltage output



Item		Z900
operation on the operation panel	LED display	It displays the parameters.
	Key locking and function selection	It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Environment	Installation location	Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil fog, steam, drip or salt.
	Altitude	Lower than 1000 m
	Ambient temperature	-10°C ~40°C (de-rated if the ambient temperature is  between 40°C and 50°C)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Storage temperature	-20°C~60°C



Model No.	Input Voltage	Rated Output Power (KW)	Rated Input Current(A)	Rated Output Current (A)	Motor Power (KW)
Z900-2S0.4GE	1PH AC 220V•50/60Hz	0.4	5.4	2.4	0.4
Z900-2S0.75GE	1PH AC 220V•50/60Hz	0.75	7.2	4.5	0.75
Z900-2S1.5GE	1PH AC 220V•50/60Hz	1.5	10	7.0	1.5
Z900-2S2.2GE	1PH AC 220V•50/60Hz	2.2	16	10.0	2.2
Z900-2S3.7GE	1PH AC 220V•50/60Hz	3.7	23	16.0	3.7
Z900-4T0.75GE	3PH AC 380V·50/60Hz	0.75	3.8	2.5	0.75
Z900-4T1.5GE	3PH AC 380V·50/60Hz	1.5	5	3.7	1.5
Z900-4T2.2GE	3PH AC 380V·50/60Hz	2.2	5.8	5.0	2.2
Z900-4T3.7GE/5.5GP	3PH AC 380V·50/60Hz	3.7/5.5	10.0/15.0	9.0/13.0	3.7/5.5
Z900-4T5.5GE	3PH AC 380V·50/60Hz	5.5	15.0	13.0	5.5
Z900-4T7.5GE	3PH AC 380V·50/60Hz	7.5	14	17.5	7.5
Z900-4T7.5GE/11GP	3PH AC 380V·50/60Hz	7.5/11	20.0/26.0	17.0/25.0	7.5/11
Z900-11GE/15GP	3PH AC 380V·50/60Hz	11/15	26.0/35.0	25.0/32.0	11/15
Z900-15GE/ 18.5GP	3PH AC 380V·50/60Hz	15/18.5	35.0/38.0	32.0/37.0	15/18.5
Z900-18.5GE/ 22GP	3PH AC 380V·50/60Hz	18.5/22	38.0/46.0	37.0/45.0	18.5/22
Z900-22GE/30GP	3PH AC 380V·50/60Hz	22/30	46.0/62.0	45.0/60.0	22/30
