| Prod Model: |
S2100S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Type: |
AC-DC-AC |
| Input Power 380V: |
0.75-11kw |
| The Certification: |
Ce, ISO |
| Output Frequency: |
0.10--400Hz |
| Protective Structure: |
IP20 |
| Input Power 220V: |
0.75-3.7kw |
| Communicate: |
RS485 |
| Output Phase: |
1/3 Phase |
| Input Phase: |
1/3 Phase |
| Built In: |
Pid |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
1/3 Phase |
| Principle Of Work: |
Frequency Inverter |
| Switch Mode: |
Frequency Inverter |
| Main Circuit Type: |
AC - DC - AC |
| Brand: |
Machtric |

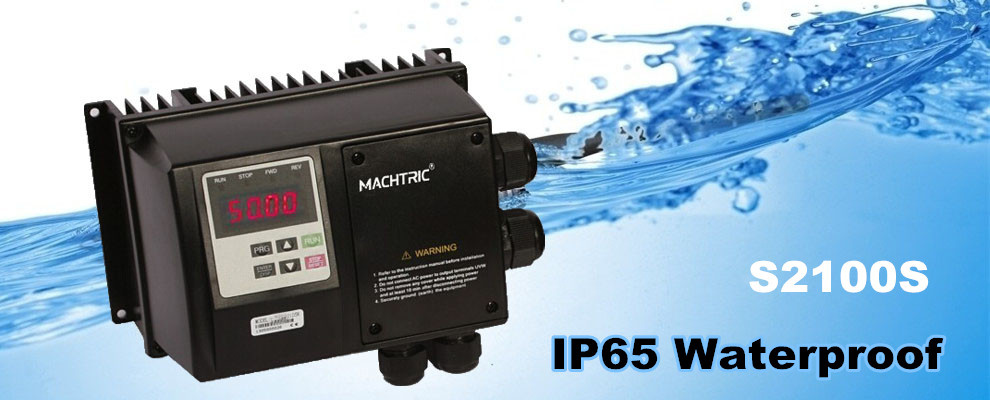

Product Description
Welcome to Machtric Automation Equipment

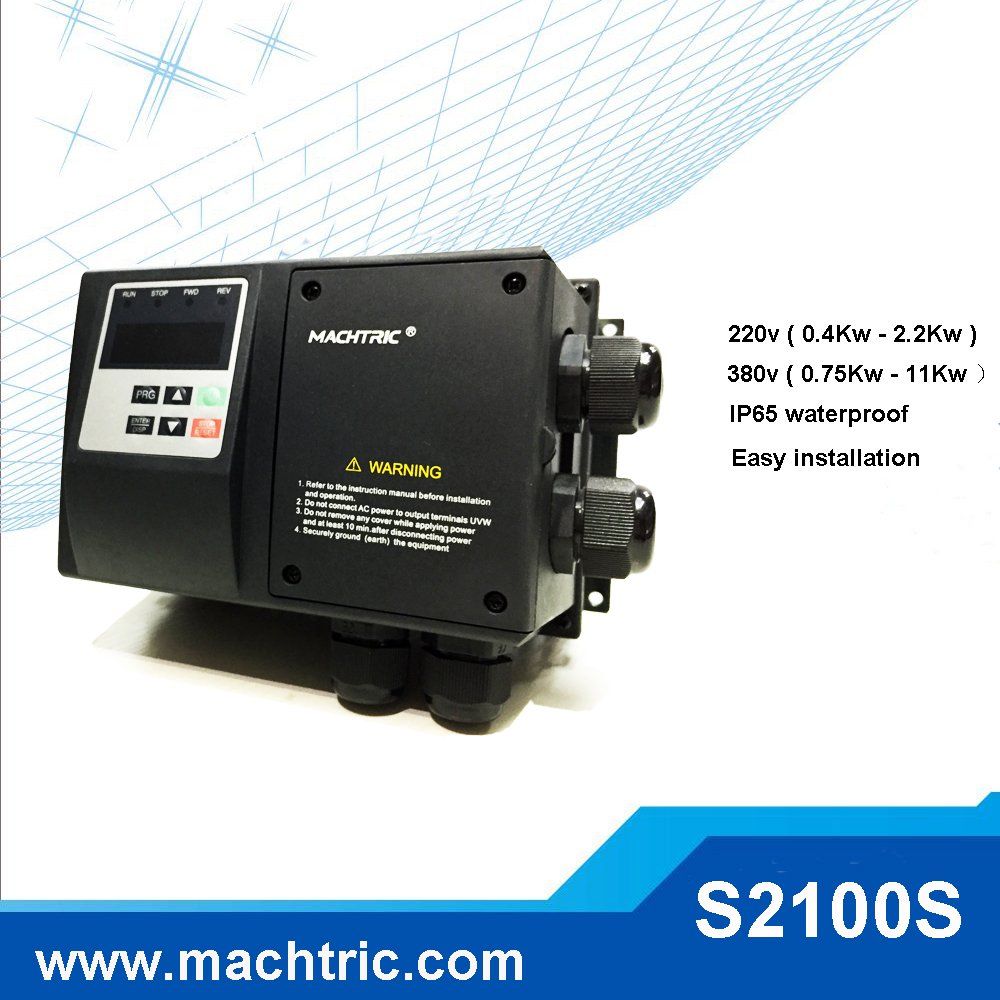

Advantage Big savings on installation: With a built in RFI filter, the S2100S IP65 inverter can be positioned close to the motor which cuts the cost of shielded motor cables. Choose the version with integrated isolator to simplify your external connections.
Big performance: The S2100S IP65 is a modern sensorless vector inverter with 200% overload capacity, a wide range of supply and fieldbus options, and excellent I/O.
Big advantages of easy handling: The S2100S IP65 inverters integrate the EPM memory module - a simple plug in chip that stores all the drive settings. The EPM module can be programmed off-line and the settings transferred from drive to drive in seconds. In the unlikely event that a drive fails, the EPM guarantees you minimum downtime.
Specification
Model |
S2100S |
Input |
Rated voltage,Frequency |
3 AC 380V / 220V; 50-60 Hz |
Voltage Range |
380V: 330V~440V;220V: 170-240V |
Output |
Voltage Range |
380 V: 0~380 V; 220V: 0-220V |
Frequency Range |
0.10~400.0 Hz |
Control method |
V/F control,Space verctor control |
Indication |
Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
Control Specification |
Output Frequency Range |
0.10~400.00 Hz. |
Frequency Setting Resolution |
Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
Output Frequency Accuracy |
0.01 Hz. |
V/F Control |
Setting V/F curve to satisfy various load requirements |
Torque Control |
Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
Multifuncional Input Terminal |
8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
Multifuntional Output Terminal |
3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
| |
|
8 multifunitinal output terminals, 1 inverter can control 4 ciircular variable frequency pumps |
|
Acceleration/deceleration Time Setting |
0~6000 s acceleration/deceleration time can be set individually |
Other functions |
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function (MODBUS) |
Frequency Setting |
Analog input 0~10V, 0~20MA, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN |
Multi-speed |
Eight multifunction input terminals,15 section speed can be set |
Automatic voltage regulation |
Automatic voltage regulation function can be selected |
Counter |
Built-in 2 group of counters |
Overload |
120%,60second (variable torque) |
Over Voltage |
Over voltage protection can be set |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat,output shortcircuit,over current,and parameter lock and so on. |
Environment |
Ambient Temperature |
-10ºC~40ºC(non-freezing) |
Ambient Humidity |
Max. 95% (non-condensing) |
Altitude |
Lower than 1000M. |
Vibration |
Max. 0.5 g |
Structure |
Cooling Mode |
Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling |
Protective Structure |
IP 65 |
Iput voltage(v) | Power range ,kw | 3phase /380v |
| 1/2 PHASE /220V | 0.4`2.2 |

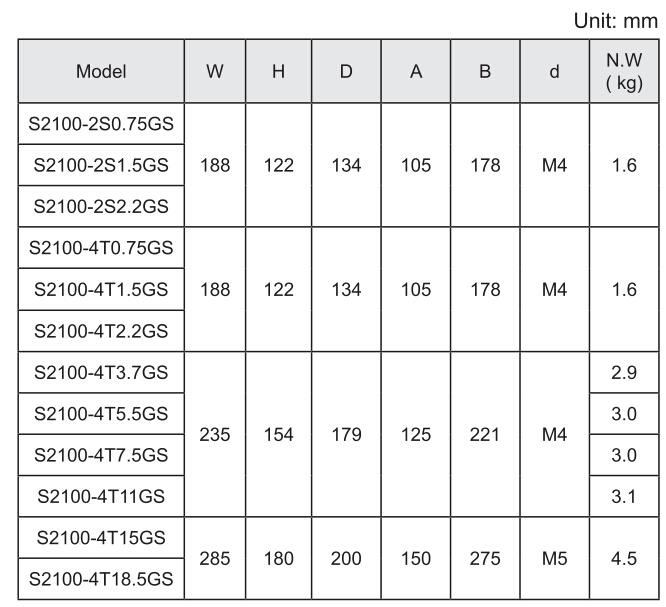

Model | Suitable Motor | Output Current | Assembly Dimension(mm) | | W | H | D | A | B | B | | S2100-2S0.75GS | 0.75KW | 5 | 188 | 122 | 134 | 105 | 178 | M4 | | S2100-2S1.5GS | 1.5KW | 7 | | S2100-2S2.2GS | 2.2KW | 11 | | S2100-4T0.75GS | 0.75KW | 2.7 | 188 | 122 | 134 | 105 | 178 | M4 | | S2100-4T1.5GS | 1.5KW | 4 | | S2100-4T2.2GS | 2.2KW | 5 | | S2100-4T3.7GS | 3.7KW | 8.6 | 235 | 154 | 179 | 125 | 221 | M4 | | S2100-4T5.5GS | 5.5KW | 12.5 | | S2100-4T7.5GS | 7.5KW | 17.5 | | S2100-4T11GS | 11KW | 24 |
|

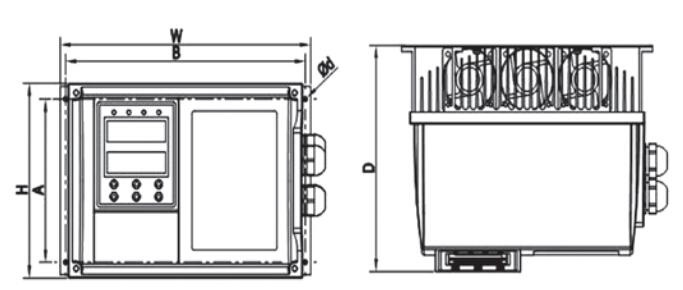

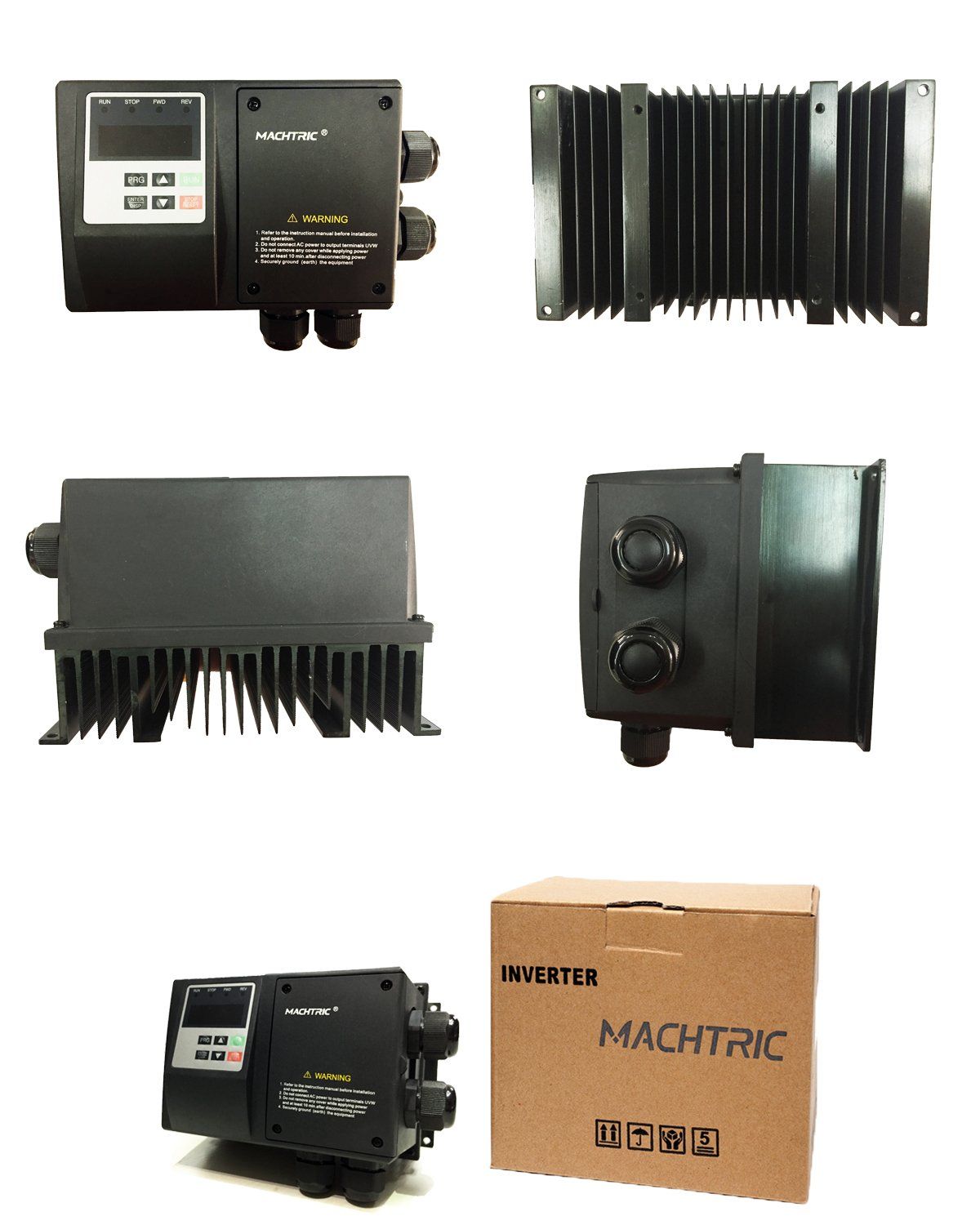

Dimension
Basic wiring diagram
Application Big savings on installation: With a built in RFI filter, the S2100S IP65 inverter can be positioned close to the motor which cuts the cost of shielded motor cables. Choose the version with integrated insulator to simplify your external connections.Big performance: The S2100S IP65 is a modern sensorless vector inverter with 200% overload capacity, a wide range of supply and fieldbus options, and excellent I/O.
Big advantages of easy handling: The S2100S IP65 inverters integrate the EPM memory module - a simple plug in chip that stores all the drive settings. The EPM module can be programmed off-line and the settings transferred from drive to drive in seconds. In the unlikely event that a drive fails, the EPM guarantees you minimum downtime.
FAQ | Question | Answer |
| 1. what's the payment term? | We accept T/T, L/C, D/P, WEST UNION, CASH |
| 2. What's the delivery time ? | Usually it will take about two - three weeks for production .It depends on your quanlity . |
| 3. What is the standard of package? | Export standard package or special package according to customer requirement |
| 4. what kind of product quality your factory offer? | We offer most competitive prices with best quality |
| 5.Which market do you already sell? | We already ship to Europ, Middle East, South America, Asia, Afria etc. |
| 6. Do you accept OEM business? | We accept OEM with your autherization. |
f you have any question , pls let me know !
