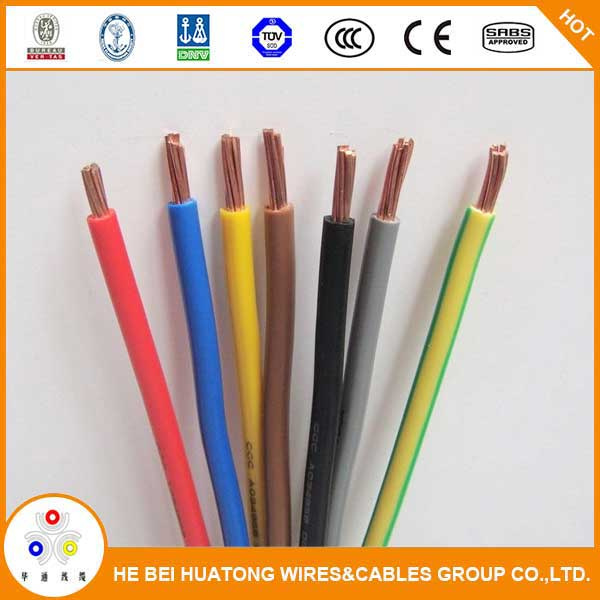

1.5mm 2.5mm 4.0mm 6.0mm 10mm PVC Insulated Electrical Wire
| Price: |
US $ 0.07-0.1/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BV, H07V-R, H05V-R, H07V-U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
300/500V or 450/750V |
| Cross Section: |
0.5mm2-240mm2 |
| Insualted: |
PVC |
| Color: |
Red,Blue,White,Black,Green/Yellow and So on |
| Certificate: |
CCC,ISO,Ce. |
| Produce Name: |
H07V-U |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Indoor, Construction, Building |
| Sheath Material: |
No |
| Brand: |
Rne Da |
Product Description
TOP TEN CABLE MANUFACTURER/EXPORTER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIO
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY
1.5mm,2.5mm,4.0mm,6.0mm,10mm pvc insualted electrical wire 1. Code 227IEC01(BV)
2. Application
PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
3. Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
4. Brief construction
1) Conductor: Copper or aluminium, Solid
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according to the requirements of customers.
5. Service performance
1) Rated voltage: 450/750V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
6 Specification and technical dataNominal section
(mm2) | Number/diameter
of core
(mm) | Maximum outer
diameter
(mm2) | Reference weight
(Kg/km) | Conductor resistance at 20°C
≤(Ω/km) |
| copper | aluminum | aluminum | copper |
| 1.5(A) | 1/1.38 | 3.3 | 20.3 | ----- | ----- | 12.1 |
| 1.5(B) | 7/0.52 | 3.5 | 21.6 | ----- | ----- | 12.1 |
| 2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.80 | 7.41 |
| 2.5(B) | 7/0.68 | 4.2 | 34.8 | ----- | ----- | 7.41 |
| 4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
| 4(B) | 7/0.85 | 4.8 | 50.3 | ------ | ----- | 4.61 |
| 6(A) | 1/2.76 | 4.9 | 65 | 29 | 4.91 | 3.08 |
| 6(B) | 7/1.04 | 5.4 | 71.2 | ---- | ---- | 3.08 |
| 10 | 7/1.35 | 7.0 | 119 | 62 | 3.08 | 1.83 |
| 16 | 7/1.70 | 8.0 | 179 | 78 | 1.91 | 1.15 |
| 25 | 7/2.04 | 10.0 | 281 | 118 | 1.20 | 0.727 |
| 35 | 7/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
| 50 | 19/1.78 | 13.0 | 521 | 215 | 0.641 | 0.387 |
| 70 | 19/2.14 | 15.0 | 734 | 282 | 0.443 | 0.268 |
| 95 | 19/2.52 | 17.5 | 962 | 385 | 0.320 | 0.193 |
| 120 | 37/2.03 | 19.0 | 1180 | 431 | 0.253 | 0.153 |
| 150 | 37/2.25 | 21.0 | 1470 | 539 | 0.206 | 0.124 |
| 185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
| 240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |
7 Packing: Soft packing,100meters/roll or as your requirment
8 Certificate:We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate
USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.
9 Company profile:Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
10 Our Service:1.How many year have our factory producing power cable?Our factory produce power cable for 22 years.2 Hong Long time the customer can get the new price after get your inquiry? Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.3.Which port our factory is near to? Tianjin port4.Which payment term do we accept? T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.5.What about the package for our power cable? It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.6.How long meter power cable for one wooden drum? This is according to power cable's diameter and customer's requirments.7.How about our delivery time? According to your order's quantity , for 1million meters power cable, it is only 25 working days is ok.8.Do we provide sample for free? Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
