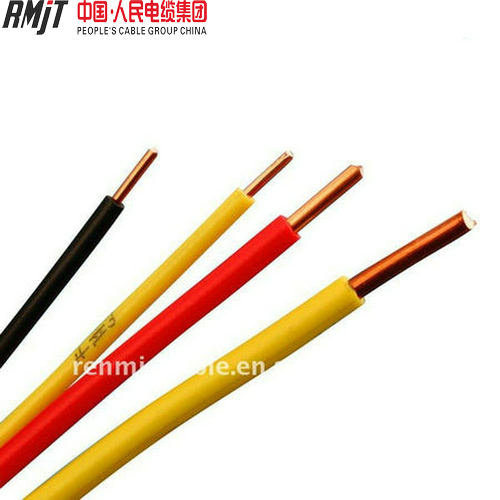

1.5mm 2.5mm 4mm 6mm 10mm Electrical Wire
| Price: |
US $ 0.09-0.29/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Electric Wire |
| Number Of Cores: |
Multicore |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Rmjt |
Product Description
1.5mm 2.5mm 4mm 6mm 10mm electrical wire
1.Application:
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
2.Construction:
(1).Conductor: bare/tinned copper,or Aluminum.
(2).Insulation: PVC rated at 70°C
(3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
(4).Outer sheath: PVC tapes ST2 to IEC.
3.Service Performance of Electric Wire and Cable
(1).Rated voltage: 450/750V
(2).Long-term working temperature: not be higher than 70°C
(3).When laying the cable, the ambient temperature should not lower than 0°C
(4)Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D ascable overall diameter>25mm.
4.Type, Name and Application
| Nominal cross section(mm2) | Core structure
No./Dia(mm) | Average outer dia. max.(mm) | Conductor resistance |
| 1 | 1x1.13 | 2.8 | 18.1 |
| 1.5 | 1x1.38 | 3.3 | 12.1 |
| 2.5 | 1x1.78 | 3.9 | 7.41 |
| 4 | 1x2.25 | 4.4 | 4.61 |
| 6 | 1x2.76 | 4.9 | 3.08 |
| 10 | 7x1.35 | 7.0 | 1.83 |
| 16 | 7x1.70 | 8.0 | 1.15 |
| 25 | 7x2.14 | 10.0 | 0.727 |
| 35 | 7x2.52 | 11.5 | 0.524 |
| 50 | 19x1.78 | 13.0 | 0.387 |
| 70 | 19x2.14 | 15.0 | 0.268 |
| 95 | 19x2.52 | 17.5 | 0.193 |
| 120 | 37x2.03 | 19.0 | 0.153 |
| 150 | 37x2.25 | 21.0 | 0.124 |
| 185 | 37x2.52 | 23.5 | 0.0991 |
| 240 | 61x2.25 | 29.5 | 0.0754 |
| Type | Name | Application | Long-time Permissible Working Temperature (°C) |
| 60227IEC01 05 BV BLV | Copper/Aluminum conductor PVC insulated wires | Fixed laid in the circumstance of indoors, Conduit etc. | 70 |
|
| 60227IEC07 (BV-90) | Heat resistant copper conductor PVC insulated wire at 90°C | Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. | 90 |
|
|
| BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 70 |
|
|
| 60227IEC10 (BVV) | Copper conductor PVC insulated PVC sheathed round wire | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 70 |
|
| BLVV | Aluminum conductor PVC insulated PVC sheathed round wires |
|
| BVVB | Copper conductor PVC insulated PVC sheathed flat wires |
| BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires |
| 60227IEC02(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 70 |
|
| 60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire |
| RVS | Copper conductor PVC insulated flexible twisting connector wire |
|
| 60227IEC52(RVV) 60227IEC53 | Copper conductor PVC insulated PVC sheathed round flexible connector wire |
|
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
