| Prod Model: |
H07RV-K |
| Voltage: |
450/750V |
| Insulation Color: |
Red, Black, Blue, White, Yellow, Green Ect. |
| Certificate: |
ISO9001, ISO14001, CCC |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Rmjt |
Product Description

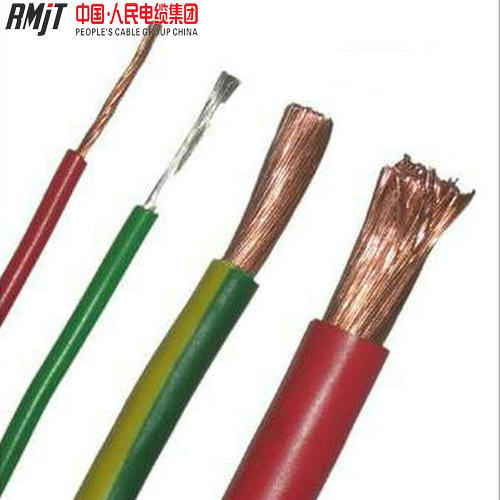

1.5mm2 Multi Stranded Single Core PVC Coated Electric Wire H07V-K
1.Application
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
2.Standard
(1).Conductor: bare solid/stranded copper,or Aluminum.
(2).Insulation: PVC rated at 70°C
(3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement.
(4).Outer sheath: PVC tapes ST2 to IEC.
3.Specification
| Type | Name | Application | Long-time Permissible Working Temperature (°C) |
| 60227IEC01 05 BV/BLV | Copper/Aluminum conductor PVC insulated wires | Fixed laid in the circumstance of indoors, Conduit etc. | 70 |
|
| 60227IEC07 (BV-90) | Heat resistant copper conductor PVC insulated wire at 90°C | Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. | 90 |
|
|
| BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 70 |
|
|
| 60227IEC10 (BVV) | Copper conductor PVC insulated PVC sheathed round wire | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 70 |
|
| BLVV | Aluminum conductor PVC insulated PVC sheathed round wires |
|
| BVVB | Copper conductor PVC insulated PVC sheathed flat wires |
| BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires |
| 60227IEC02(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 70 |
|
| 60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire |
| RVS | Copper conductor PVC insulated flexible twisting connector wire |
|
| 60227IEC52(RVV) 60227IEC53 | Copper conductor PVC insulated PVC sheathed round flexible connector wire |
4.Production Progress
CU/AL PVC Insulation 450/750V Electric Wire: Buy CU/AL and PVC---Raw Material Inspection---Qualified Material in Storage--Conductor Drawing--Conductor Stranding--PVC Insulation Extrusion--Finish Cable--Package.
5.Package
Package in plastic reel, paper reel, wooden drum or package in 100meter/roll.
