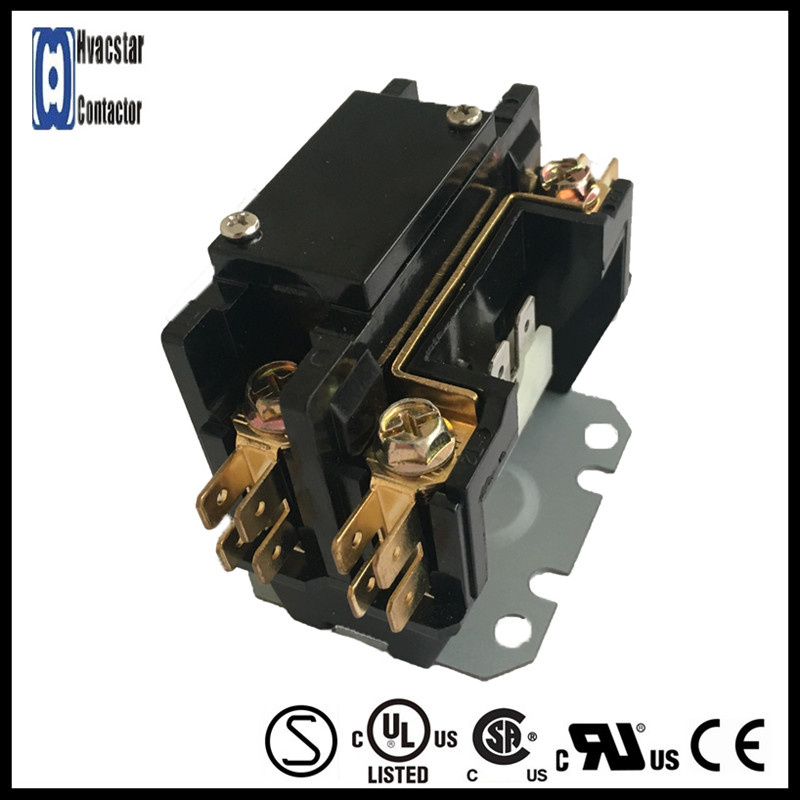

1.5p AC Contactor 240V 30A Magenetic Contactor with UL Certificated

Name: 1.5p AC Contactor 240V 30A Magenetic Contactor with UL Certificated
Brand: all-electronics-online.com
SKU: 822256865
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	US $ 2.7-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SA-1.5P-30A-240V
Color:	Black
Certificate:	Ce, UL, CCC, S, CSA
Material:	High Arc-Resistant Phenolic Resin
Application:	Refrigeration, Air Conditioning and Heating
Delivery Time:	35 Days After Deposit

Product Description

About Us
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors  (including
DP Contactors,  LC1 series contactors ,  Founded in Mingguang City,China, in 2005,  stepped  into the  HVAC industry  as  a reliable source .
Our  strongest domestic suppliers and our vast   experience  with  global  trading, allows  us to  bring  the
most   innovative  and highest  quality  products available to our customers.

Item Specifications

F/L Inductive Amps	30A
Poles	1.5P
Resistive Amps	40A
Coil Voltage	240V
Hertz	50/60
Locked Rotor Amps 240/480/600	180/150/120

This Item Replaces

Siemens	45EG10AGA
	C25CNB130B
Mars	91313
GE	CR453CC3BAA
Gemline	GDP3012
Hartland Controls	HCCY1NU02AA303
Hartland Controls	HCCY1XU02AA303

Advantage:
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .
Options:
1, 2, 3 and 4 Pole Configurations 24, 120, 240 and 480 VAC Coils Wide range of electrical ratings Screw, Box or Pressure Plate Connections NEMA mounting base
NO/NC End Switch Kits
Technical Specifications:
Electrical Contact Ratings: 20 to 90 Amps Electrical Coil Ratings: 24 to 600 VAC Life Rating: 100,000 & 250,000 Cycle Options

Contact Us:

Mr.ZHOU

M:+86 15397306728

24 hours online. Please feel free to contact me.

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
