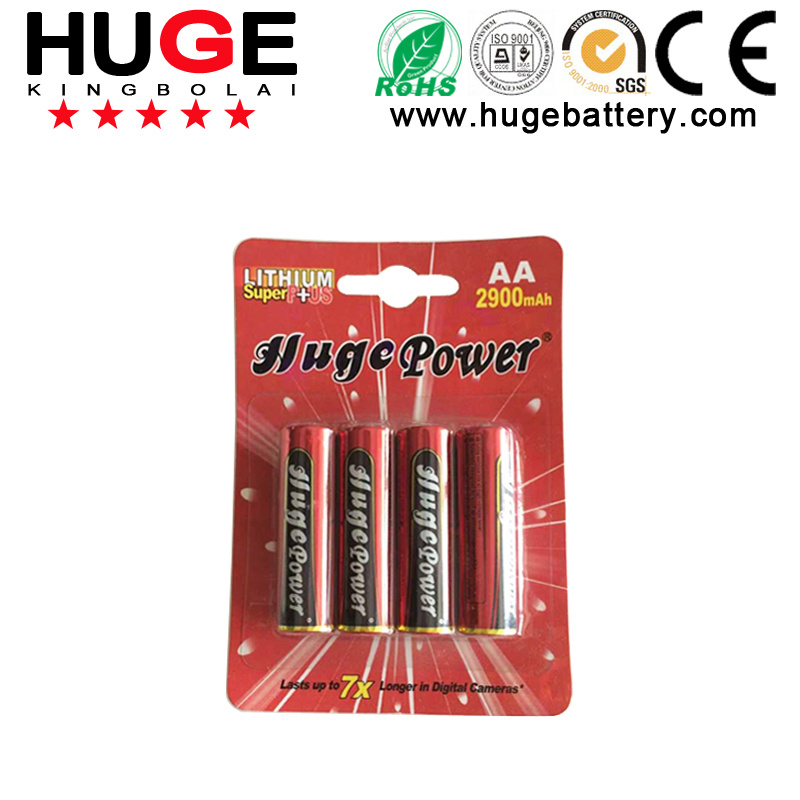

1.5V AA Size Lithium Iron Primary Battery Fr6

Prod Model:	FR6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Factory:	Guangdong
Samples:	Free
Brand:	Huge
OEM:	Support
Charging Type:	Non-rechargeable
Nominal Voltage:	1.5V
Recycling:	Non-Recyclable
Size:	AA
Package:	Simple
Battery Type:	Lithium Iron

Product Description

1. Specification

No.	Items	Specification
1	Nominal Voltage	1.70V ~1.86V
2	Impedance	≤350mΩ
3	Typical Capacity(300mA)	2900 ±50 mAh
4	Working Voltage	1.30V at 1000mA discharge rate
5	Max. Discharge Current	2000 mA continuous
6	Discharge Cut-off Voltage	0.80V
7	Volume	8.0 cubic centimeters
8	Weight	Approx. 15.0~15.8 g
9	Lithium Content	Less than 1 gram per cell
10	Dimensions	Diameter: 14.0±0.5 mm
		Height: 49.85±0.65 mm
11	Operating Temp.	-20 °C to 60 °C
12	Storage Temp.	-20 °C to 40 °C
13	Storage Humidity	≤75 %
14	Shell Life	5 Years



2. Typical Discharge Curve

2.1 Typical discharge curve at different constant current





2.2 Temperature effect on performance




3. Test Conditions and Performance
3.1 Measuring Instrument or Apparatus
3.1.1 Dimension Measuring Instrument
The dimension measurement shall be implemented by calipers with equal or more precision scale of 0.01 mm.
3.1.2 Voltmeter
Standard class specified in the national standard or more sensitive class having inner impedance more than 10 kΩ/V.
3.1.3 Ammeter
Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω.
3.1.4 Standard Test Conditions
Unless other defined, test and measurement shall be done under temperature of 20±5°C and relative humidity of 45~85%. If it is judged that the test results are not affected by suchconditions, the tests may be conducted at temperature 10~30°C and humidity 25~85%RH.

3.2 Mechanical Characteristics

No.	Item	Test Method	Criteria
1	Impact	A 15.8 mm diameter bar is vertically placed across the centre of the sample cell. A 9.1 kg mass is dropped from a height of 61cm onto the sample.	No explosion, No fire
2	Vibration	Freq: 10~55hz; Amp: 2mm; Three directions; total 90 min	No leakage, No explosion, no fire 0.02V total maximum OV changes
3	Crush	A sample cell is to be crushed between two flat surfaces. Force: 32mm diameter piston; Max pressure: 17.2MPa; Max force: 13KN; Released when the max pressure obtained.	No explosion, No fire



3.3 Environmental test

No.	Item	Test Conditions	Criteria
1	Thermal test	Fresh batteries, store at 70 deg. C for 4hs; 20 deg. C for 2hs; -20 deg. C for 4hs; 20 deg. C for 2hs. All cycled 5 times	No leakage No explosion; No fire
2	Heating test	Fresh battery is heated in an oven. The rate of temperature raised: 5±2°C per minute; Max. temperature 150±2°C remaining for 10 minutes.	No explosion; No fire
3	Drop test	Fresh batteries; Height: 1m, 6 times; Each direction two times; Concrete floor	No leakage; No explosion; No fire




3.4 Visual inspection
There shall be no such defect as scratch, flaw, crack, and leakage, which may adversely affect commercial value of cell.




4. Drawing (unit: mm(inches) )
