1.5V C R14 Um2 Dry Battery

Name: 1.5V C R14 Um2 Dry Battery
Brand: all-electronics-online.com
SKU: 790235035
Availability: InStock
Rating: 4.5 (46 reviews)

Price:	US $ 0.259-0.267blister
Min Order:	50000blister
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PH-R14B2P
Charging Type:	Non-rechargeable
Nominal Voltage:	1.5V
Battery Type:	Zinc Carbon Battery
Recycling:	Non-Recyclable
Size:	C
Certification:	SASO
Package:	Blister

Product Description

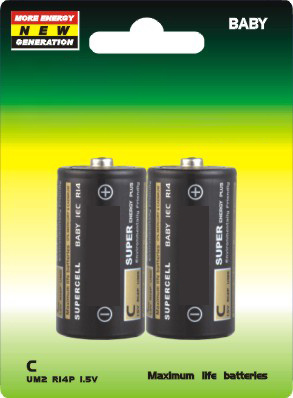

C R14CARBON BATTERY UM2

MODEL

C/R14

TOP and Bottom	Metal top and metal bottom
Jacket	PVC
Duration	350mins
Package	2pcs/blister,6packs/box,144packs/carton
Hazardous Chemical Content	0.00% mercury,cadmium,lead
Nominal Voltage	1.5V
Nominal Height	49-50MM
Nominal Weight	43g

Shelf Life	2YEARS
Color	Various Up to Your Requirement
Certifications	ROHS,CE,SGS,ISO

Discharge mode

(condition: temperature: 20°C±2°C. Testing should be done within 15days upon the receipt of goods)

	Discharge condition			Minimum average Discharge time
reference standard	on-load resistance	Discharge time per day	end Voltage(V)	fresh Battery	stored for 12 months under Room Temp
	3.9Ω	24h/day	0.9V	≥280m	≥238m
	3.9Ω	1h/day	0.8V	≥8h	≥6.8h
	20Ω	4h/d	0.9V	≥40h	≥34h
	6.8Ω	1h/d	0.9V	≥12.6h	≥10.7h

a) 10Ω 1h/d e.v. 0.9v discharge time: 20h

b)1000ma pulse 10s/min-1h/d e.v. 0.9v discharge time:400cycles

c) 3.9Ω 1h/d, e.v. 0.8v discharge time:7.4h

d)43Ω,4h/d e.v. 0.9v discharge time:90h

e)24Ω,15s/min,8h/d, e.v. 1.00v discharge time:45h

Test Condition: 3.9Ω load resistance, discharge 24 hours per day ,end-point voltage 0.9Volt

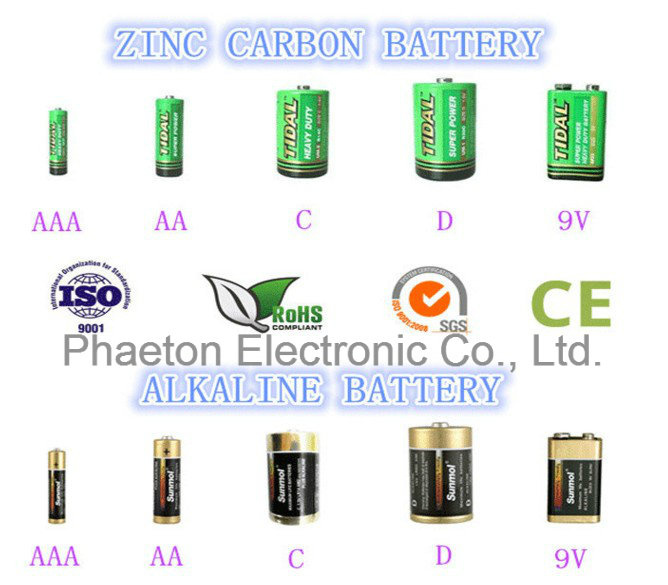

WITH THE PRODUCT SIZE SELECTION:

Type	Jacket	Voltge (v)	Test Condition	Cut-Off	Duration
R03P	PVC	1.5	3.9Ω 24h/d	0.9v	40min
R6P	PVC	1.5	3.9Ω 24h/d	0.9v	95min
R14P	PVC	1.5	3.9Ω 24h/d	0.9v	280min
R20P	PVC	1.5	3.9Ω 24h/d	0.9v	680min
6F22	PVC	9	180Ω 24h/d	5.4v	380min

DETAIL PICTURES:

You can use our batteries for these examples:
Toys,Digital Cameras,Game Player,Flashlight,MP3 Player,Remote Controller, Household Electrical Appliances,Home Telephone set etc.widely use for our daily life

Established in 1996, Phaeton Electronic Co., Ltd. is specialized in manufacturing all kinds of. Audio/video cables, HDMI cable. Power cables, electronic connectors. Plug adaptor, LED lighting, CATV products et. Our products were exported to Europe, American, Middle East, Africa. Steady quality and best prices, we have built up high reputation among customers in these area, and some of them become our long-term customers finally.

Our company according the ISO9001: 2000 international quality management system certification. Quality products, prompt delivery and low cost will be guaranteed. OEM and ODM orders are welcome.

High speed, Superior quality, Good service is our development guideline. We are eager to cooperate with all the old and new customers to create more good future!
