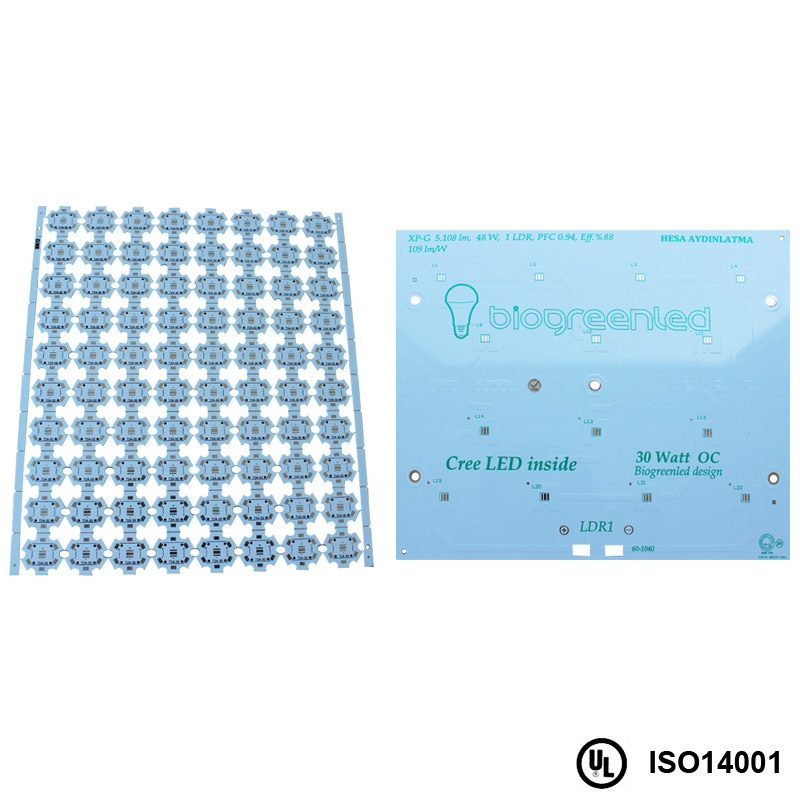

1.6mm Aluminium PCB for Lighting Industry
| Price: |
US $ 65-90/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
5/Square Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Aluminium PCB-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
0.8mm,1.0mm,1.2mm,1.6mm,2.0mm,2.2mm |
| Thermal Conductivity: |
1.0W/M.K,1.5W/M.K,2.0W/M.K,3.0W/M.K,4.0W/M.K |
| Ccl Brand: |
Jh,Ccaf.etc |
| Sample Date: |
3-5days |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
Aluminium |
Product Description
Aluminum base copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float.It's widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.Note: We specially produces Metal Base Copper-Clad Laminates, and our products have been compiled series with all complete specifications.The tapy and specification of Aluminum based Laminates CCAF-01, CCAF-04-A, CCAF-05etc. And 0.8mm, 1.0mm, 1.5mm, 2.0mm, etc.Thickness of the copper: 18um, 35um, 70um, 105um.Base size: 500mm × , 600mm (20"× , 24"); 600mm × , 1060mm (24"× , 42")CCAF-04-A Aluminum-base copper-clad laminateThe test base: CCAF-04 the high heat dissipation Aluminum-base copper-clad laminateThickness of the copper: 35umThickness of the diclectric: 80um(matrial of the high heat dissipation)Thickness of the aluminum-base: 1.5mmThe result of the test:| | Test item | Technology request | Unit | Test result |
| 1 | Peel Strength | A | ≥ 1.0 | N/mm | 1.05 |
| After thermal stress (260 ordm;C ) | ≥ 1.0 | N/mm | 1.05 |
| 2 | Blister test AfterThermal stress (288 ordm;C, 2min) | 288ordm;C 2 min
No delaminating | / | OK |
| 3 | Themal Resistance | ≤ 2.0 | ordm;C /W | 0.65 |
| 4 | Flammability(A) | FV-O | / | FV-O |
| 5 | Surface Resistivity | A | ≥ 1 × 10 5 | M Ω | 5.0 × 10 7 |
Constant humidity treatment
(90%,3 5 ordm;C ,96h) | ≥ 1 × 10 5 | M Ω | 4.5 × 10 6 |
6
7 | Volume Resistivity | A | ≥ 1 × 10 6 | M Ω@ m | 1.0 × 10 8 |
Constant humidity treatment
(90%,3 5 ordm;C ,96h) | ≥ 1 × 10 6 | M Ω@ m | 1.9 × 10 7 |
| 8 | Dielectric Breakdown (DC ) | ≥ 25 | Kv/mm | 31 |
| 9 | Dielectric constant (1MHz)
(40 ordm;C, 93% , 96h) | ≤ 4.4 | / | 4.2 |
| 10 | Dielectric dissipation factor (1MHz )
(40ordm;C ,93%,96h) | ≤ 0.03 | / | 0.029 |
| | Accelerated aging experiment
(125 ordm;C ,2000h) | | The laminate bace should no wrinkles,no crack,no delaminating or no pine | / | OK |
| 11 | High low temperature impact test
(-50 ordm;C, 15min, 80ordm;C , 15minTOTAL DO 15 ~ 20 Circulation) | Peel Strength | / | N/mm | 1.39 ~ 1.64 |
| Surface Resistivity | / | M Ω | 1.9 × 10 8 ~6.4 × 10 8 |
