1.778mm Swiss Round Socket

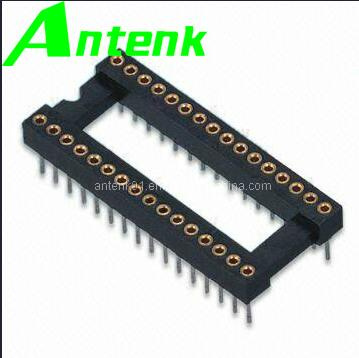

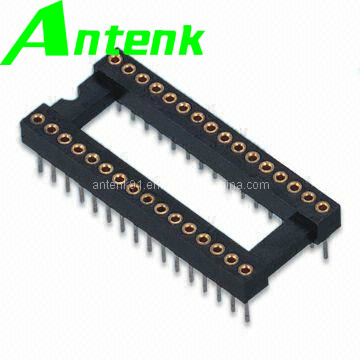

Name: 1.778mm Swiss Round Socket
Brand: all-electronics-online.com
SKU: 649742685
Availability: InStock
Rating: 4.3 (70 reviews)

Price:	US $ 0.105-0.22/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IC Socket with 3.0mm Plastic Height
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Antenk

Product Description

Positions: 12 to 32
Plastics height: 3.0mm

Insulator: Black glass filled polyester PBT and 30%GF
Flammability: UL94V-0
Sleeve: Brass CuZn 36pb3(36000)
Contact clip (6 fingle): Beryllium copper (C17200)
Mating pinØ : 0.40 to 0.56mm
Forces: (polished steel gauge. 46mm)
Insertion: 2N typ.
Withdrawal: 1N typ.
Mechanical life: Min 100 cycles
Rated current: 1.0AMP
Contact resistance: Max 10m Ω
Dielectric strength: Min 1000V RMX

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.
