| Prod Model: |
Fiber Optical Splitter PLC |
| Fiber Type: |
Sm |
| Installation: |
Splitter |
| Sheath: |
PVC/LSZH |
| Sheath Color: |
Yellow/Orange/Aqua.... |
| Cable Type: |
2.0mm |
| Fiber Co1*8unts: |
1*8 |
| Application: |
Telecommunication |
| Certification: |
ISO9001 |
| Type: |
Indoor Cable |
| Connection Structure: |
PLC Splitter |
| Core: |
1 Core or 2 Core |
| Sheath Material: |
PVC or LSZH |
Product Description

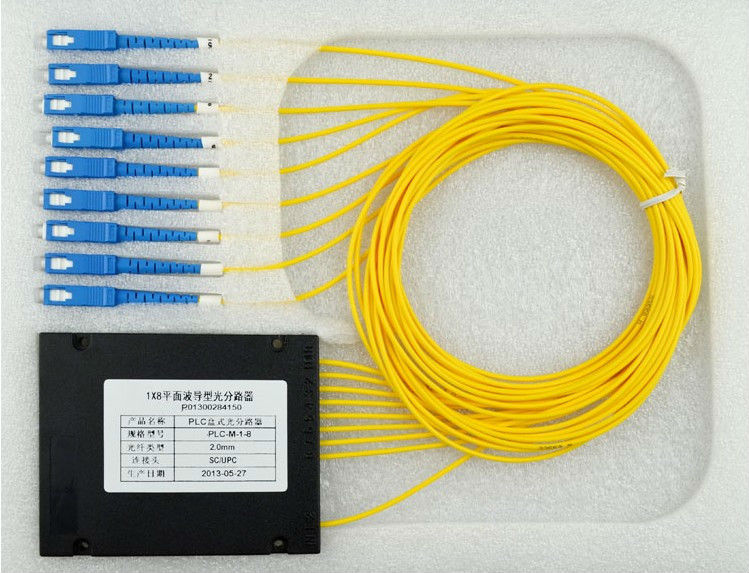

1*8 1M 0.9MM PLC Splitter with SC/APC Connector
Product DescriptionSplitter (PLC)
BRIEF INTRODUCTION
Splitter(PLCS) is fabricated using quartz optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, low insertion loss and low PDL, high reliability and return loss, small size. The PLCS is widely used in FTTH system, LAN&WAN&CATV networks, PON networks to realize optical signal power management. The ARK provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet the Telcordia 1209 and 1221 reliability requirements.
SPECIFICATIONS| 1XN Parameters |
| ITEM | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | Unit |
| Insertion Loss | ≤3.7 | ≤7.20 | ≤10.5 | ≤13.6 | ≤16.9 | ≤21.0 | dB |
| Uniformity | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 | ≤2.5 | dB |
| Ribbon Fiber Packaging Size (L×W×H) | 40×4 ×4 | 40×4 ×4 | 40×4 ×4 | 40×4 ×4 | 50×7×4 | 60×12×4 | mm |
| ¢0.9mm Loose Tube Packaging Size(L×W×H) |
| 50×7 ×4 | 50×7 ×4 | 60×12 ×4 | 80×12×4 | / | mm |
ABS Box Packaging Size
(L×W×H) | 100X80X9
Distance between screw holes:70x74 | 120x80x18
Distance between screw holes:80x74 | 140x114x18
Distance between screw holes:100x106 | mm |
| Operating Wavelength | 1260~1650 | nm |
| PDL | < 0.2 | < 0.3 | dB |
| Directivity | >55 | dB |
| Return Loss | >55 | dB |
| Operation Temperature | -40~+85 | ºC |
| Storage Temperature | -40~+85 | ºC |
| 2XN Parameters |
| ITEM | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | Unit |
| Insertion Loss | ≤4.0 | ≤7.5 | ≤11.2 | ≤14.5 | ≤17.5 | ≤21.4 | dB |
| Uniformity | 0.8 | ≤1.2 | ≤1.5 | ≤2.0 | ≤2.5 | ≤2.5 | dB |
| Ribbon Fiber Packaging Size (L×W×H) | 50×4×4 | 50×4×4 | 50×4×4 | 60×7×4 | 60×7×4 | / | mm |
| ¢0.9mm Loose Tube Packaging Size(L×W×H) | 60×7×4 | 60×7×4 | 60×7×4 | 80×12×6 | 100×20×6 | / | mm |
ABS Box Packaging Size
(L×W×H) | 100x80x9
Distance between screw holes:70x74 | 120x80x18
Distance between screw holes:80x74 | 140x114x18
Distance between screw holes:100x106 | mm |
| Operating Wavelength | 1260~1650 | nm |
| PDL | < 0.2 | < 0.3 | dB |
| Directivity | >55 | dB |
| Return Loss | >55 | dB |
| Operation Temperature | -40~+85 | ºC |
| Storage Temperature | -40~+85 | ºC |
|
|
|
|
|
|
|
|
|
Note1: All values specified are without connectors.
