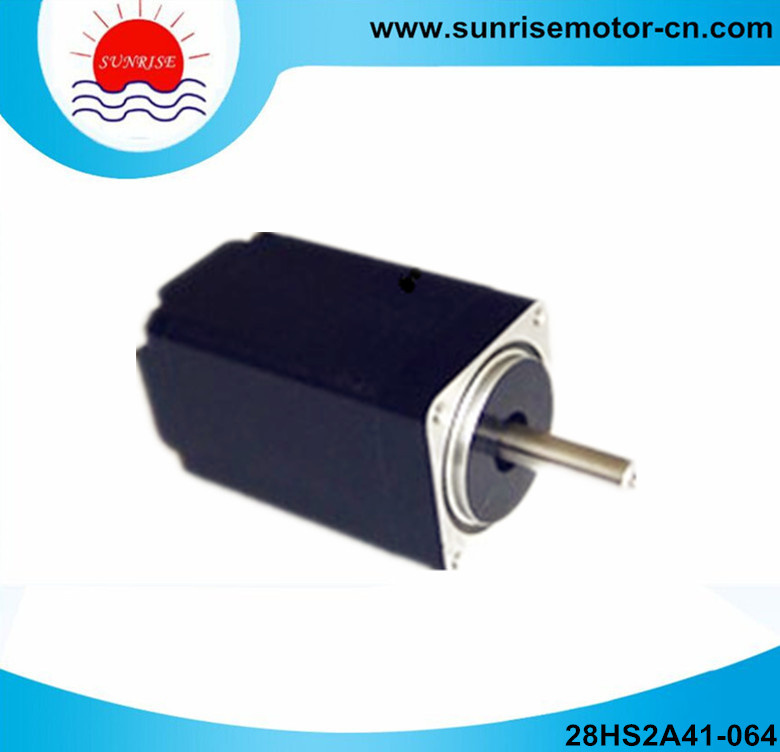

1.8° 2- Phase 28HS2A41-064 Stepping Motor 2-Phase Hybrid Stepper Motor

Name: 1.8° 2- Phase 28HS2A41-064 Stepping Motor 2-Phase Hybrid Stepper Motor
Brand: all-electronics-online.com
SKU: 786473155
Availability: InStock
Rating: 4.8 (46 reviews)

Price:	US $ 8.55-10.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	28HS2A41-064 Stepping Motor
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Hybrid
Certification:	SGS
Brand:	Sunrise Motor

Product Description

Model:28HS2A41-064
Holding Torque:6N.cm
Current:0.6A
Resistance:7Ω
Motor Length:41MM
Weight:140g

Remark:
Motor are available with different winding and mechanical modification to meet specific applications.

Model	Holding Torque (N·cm±10%)	Current/Phase(A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N·cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
28HS2A28-064	4.5	0.6	4.2	2.2	0.3	6	28	105
28HS2A28-044	4.5	0.35	12	5.8	0.3	6	28	105
28HS2A33-064	6.0	0.6	5.5	3.2	0.4	8	33	110
28HS2A33-044	6.0	0.35	15	9.2	0.4	8	33	110
28HS2A41-064	6.0	0.6	7.0	6.0	0.5	11	41	140
28HS2A41-044	6.0	0.35	20	15	0.5	11	41	140
28HS2A50-064	10	0.6	9.0	7.2	0.8	13	50	180
28HS2A50-044	10	0.35	24	18.5	0.8	13	50	180

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
