Changzhou Sunrise Electric Motor Co., Ltd. >> 1.8° 39HS2A40-046 Stepper Motor 2-Phase Hybrid Stepper Motor

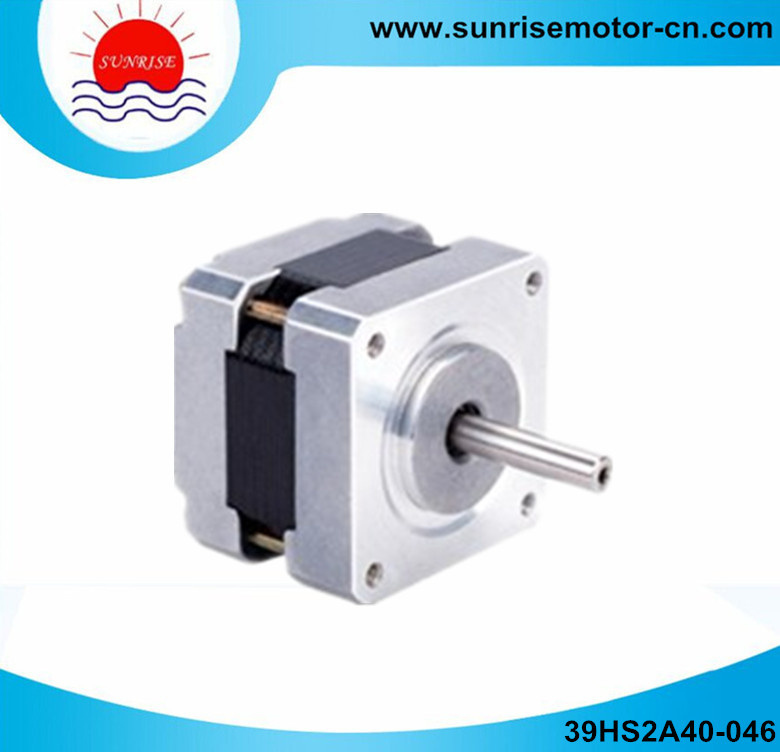

1.8° 39HS2A40-046 Stepper Motor 2-Phase Hybrid Stepper Motor

1.8° 39HS2A40-046 Stepper Motor 2-Phase Hybrid Stepper Motor
Price: US $ 6.61-9.03/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: 39HS2A40-046 Stepper Motor
Holding Torque (N·cm±10%): 18
Current/Phase(a): 0.4
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Operate Mode: The Three Single Phase
Type: Hybrid
Certification: SGS
Brand: Sunrise Motor

Product Description

Product Description
Model:39hs2A40-046
Holding Torque:18N.cm
Current:0.4A
Resistance:30Ω
Motor Length:40MM
Weight:210g



Motor are available with different winding and mechanical modification to meet specific applications.
ModelHolding Torque (N·cm±10%)Current/Phase(A)Resistance/Phase (ohms±10%)Inductance/Phase (mH±20%)Detent Torque
(N·cm)		Rotor Inertia
(g-cm 2 )		Length
(mm)		Weight
(g)
39hs2A40-046180.430221.22440210
Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
