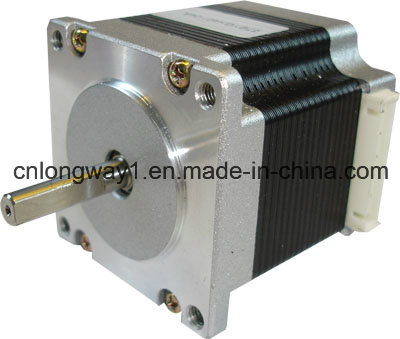

1.8° Hybrid Stepping Motor for Printer

Name: 1.8° Hybrid Stepping Motor for Printer
Brand: all-electronics-online.com
SKU: 652019325
Availability: InStock
Rating: 5 (27 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CIF,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	57BYGH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Electromechanical
Brand:	Longway

Product Description

HYBRID STEPPING Motor's Application: In computer peripheral, telecommunications stage lighting, industrial control systems and office automation. For example Ticket printer, Engraving machine, Medical appliances, textile industry.

General Specifications
57BYGH
Step Accuracy: ± 5%
Temperature Rise: 80 Max.
Ambient Temperature Range: 20~+50
Insulation Resistance: 100MΩ Min. 50V DC
Dielectric Strength: 500V AC 1minute

Electrical Specifications
Model			Rate Voltage (V)	RateCurrent (A)			Holding Torque (kg.cm)	Lead Wire (NO.)	Rotor Inertia (g. cm)	Detent Torque (kg.cm)	Motor Weight (kg)
	Step angel ( ° )	Motor Length L(mm)			Phase Resistance ( Ω )	Phase Inductance (mH)
57BYGH001	1.8	41	6	0.5	12	20	4	4	120	0.21	0.45

57BYGH013	1.8	41	2.7	1.5	1.8	4	4	4	120	0.21	0.45

57BYGH201	1.8	51	7.2	0.6	12	25	7	4	275	0.36	0.65

57BYGH206	1.8	51	6.6	1	6.6	8.2	7.2	6	275	0.36	0.65

57BYGH218	1.8	51	2.6	2	1.3	4	9	4	275	0.36	0.65

57BYGH402	1.8	56	12	0.6	20	25	8	6	300	0.4	0.7

57BYGH420	1.8	56	3.6	2	1.8	2.5	9	6	300	0.4	0.7

57BYGH502	1.8	67	3.4	2	1.7	3	10	6	360	0.5	0.82

57BYGH506	1.8	67	2.4	3	0.8	1	9	6	360	0.5	0.82

57BYGH603	1.8	78	8.6	1	8.6	18	14.5	6	480	0.68	1

57BYGH633	1.8	78	3	3	1	1.6	13.5	6	480	0.68	1

57BYGH800	1.8	84	7.5	1.5	5	10	16	8	530	0.65	1.13

57BYGH115-003	1.8	115	6.3	3	2.1	9	25	4	810	0.89	1.55

57BYGH115-007	1.8	115	4.2	4.2	1	2.3	19.5	8	810	0.89	1.55
