| Prod Model: |
JK57BYG027B |
| Color: |
Silvery or Black |
| Step Angle: |
1.8 Degree |
| Holding Torque: |
7.0 Kg.Cm |
| Current: |
1 a |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Application: |
Cutting Plotter |
| Operate Mode: |
Two-Phase |
| Certification: |
Ce/RoHS |
| Brand: |
Jkongmotor |
Product Description

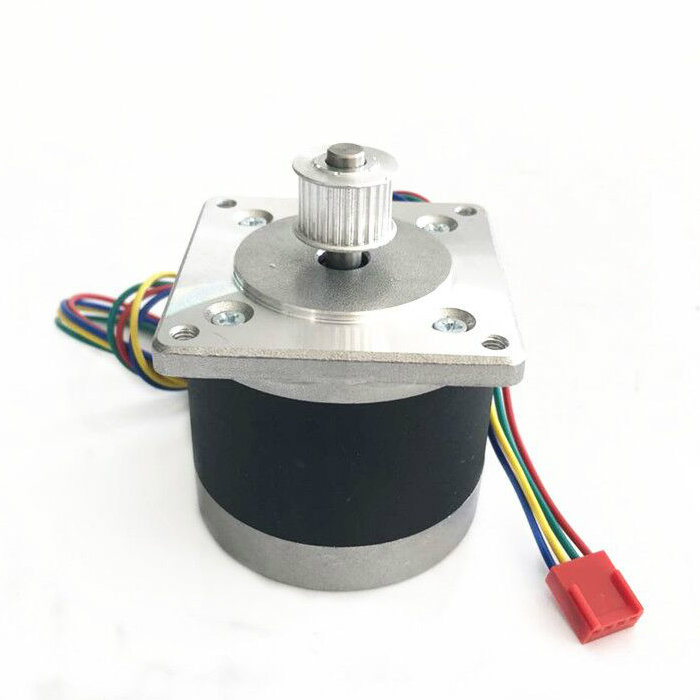

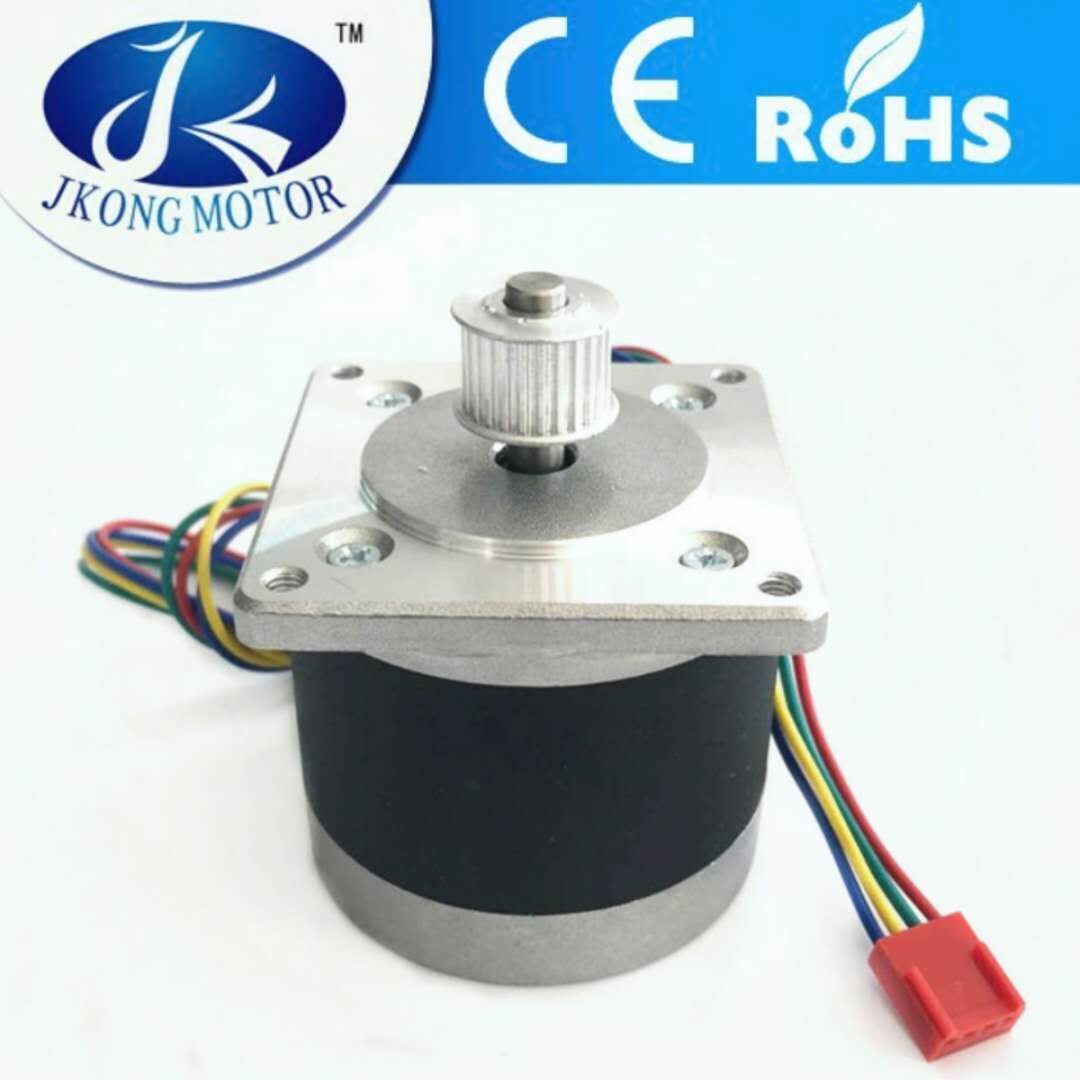

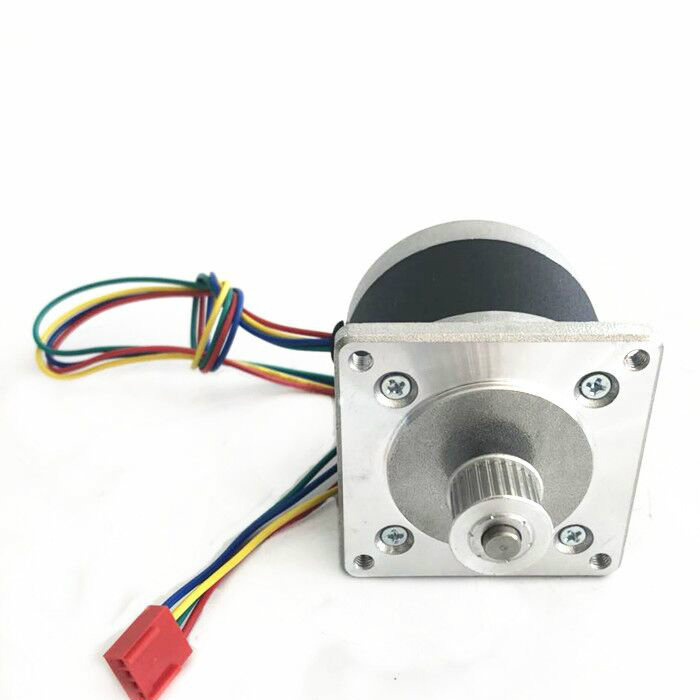

1.8 degree cutting plotter nema 23 stepper motor
Feartures & Benifits:
- NEMA23 frame size
- High step accuracy and resolution
- Low vibration and noise
- Can be customized for winding current, shaft options and cables and connectors.
- CE certified and ROHS compliant
- Quality is my culture .
Applications:
Used for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertising instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
cutting plotter Y AXIS step motor, 57BYG027B Engraving machine stepping motor
Genaral Specification:
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N

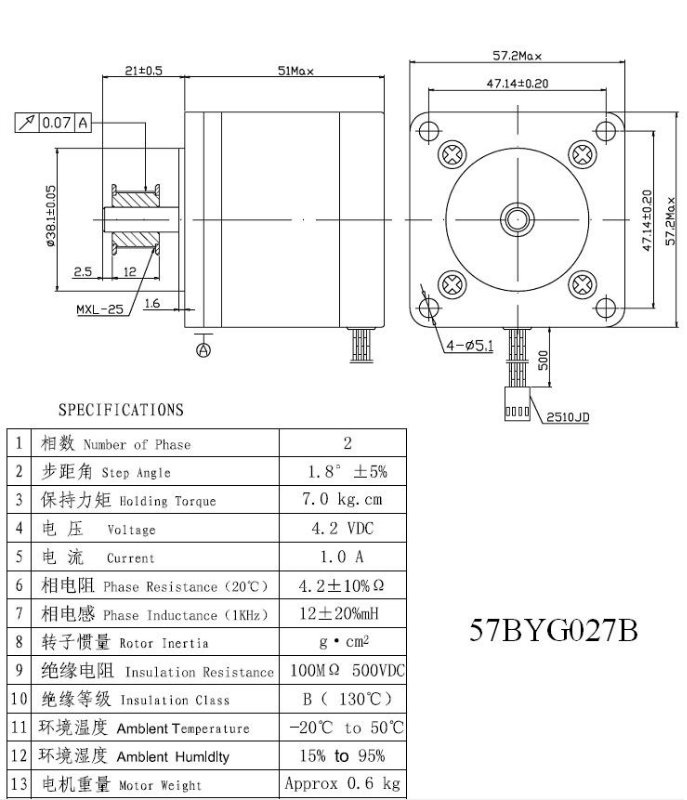

Electrical Specification:
number of phase: 2 phase
step angle: 1.8 degree
holding torque: 7.0Kg.cm
voltage: 4.2VDC
current: 1.0A
phase resistance: 4.2 ± 10% Ω
phase inductance: 12 ± 20% mh
insulation class: B clasee
WHY YOU CHOOSE US:
Q1 Why choose us?
•We are one Professional manufacturer with stepper motor, brushless dc motor and pmdc motor •
We have the professional production lines of banners and printing. We have over 80 employees.
•we can design and produce the parameter, shaft , endbell ..., according your requests.
•Excellent Service,Reasonable Price,Timely Delivery
•Full inspection before Packing,100% quality Guarantee
•Sample order& Small quantity is Acceptable
•OEM is available
Q2. Are you manufacturer?
Yes, we are manufacturer, we have more than 10 years design experience and export experience
Q3. what is your payment terms ?
We accept T/T , PAYPAL, L/C etc
Q4. Sample&production lead time?
Sample order:within 7-10 days Mass order: within 25 days.
Q5. How can I order ?
The order process is : Discussing-drawing confirm -Offering confirmation ---Invoice for payment --Production --Delivery
Q6 : How to shipping?
We can offering our shipping service to you ( like C&F or DDU terms), you can aslo choose your agent in FOB terms.
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.
High quality.
Competitive price,
Good Packing,
Fast Delivery.
Timely after-sales service.

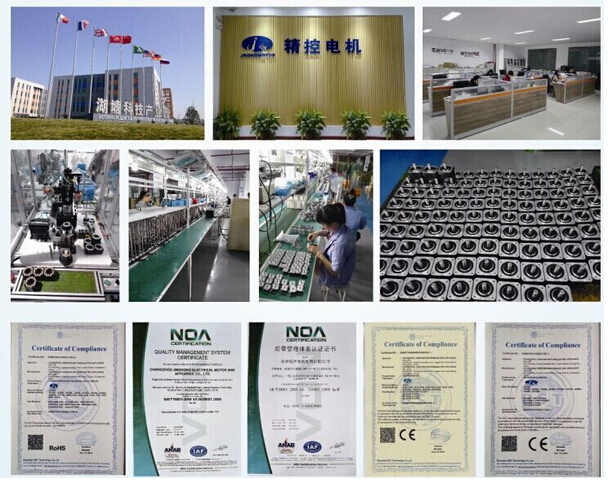

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
