1.8degree 42mm 2 Phase Hybrid Stepper Motor 42HS60-1206

Name: 1.8degree 42mm 2 Phase Hybrid Stepper Motor 42HS60-1206
Brand: all-electronics-online.com
SKU: 726843505
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 7-9.28/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK42HS60-1206
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Function:	Running
Operate Mode:	by Stepper Driver
Certification:	Ce; RoHS
Brand:	Jk

Product Description

1.8 degree 2 Phase hybrid stepper motor NEMA17/ nema17 stepping motor for 3d printer /7.2v bipolar stepper motor/ 42HS60-1206 stepper motor /5.6kg.cm double shaft step motor ROTOR TORQUE 280g.cm

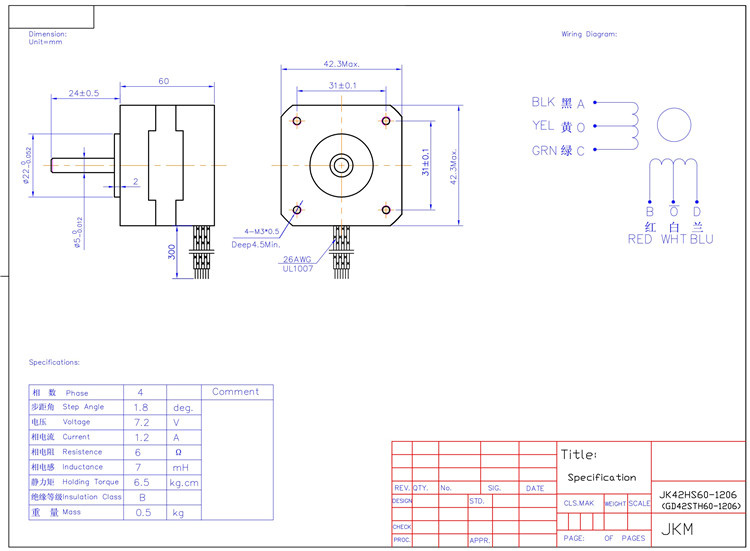

General Specification

Step Angle:1.8°
Temperature Rise:80°Cmax
Ambient Temperature:-20°C~+50°C
Insulation Resistance:100MΩ Min.,500VDC
Dielectric Strength:500VAC for 1s 3mA
Shaft Radial Play:0.02Max.(450g-load)
Shaft Axial Play:0.08Max.(450g-load)
Max.radial force:28N(20mm from the flange)
Max.axial force:10N

Product introduction

1.Model Number : JK42HS60-1206
2.Current / Phase : 1.2A
3.Resistance/Phase:6Ω
4.Inductance / Phase :7MH
5.Holding Torque : 5.6Kg.cm
6.Lead Wire (No.): 6
7.Function: Control
8.Certification: CE, ROHS, ISO9001
9.Applications: Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.

Matching Stepper motor Driver: JK0220 , JK0230

ABOUT OUR FACTORY AND OUR PRIDUCTS

WHY YOU CHOOSE US:

We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd

Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.

High quality .
Competitive price ,
Good Packing ,
Fast Delivery .
Timely after-sales service.

Believe that we will do our best!

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
