Prod Model:	HXWTp1.8m-T
Type:	Offset
Drive Type:	Manual
Polarization:	Linear/Circular
Size:	1.8m
Color:	Black
Warranty:	1 Year
Enterprise Nature:	Manufacturer
Customized:	Available
Certificate:	ISO9001
Market:	Global
Usage:	Broadcasting Antenna
Usage Occasion:	Flyaway Antenna, Portable Antenna
Operating Wavelength:	C-Band, Ku-Band
Material:	Carbon Fiber
Sturcture Form:	Tripod Mount

Product Description

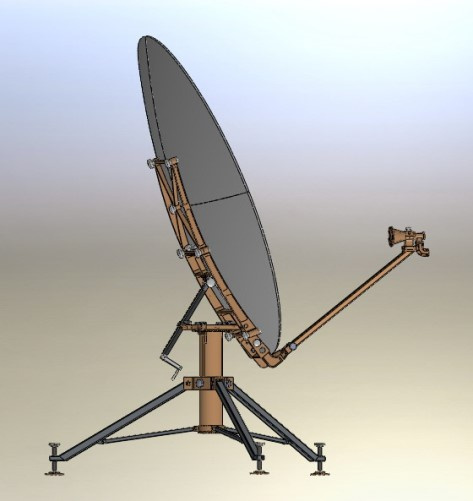

1.8m Carbon Fiber Flyaway Antenna

Features:
4 Carbon fiber pannels
High gain and excellent sidelobe performance
10 Minutes Setup
Easy & fast fine elevation adjustment
Two cases

Approvals or Compliance:
ASIASAT
APT
CHINA SATCOM
SINOSAT
INTELSAT
EUTELSAT

Main parts:
Feed horn
OMT & Filter
Reflector
Back structure
Tripod mount

Options:
Amplifier Holder
Customized available

Specification of 1.8m Carbon Fiber Flyaway Antenna

R.F SPECIFICATIONS	C-Band			Ku-Band
	RECEIVE	TRANSMIT		RECEIVE	TRANSMIT
1. Frequency(GHz)	3.625-4.2	5.85-6.425		12.25-12.75	14-14.5
	3.4-4.2 ★	5.85-6.725 ★		10.95-12.75 ★	13.75-14.5 ★
2. Typical Gain(dBi)	34.55 at 3.8GHz	38.2 at 6.0GHz		44.57 at 12.5GHz	45.36at14.25GHz
3. VSWR	1.25:1	1.25:1		1.25:1	1.25:1
4. Antenna Noise Temperature(K)	2Port Feed			2Port Feed
10°Elevation	38K			43K
5. Typical G/T at 20°EL	17.3dB/K (4.0GHz, 30K LNA)			24dB/K (11.725GHz, 70K LNA)
6. Power Handling Capability		5KW/Port			1KW/Port
7. Feed Interface	CPR-229	CPR-137		WR-75	WR-75
8. Feed Insertion Loss	0.2dB	0.15dB		0.25dB	0.2dB
9. Tx to Rx Isolation	≥85dB			≥85dB
10. Axial Ratio (dB)	1.5dB	1.0dB
11. Cross Pol Isolation
On Axis	≥35dB			≥35dB
12. Sidelobes	CCIR.580-6			CCIR.580-6
MECHANICAL SPECIFICATION		ENVIRONMENTAL SPECIFICATION
1. Antenna Type	Offset	1. Wind Loading, Operational			≤34mph(54km/h)
2. Drive Type	Manual
3. AZ Travel	0 to 360°	2. Ambient Temperature			-40°C to 60°C
4. EL Travel	5° to 90°	3. Rain			100mm/h
5. POL Travel	±90°	4. Relative Humidity			0 to 100%
6. Reflector Material	Carbon fiber	5. Solar Radiation	360 BTU/h/ft²(1000Kcal/h/m²)
7. Reflector Segments	4	6. Ice		25mm on all surface or 13mm on all surface with 130km/h wind gusts
8. Mount Type	Tripod	Net weight(kg) 20 31		Gross weight(kg) 43 59
9. Measures& weights Mount case Panel case	Case size(mm) 1115460600 10403651180
