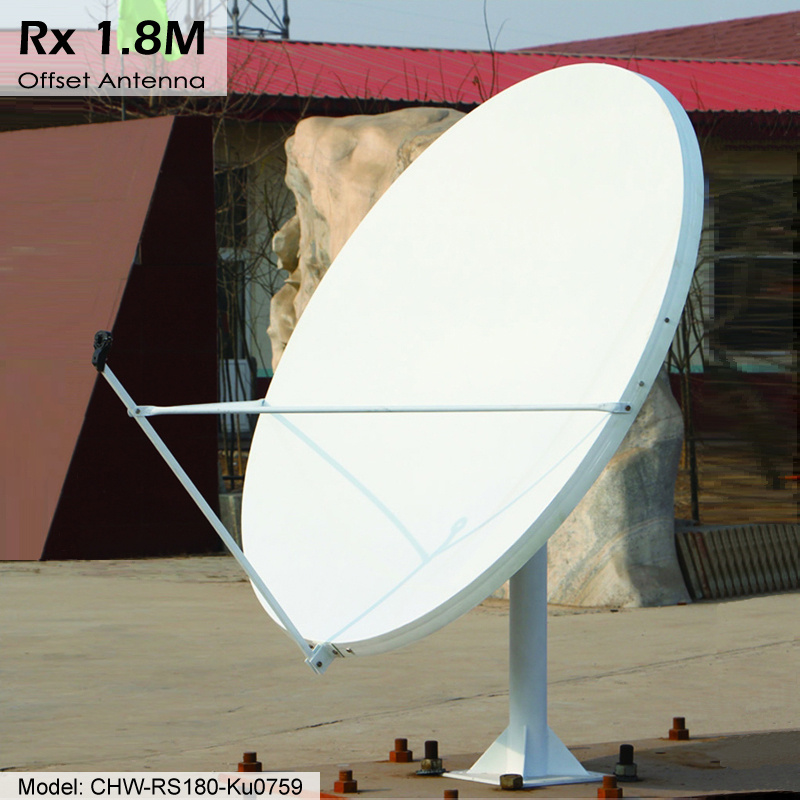

1.8m Rx Only Satellite Antenna (Offset)
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CHW-RS180-Ku0759 |
| Usage: |
Broadcasting Antenna |
| Operating Wavelength: |
Microwave |
| Material: |
Al |
| Directionality: |
Directional Antenna |
Product Description

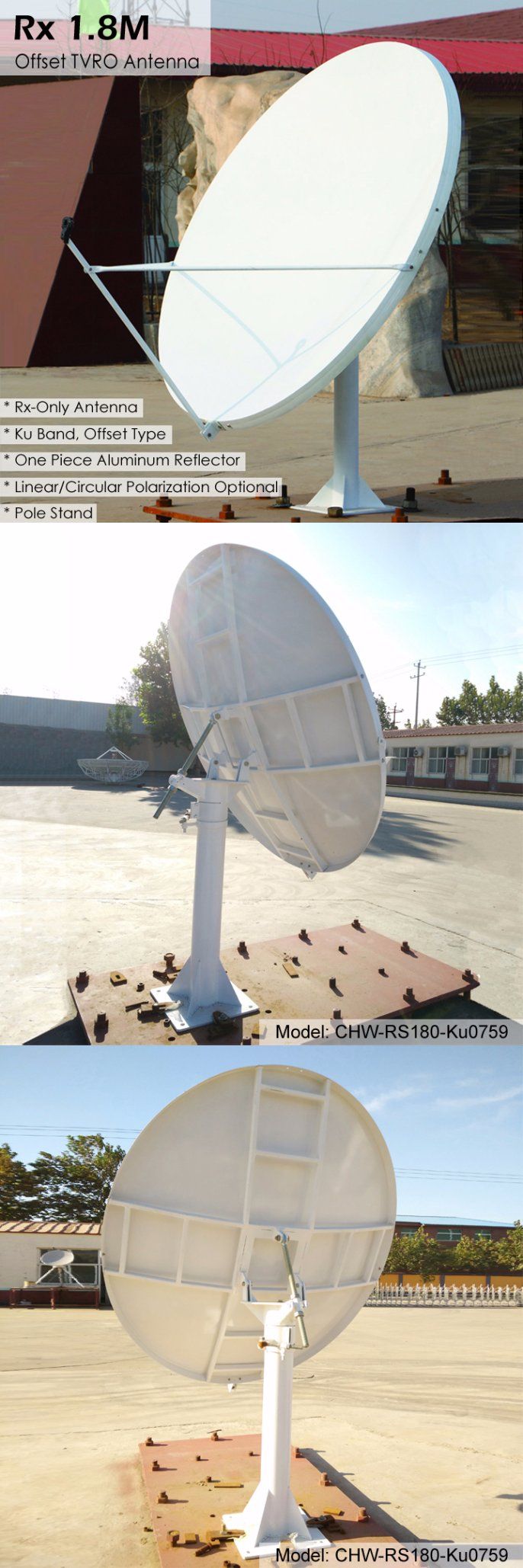

TVRO Satellite Antenna 180CM
180cm / 6 feet
Offset Antenna, Ku Band
One Piece Alumium Reflector
Linear/Circular Polarization Optional
Pole Stand, Manual Control
Model: CHW-RS180-Ku0759
FEATURES - TVRO receive-only antenna;
- Offset, Ku band;
- One piece alumium reflector;
- linear/circular polarization optional;
- Solid structure, easy installation, good stability;
- High gain, low sidelobe, high cross-polarization isolation;
- Pole stand, manual control;
MANUFACTURING TECHNIQUES - The reflector is made of a whole piece of aluminum sheet with high accuracy for better gain;
- Every detail work is concerned to make products perfect, such as strong structural design, fine welding, smooth edge, etc.;
- All steel parts will be processed by sand blasting first to remove the rust, then zinc galvanized;
- When all parts ready, antennas will be assembled and tested the electrical performance well in factory, then disassembled again for painting and packing;
- Before painting, every part will be degreased for better adhesion.
All these work we have done in factory will ensure the final installation easier and less stress.Packing:
Reflectors and accessories are packed by wooden boxes, stand pole in bulk; or as customer's request.
Main Parts Including:
Antenna reflector, back structurer, elevation screw rod, pole stand, etc.
Options:LNB, non-penetrating mount, etc.SPECIFICATION ELECTRICAL
SPECIFICATIONS | Items | Ku Band Receive |
| Frequency (GHz) | 10.95-12.75 |
| Gain (dB) | ≥45.59+20lg(f/12.5) |
| VSWR | ≤1.30:1 |
| Beam Width (-3dB) | ≤0.89° |
| Noise Temperature (K, EL 20°) | ≤55 |
| Feed Interface | WR-75 |
| Cross Polarization Isolation | ≥27 |
| Axial Ratio (dB) | ≤3.0 |
| First Side (dB) | ≤-14 |
| Sidelobe | 52-10lg(D/λ)-25lg(θ)dBi (100λ/D)°≤θ≤20° |
MECHANICAL
SPECIFICATIONS | Antenna Type | Offset Antenna |
| Drive Mode | Manual |
| Azimuth Range | 0° - 360° |
| Elevation Range | 5° - 90° |
| Polarization Range | ±90° |
ENVIRONMENTAL
SPECIFICATIONS | Operational Wind Speed | 20m/s |
| Lower Precision Work Wind Speed | 40m/s |
| Survival Wind Speed | 60m/s |
| Ambient Temperature | -20ºC to -55ºC |
| Relative Humidity | 5% - 95% |
CERTIFICATES
FAQ 1. Are you manufacturer or trading company?
We are manufacturer with ISO9001:2008 certification and TUV audited report. Our factory has devoted in producing satellite antennas since 1995.
2. Can you make the products according our sample or drawing?
Yes, we can.
3. Can you print our logo on the dish?
Yes, as long as you have legal right to the mark.
4. What's your MOQ?
We can receive small orders or big orders as customers' need for our regular models.
5. What payment do you receive?
T/T, or L/C at sight.
6. What's your delivery time?
Normally 20-30 days according to order conditions. If you have urgent order or special requirements, please let us know in advance in case of any delay.
7. How can you ensure your products in good quality?
Here is our QC system working in the whole production:
1) Checking all raw materials before they entering warehouse;
2) Checking the moulds before production;
3) Checking the first sample's appearance, and test the electrical performance;
4) Sampling inspection during lot production;
5) Checking all the parts before & after coating;
6) Checking all the products before shipping.
Also, third-party inspection is accepted.CONTACT US
..................................................................................................................................................................................
Hebei Chaowei Communication Equipment Co., Ltd has devoted in manufacturing satellite dish antenna products since 1995 with the former name as Gaocheng Newstar Satellite TV Equipment Factory.
Our products include KU band and C band outdoor TV satellite dish antennas for global DTH markets, and communication antennas for satellite communication markets.
The factory covers 28, 000 square meters with more than 100 qualified staffs. Product output keeps 10, 000 sets per day for fine stamping machines and automatic spraying lines.
It's our great honor that we are one of the first qualified manufacturers which approved by Ministry of Information and Industry of the People's Republic of China (MIIC) since 2000. And we have obtained GB/T19001-2000 & ISO9001: 2008 Certificates of Quality Management System issued by World Standards Certificate Center inc.
With modernized management, advanced technology and strict quality control, our products have received good reputation from worldwide customers.
We will persistent in providing high quality products and excellent service to make our customers satisfied.
