1.8m Rx-Tx Vsat Antenna (Ring Focus)
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CHW-TS180-Ku0559 |
| Usage: |
Broadcasting Antenna |
| Operating Wavelength: |
Microwave |
| Material: |
Al |
| Directionality: |
Directional Antenna |
| Nature Of Operation: |
Receiving and Transmitting Antenna |
Product Description

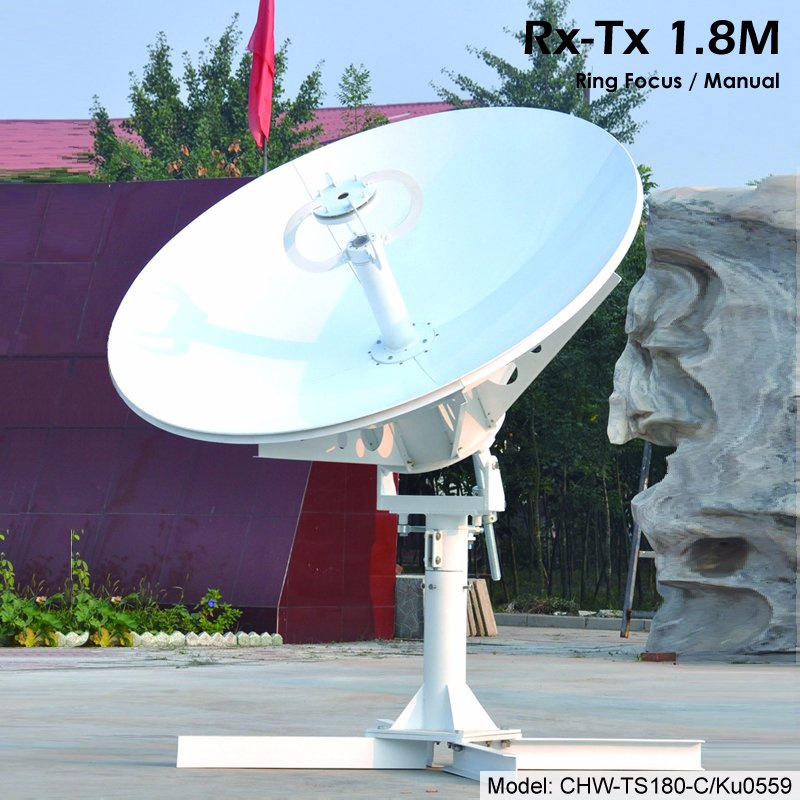

VSAT Antenna 1.8M
1.8M / 6feet
Ring Focus, Rx-Tx
C/Ku Band Optional
Linear/Circular Polarization Optional
Pole Stand, Manual
Model: CHW-TS180-C/Ku0559

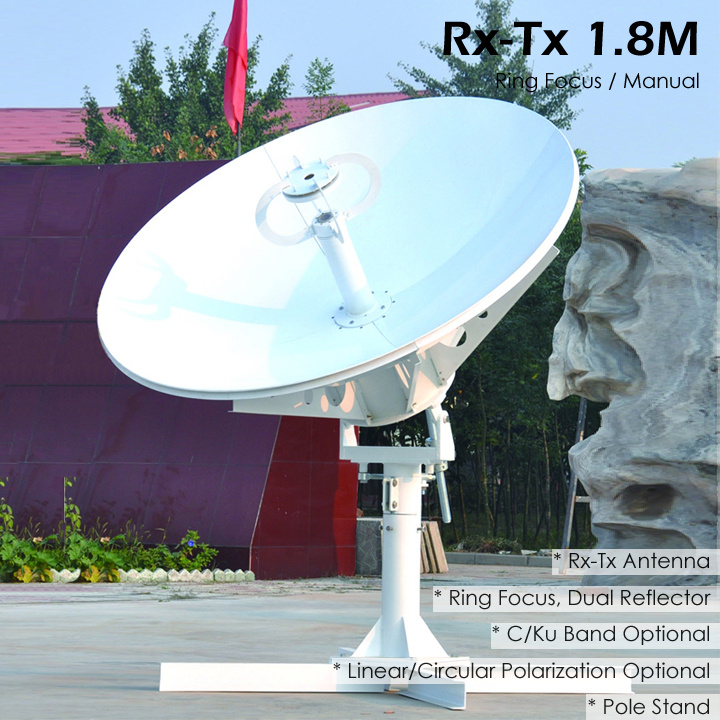

FEATURES - Receiving & transmitting VSAT antenna;
- Ring Focus, dual reflector;
- C/Ku band optional, linear/circular polarization optional;
- Solid structure, easy installation, good stability;
- High gain, low sidelobe, high cross-polarization isolation;
- Pole stand, manual control;
MANUFACTURING TECHNIQUES - The reflector panels are made of high quality aluminum sheets and shaped by stretch-forming method to get smooth and high accuracy surfaces;
- Every detail work is concerned to make products perfect, such as fine welding, smooth edge, no cutting burrs, etc.;
- All steel parts will be processed by sand blasting first to remove the rust, then zinc galvanized;
- When all parts ready, antennas will be assembled and tested the electrical performance well in factory, then disassembled again for painting and packing;
- Before painting, every part will be degreased for better adhesion, and then painted twice. Firstly, the epoxy zinc yellow primer is used to protect the zinc coating, then white paint is used as finish coat for better anti-rust quality.
All these work we have done in factory will ensure the final installation easier and less stress.Packing:
By wooden boxes.
Main Parts Including:
Antenna reflectors, ribs, reflector central hub, pole stand, sub-reflector, feed horn, etc.
Options:De-icing system, activity / fixed foundation, etc.SPECIFICATION ELECTRICAL
SPECIFICATIONS | Items | Ku-Receive | Ku-Transmitting | Ka-Receive |
| Frequency (GHz) | 10.95-12.75 | 13.75-14.5 | 18.3-20.8 |
| Gain (dB) | ≥45.1+20lg(f/12) | ≥46.6+20lg(f/14) | ≥49.67+20lg(f/20) |
| VSWR | ≤1.25:1 | ≤1.25:1 | ≤1.30:1 |
| Beam Width (-3dB) | ≤0.95° | ≤0.80° | / |
| Beam Width (-10dB) | ≤1.52° | ≤1.25° | / |
| Noise Temperature (K) | 2 Ports | / | 2 Ports |
| 10° EL | ≤58 | / | / |
| 20° EL | ≤51 | / | / |
| 30° EL | ≤49 | / | / |
| Power Handling Capability | / | 1 | / |
| Feed Interface | WR-75 | WR-75 | WR-51 |
| Feed Insertion Loss (dB) | ≤0.35 | ≤0.35 | ≤0.9 |
| Port to Port Isolation | ≥85 | ≥85 | ≥85 |
| Cross Polarization Isolation | ≥35 | ≥35 | ≥35 |
| First Side (dB) | ≤-14 | ≤-14 | ≤-14 |
| Sidelobe | 29-25lg(θ)dBi 1°≤θ≤20° |
ENVIRONMENTAL
SPECIFICATIONS | Operational Wind Speed | 20.8m/s |
Survival Wind Speed
(Locked Upwards) | 55m/s |
| Ambient Temperature | -40ºC to 60ºC (Outdoor) |
| Relative Humidity | 5% to 95% |
| Seismic (Survival) | 0.3G's (Horizontal), 0.15G's (Vertical) |
| Solar Radiation | 360BTU/h/ft² |
| Radial Ice | 3cm |
MECHANICAL
SPECIFICATIONS | Antenna Type | Ring Focus Antenna |
| Stand Type | Pole Stand |
| Drive Mode | Manual |
| Azimuth Range | 0°-360° |
| Elevation Range | 5°-90° |
| Polarization Range | ±90° |

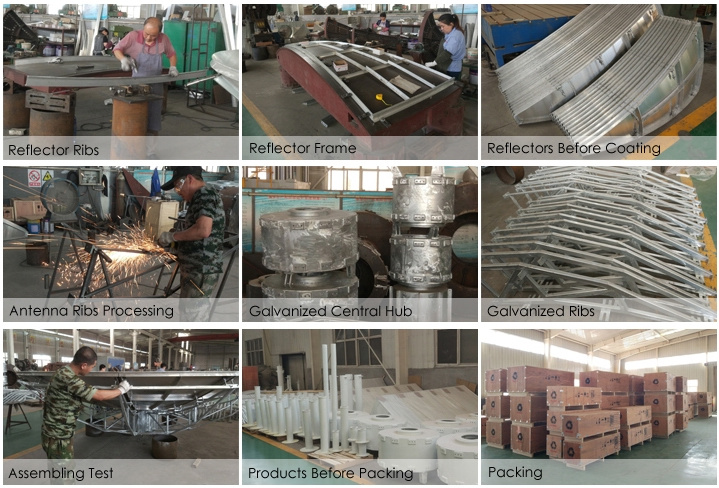

MANUFACTURING PROCESSES

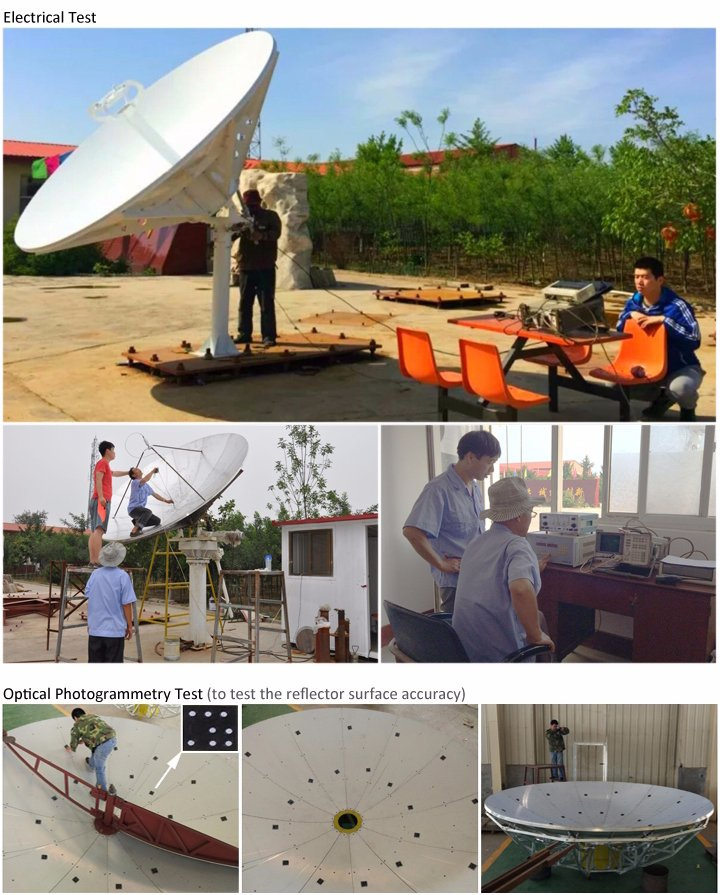

FACTORY TEST

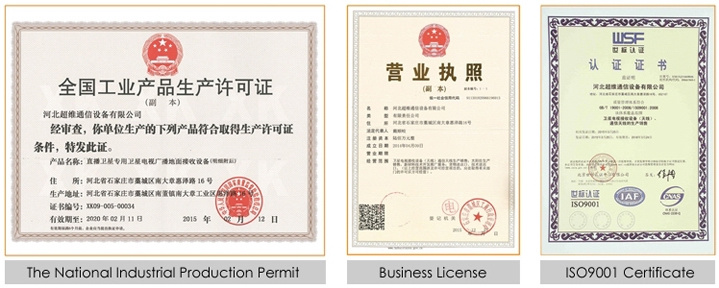

CERTIFICATES
FAQ 1. Are you manufacturer or trading company?
We are manufacturer with ISO9001:2008 certification and TUV audited report. Our factory has devoted in producing satellite antennas since 1995.
2. Can you make the products according our sample or drawing?
Yes, we can.
3. Can you print our logo on the dish?
Yes, as long as you have legal right to the mark.
4. What's your MOQ?
We can receive small orders or big orders as customers' need for our regular models.
5. What payment do you receive?
T/T, or L/C at sight.
6. What's your delivery time?
Normally 20-30 days according to order conditions. If you have urgent order or special requirements, please let us know in advance in case of any delay.
7. How can you ensure your products in good quality?
Here is our QC system working in the whole production:
1) Checking all raw materials before they entering warehouse;
2) Checking the moulds before production;
3) Checking the first sample's appearance, and test the electrical performance;
4) Sampling inspection during lot production;
5) Checking all the parts before & after coating;
6) Checking all the products before shipping.
Also, third-party inspection is accepted.CONTACT US
..................................................................................................................................................................................
Hebei Chaowei Communication Equipment Co., Ltd has devoted in manufacturing satellite dish antenna products since 1995 with the former name as Gaocheng Newstar Satellite TV Equipment Factory.
Our products include KU band and C band outdoor TV satellite dish antennas for global DTH markets, and communication antennas for satellite communication markets.
The factory covers 28, 000 square meters with more than 100 qualified staffs. Product output keeps 10, 000 sets per day for fine stamping machines and automatic spraying lines.
It's our great honor that we are one of the first qualified manufacturers which approved by Ministry of Information and Industry of the People's Republic of China (MIIC) since 2000. And we have obtained GB/T19001-2000 & ISO9001: 2008 Certificates of Quality Management System issued by World Standards Certificate Center inc.
With modernized management, advanced technology and strict quality control, our products have received good reputation from worldwide customers.
We will persistent in providing high quality products and excellent service to make our customers satisfied.
