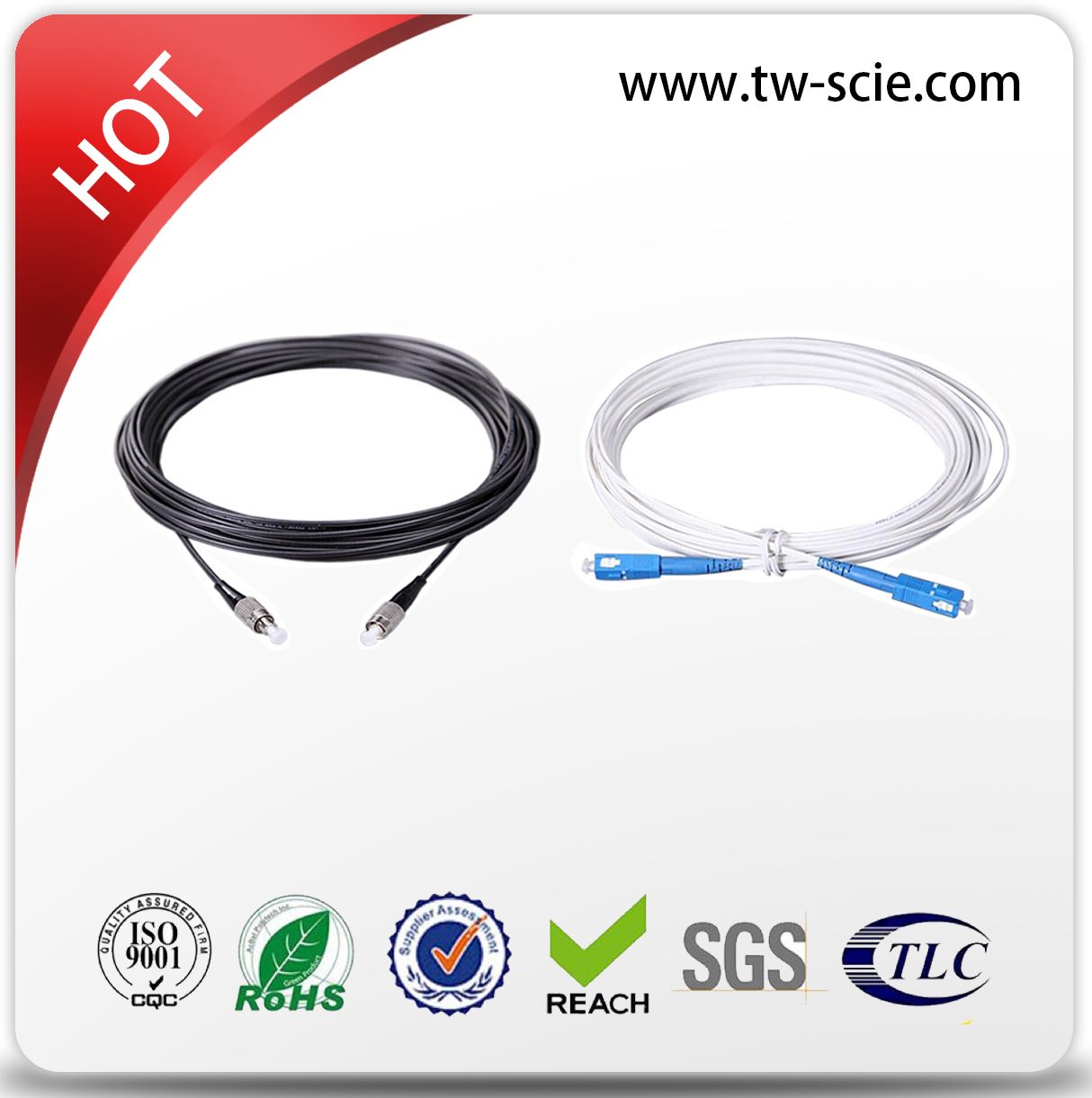

1 Core FTTH Patch Cord Drop Cable Patch Cord

Name: 1 Core FTTH Patch Cord Drop Cable Patch Cord
Brand: all-electronics-online.com
SKU: 824571305
Availability: InStock
Rating: 5 (60 reviews)

Price:	US $ 0.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH Patch Cord
Place Of Origin:	China (Mainland)
Brand Name:	Tw-Scie or OEM
Model Number:	2.0*3.0mm Patch Cord
Installation:	Indoor
Brand Of Fiber:	Customized
Loose Tube:	PBT
Waterblocking Material:	Water Blocking Tape
Outer Sheath Material:	LSZH
Outer Sheath Color:	Black, White
Armour Material:	Corrugated Steel Tape
Application:	Communication
Certification:	ISO9001
Type:	FTTH Patch Cord
Connection Structure:	FTTH Patch Cord
Sheath Material:	LSZH

Product Description

1. Description
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. BD patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

2. Features
a. Low Insertion Loss
b. High Return Loss
c. Good Repeatability
d. Good Exchangeability
e. High Temperature Stability

3. Applications
a. Optical Fiber Communication Systems
b. Optic-fiber Data Communications
c. Optic-fiber Data Communications
d. Optic-fiber Access Networks
e. LAN Optic-fiber Sensors

4. Parameters

Mode	Single mode		Multi-mode
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.3dB	≤0.2dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm
Standards-Compliant	ROHS,IEC and GR-326

Fiber type	Single mode:9/125-G652D 9/125-G657
Fiber type	Multi-mode: 50/125-OM2 62.5/125-OM1 50/125-OM3
Fiber	Corning,China Fiber,other
Connector	SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing	PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Cord type	1 core, 2 core
Cable diameter	2.03.0mm or 2.05.0mm
Cable jacket	PVC,LSZH
length(M)	0.5m,1m,3M,5m,10m,20m,200m or other

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
