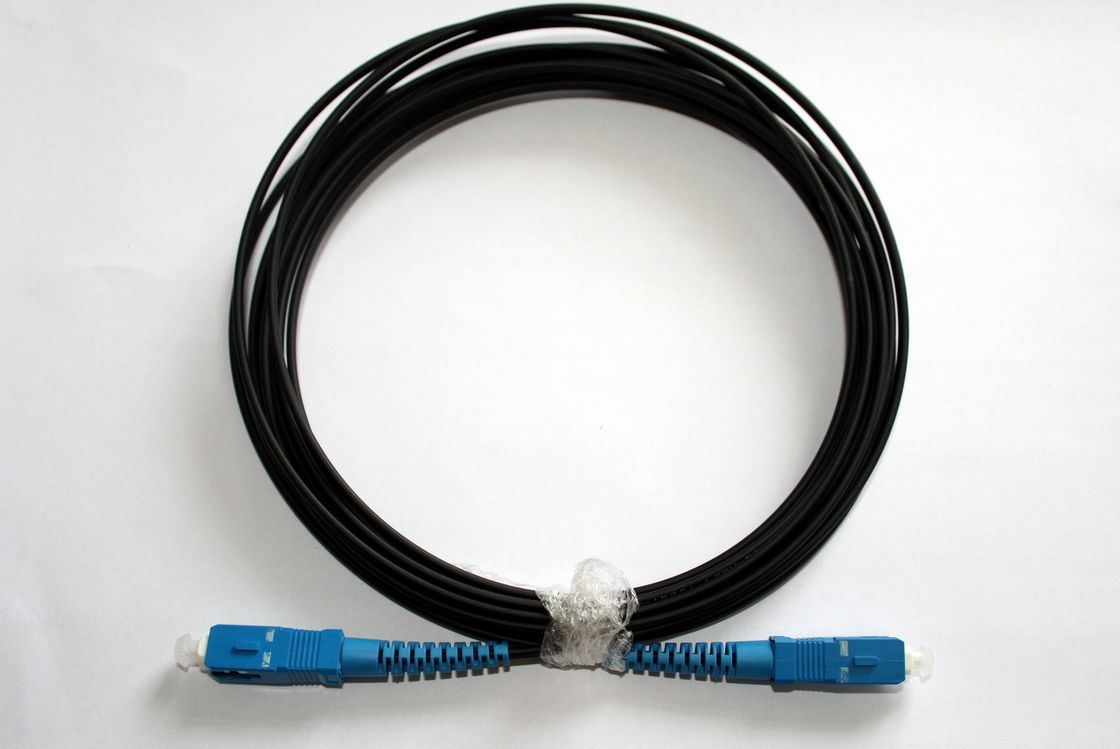

1 Core Simplex Sc Upc Black 3m FTTH Drop Cable G657A1
| Price: |
US $ 0.5-15/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
FTTH drop cable |
| Item Name: |
Sc/Upc FTTH Drop Cable |
| Brand Name: |
Df FTTH Drop Cable |
| Keywords: |
FTTH Drop Cable/FTTH Patch Cord |
| Core Type: |
Simplex |
| Insert Loss: |
0.2dB |
| Color: |
Black/White or Customied |
| Cable Diameter: |
0.9,2.0,3.0mm or Customized |
| Ferrule: |
Reinforced Zirconium Dioxide |
| Length: |
1m,2m,3m or Customized |
| OEM: |
Available |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
Product Description
1 Core Simplex Sc Upc Black 3m FTTH Drop Cable G657a1Drop cable defenition
An above ground or underground line which connects a terminal of a distribution cable to a subscriber's premises. Such a line may carry telephone service, cable TV, a link to a network, electric power, and so on. It may consist, for example, of a telephone wire extending from a pole to the home of a subscriber. Also called drop (2), drop wire, or service wire
Features
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel FRP/ steel strength members ensure good performance of crush resistance to protect the fiber.
3. Novel groove design, easily strip and splice, simplified installation and maintenance, higher tensile strength.
4. Single Steel wire as the additional strength member ensures good performance of tensile strength.
5. Simple structure light weight and high practicability.
6. Novel flute design, easily strip and splice, simplify the installation and maintenance.
7. Low smoke, zero halogen and flame retardant sheath, environment-friently, good safe.
Application
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
FTTH drop cable Spec| Model NO. | Fiber Patch Cable |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125,
10G (Multimode) OM3 |
| Cable Type | Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber
PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) | UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating Temperature | -40C to 85C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Our services
Order inquiry: Keep working time from 9AM to 23PM to gurantee the first reply to clients,and 24 hours
no Cellphone power off
Order production: Keep very close touch with production department to gurantee the right delivery time to clients Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage
After shipment: Keep tracking shipping status and reporting to clients
Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR
Any doubt about FTTH/Drop Cable,please leave me an inquiry or contact me directly.

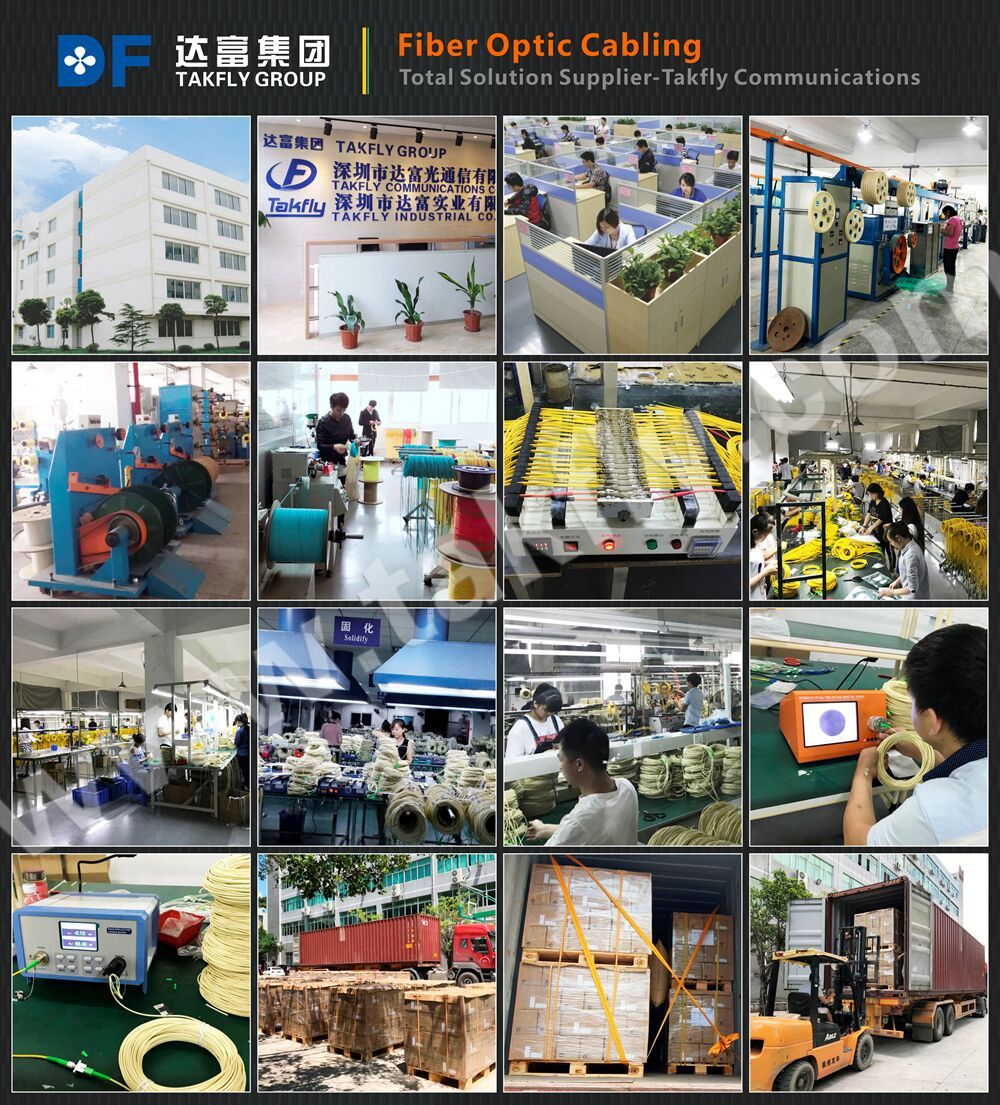

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
