| Prod Model: |
Single Core XLPE Power Cable |
| Product Name: |
1 Core Single Core XLPE Power Cable |
| Standard: |
IEC, BS, AS/NZS, SABS |
| Number Of Core: |
1 Core Single Core |
| Core Number: |
as Your Require |
| Rated Voltage: |
600V |
| Rated Temperature: |
70c |
| Armour: |
None Armour |
| Strand Number: |
1.7, 19, 37, 54, 61, 91 |
| Purity Of Copper Conductor: |
99.99% |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Stranded |
| Application: |
Housing Used |
| Sheath Material: |
XLPE |
| Range Of Application: |
Normal Electrical Used |
| Brand: |
Hongda |
Product Description

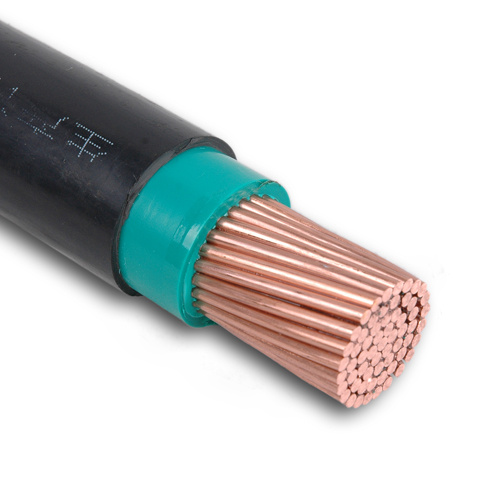

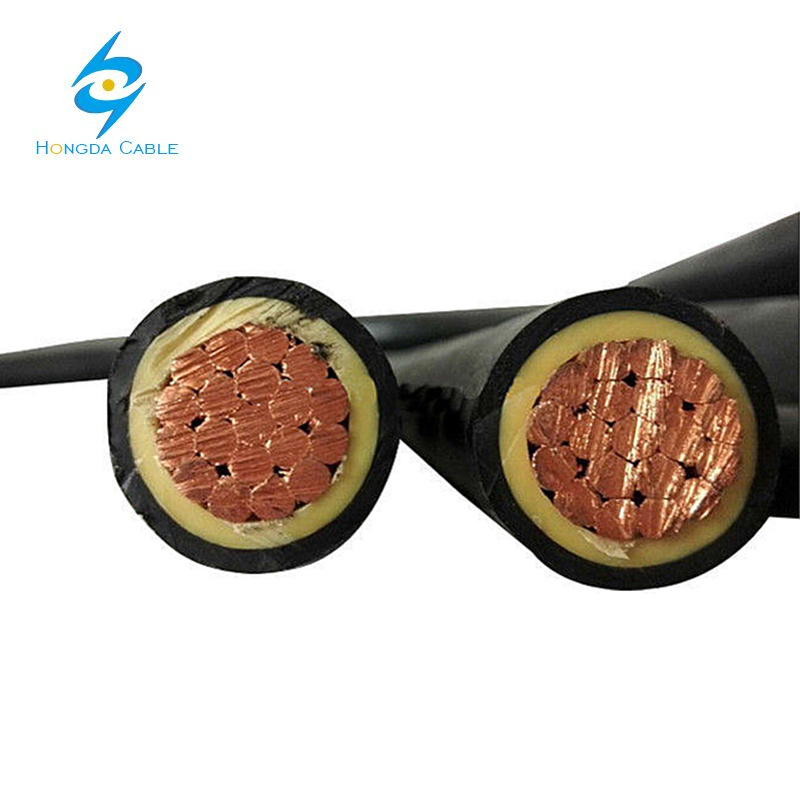

1 Core Single Core XLPE Power Cable 70mm 300mm2 500mm 630mm
1.Brief Introduction :
CU/XLPE/PVC cable is Cu /AL conductor /XLPE insulated /PVC sheath Electric power cable for laying buildings,inducts , kin tunnels,direct in ground and under water,.
For laying indoors , in tunnels, in ducts. Able to bear extermal mechanical force but not large pulling forces. Single core cables are impermissible to be laid in magnetic ducts.
2.Operating characteristics:
Rated power-frequency voltage u0/u:0.6/1 KV
Max permissible continuous operating temperature of conductor 90
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2
The anbient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter
No. of Core | Nom. cross Section Area(mm2) | Single quantity of conductor | Insu. Thick (mm) | Sheath thick (mm) | Approx. dia. Of cable (mm) | D.C resistant((Ω/km) Cu Al |
1 | 1.5~800 | 1~61 | 0.8~2.9 | 1.4~2.4 | 6.1~46.1 | 12.1~0.221 | 0~0.0367 |
2 | 1.5~400 | 1~61 | 0.8~2.6 | 1.8~2.8 | 10.5~56.0 | 119~8356 | 100~3320 |
3 | 1.5~400 | 1~61 | 0.8~2.6 | 1.8~3.0 | 10.9~60.6 | 142.0~12103.0 | 113.0~4869.0 |
4 | 2.5~400 | 1~61 | 0.8~2.6 | 1.8~3.2 | 12.7~70.0 | 232.0~16788 | 169~6708 |
5 | 2.5~400 | 1~61 | 0.8~2.6 | 1.8~3.6 | 13.6~87.0 | 272~21164 | 193~8564 |
3+1 | 4~400, 2.5~240 | 1~37 1~61 | 1.0~2.6 0.8~1.6 | 1.8~3.3 | 14.3~66.0 | 254~14562 | 211~5968 |
3+2 | 4~400, 2.5~240 | 1~61 1~37 | 1~2.6 0.8~1.6 | 1.8~3.3 | 15.2~78.2 | 345~18250 | 238~7666 |
4+1 | 4~400, 2.5~240 | 1~61 1~37 | 1~2.6 0.8~1.6 | 1.8~3.4 | 15.6~79.1 | 358~19928 | 251~8366 |
Factory
Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment

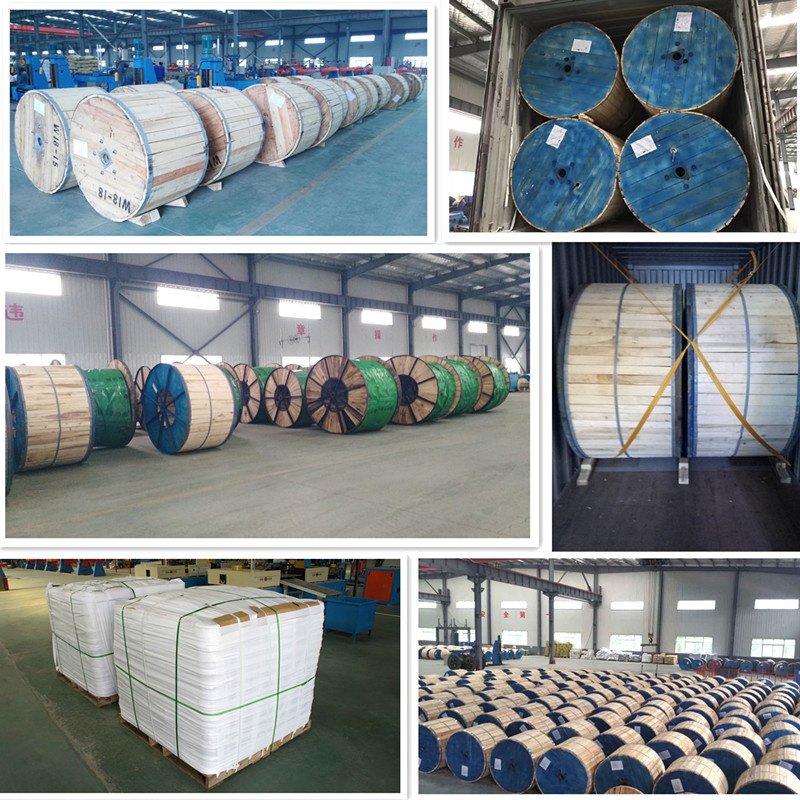

7.Packing and Transportation
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges
Certificate
FAQ
Q: Are you the factory or the trading company?
A: We are the factory.
Q: How long is your guarantee Period?
A: We uaually offer 1 year guarantee for our general products.
Q: How can I get the samples?
A: We can make the sample order. And usually we will charge for it.
But the samples fee will be return to you when you make the bulk order.
Q: Where is your factory? How can we visit your factory?
A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.
We can pick you up in the airport and the railway station.
Q; What is your MOQ?
A: It`s base on the cable type or wire type. Please contact me. We will let you know.
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
