| Prod Model: |
1-CYKFY Cable |
| Standard: |
IEC 60332,1, BS5307 |
| Rated Voltage: |
0.6/1 Kv AC |
| Application: |
Distribution Points |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
SGS |
| Model: |
1-Cykfy |
| Brand: |
Hongda |
Product Description

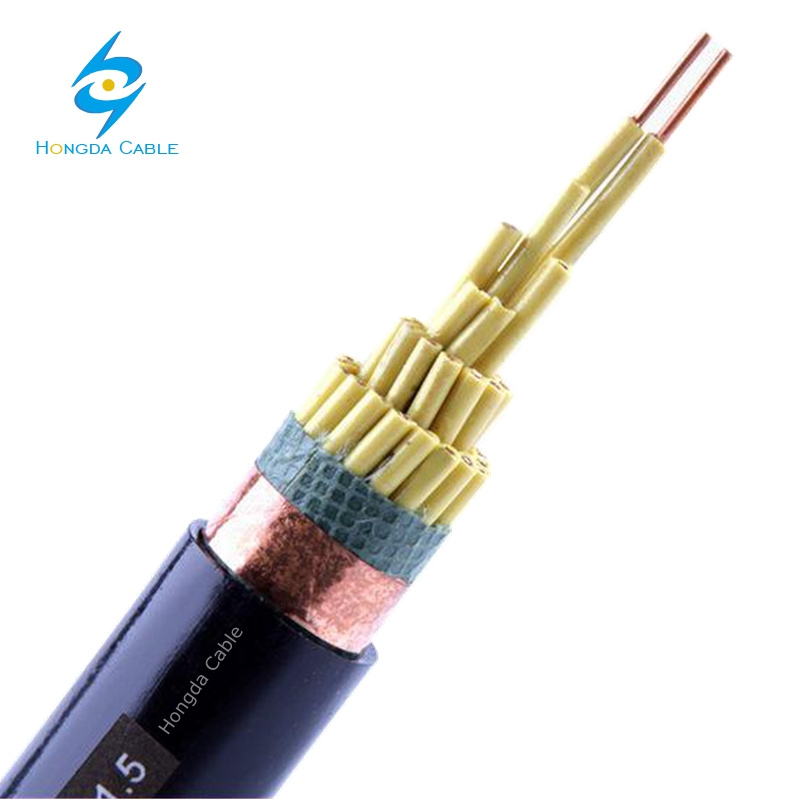

1-CYKFY Power Control Cable with Copper foil wrapped Screening
1-CYKFY Power Control Cable with Copper foil wrapped Screening - ApplicationsUsage:
The power cables with copper screening are used mainly in distribution points of high voltage and very high voltage, for connecting in systems where the resistance to interference (EMC) is required, in the circuits of pulsed supply with frequency converters and everywhere that higher requirement against penetration or radiation of interfering signals is demanded. It is possible to use them in dry or wet environment and for placement into the soil.
The cables can be placed in the environment with the explosion danger (zone 1, 2) providing compliances with the conditions of intrinsic safety according to 60079-11.
Power cable from PVC with copper screening meeting the requirements of EMC

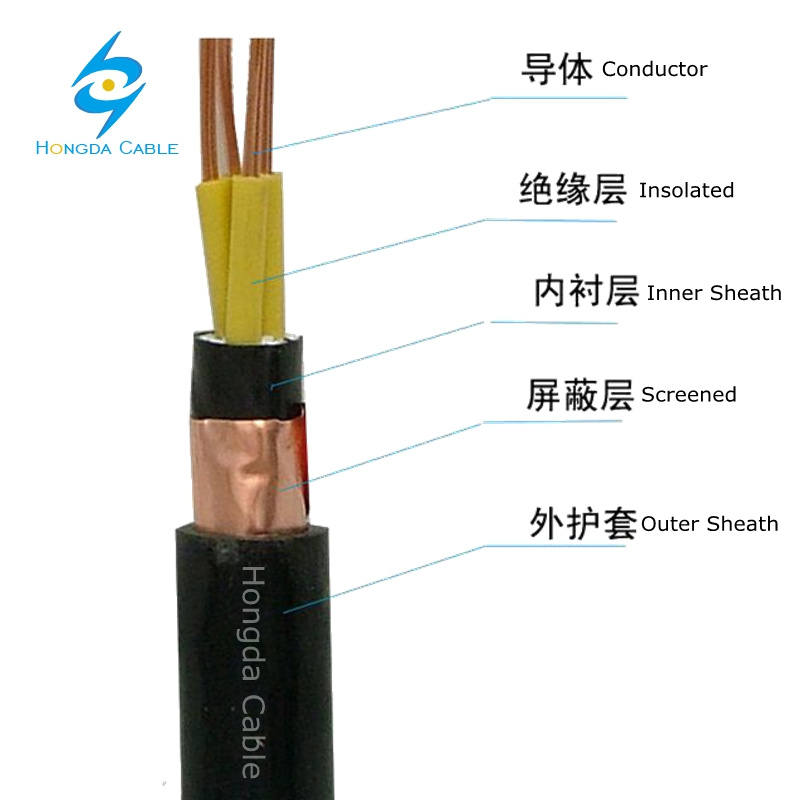

Construction:
1. Conductor Cu conductor of the category 1 or 2 according to IEC 60228
2. Insulation PVC
3. Cable core wrapping by PET foil
4. Bedding PVC
5. Screening double Cu foil wrapped in opposite directions
6. Sheath PVC
Technical parameters:
Rated voltage U0/U: 0,6/1 kV AC
Highest voltage of the Um system: 1,2 kV AC
Testing voltage between cores: 4 kV AC 5 min
Testing voltage between core and screening: 4 kV AC 5 min
Surrounding temperatures (fixed placement): - 30°C up to + 70°C
Surrounding temperatures (during installation): -5°C up to +50°C
Minimum bending radius (fixed placement): 10D
Basic characteristics:
Self-extinguishing PVC: EN 60332-1-2
Colour marking of cores: HD 308 S2
Sheath colour: black
1-CYKFY Power Control Cable Parameter
| Cores x Section Area | Insulation Thickness | Jacket Thickness | Maximum resistance at 20ºC | Cable Diameter | Copper approx. weight | Cable Approx. Weight | Packing Length |
| mm2 | mm | mm | Ω/km | mm | kg/km | kg/km | m |
| 7 x 1 | 0.6 | 1.2 | 18.10 | 13.00 | 115 | 270 | 2750 |
| 12 x 1 | 0.6 | 1.2 | 18.10 | 15.50 | 175 | 400 | 2500 |
| 19 x 1 | 0.6 | 1.2 | 18.10 | 17.50 | 248 | 520 | 1750 |
| 2 x 1.5 | 0.7 | 1.2 | 12.10 | 11.00 | 70 | 190 | 2000 |
| 3 x 1.5 | 0.7 | 1.2 | 12.10 | 11.50 | 86 | 210 | 2000 |
| 4 x 1.5 | 0.7 | 1.2 | 12.10 | 12.50 | 110 | 250 | 2000 |
| 5 x 1.5 | 0.7 | 1.2 | 12.10 | 13.50 | 125 | 280 | 2000 |
| 7 x 1.5 | 0.7 | 1.2 | 12.10 | 4.50 | 153 | 340 | 2000 |
| 12 x 1.5 | 0.7 | 1.2 | 12.10 | 17.50 | 239 | 510 | 1750 |
| 14 x 1.5 | 0.7 | 1.4 | 12.10 | 18.50 | 297 | 560 | 1750 |
| 19 x 1.5 | 0.7 | 1.4 | 12.10 | 21.00 | 347 | 720 | 1250 |
| 24 x 1.5 | 0.7 | 1.4 | 12.10 | 24.00 | 432 | 1000 | 1000 |
| 27 x 1.5 | 0.7 | 1.4 | 12.10 | 24.50 | 477 | 1000 | 750 |
| 37 x 1.5 | 0.7 | 1.4 | 12.10 | 27.50 | 622 | 1250 | 750 |
| 48 x 1.5 | 0.7 | 1.6 | 12.10 | 31.50 | 750 | 1600 | 500 |
| 2 x 2.5 | 0.7 | 1.2 | 7.41 | 12.00 | 93 | 220 | 1500 |
| 3 x 2.5 | 0.7 | 1.2 | 7.41 | 12.50 | 119 | 260 | 1500 |
| 4 x 2.5 | 0.7 | 1.2 | 7.41 | 13.50 | 146 | 310 | 1500 |
| 5 x 2.5 | 0.7 | 1.2 | 7.41 | 14.50 | 173 | 350 | 1500 |
| 7 x 2.5 | 0.7 | 1.2 | 7.41 | 15.50 | 223 | 420 | 1500 |
| 12 x 2.5 | 0.7 | 1.4 | 7.41 | 20.00 | 358 | 680 | 1500 |
| 19 x 2.5 | 0.7 | 1.4 | 7.41 | 22.50 | 529 | 930 | 1000 |
| 24 x 2.5 | 0.7 | 1.4 | 7.41 | 26.50 | 663 | 1310 | 750 |
| 27 x 2.5 | 0.7 | 1.4 | 7.41 | 27.00 | 680 | 1400 | 750 |
| 2 x 4 | 0.7 | 1.2 | 4.61 | 13.50 | 125 | 290 | 1000 |
| 3 x 4 | 0.7 | 1.2 | 4.61 | 14.00 | 165 | 330 | 1000 |
| 4 x 4 | 0.7 | 1.2 | 4.61 | 15.00 | 206 | 400 | 1000 |
| 5 x 4 | 0.7 | 1.2 | 4.61 | 16.00 | 247 | 460 | 1000 |
| 7 x 4 | 0.7 | 1.2 | 4.61 | 17.50 | 325 | 560 | 1000 |
| 12 x 4 | 0.7 | 1.4 | 4.61 | 22.50 | 530 | 920 | 1000 |
| 2 x 6 | 0.7 | 1.2 | 3.08 | 14.50 | 167 | 350 | 1500 |
| 3 x 6 | 0.7 | 1.2 | 3.08 | 15.00 | 210 | 410 | 1500 |
| 4 x 6 | 0.7 | 1.2 | 3.08 | 16.00 | 285 | 500 | 1500 |
| 5 x 6 | 0.7 | 1.2 | 3.08 | 17.50 | 345 | 590 | 1500 |
| 7 x 6 | 0.7 | 1.4 | 3.08 | 18.20 | 430 | 719 | 1500 |
| 3 x 10 | 0.8 | 1.2 | 1.83 | 17.50 | 345 | 580 | 1000 |
| 3 x 10 | 0.8 | 1.4 | 1.83 | 18.50 | 441 | 710 | 1000 |
| 4 x 10 | 0.8 | 1.4 | 1.83 | 20.50 | 540 | 870 | 750 |
| 5 x 16 | 0.8 | 1.4 | 1.15 | 20.00 | 520 | 830 | 1500 |
| 4 x 16 | 0.8 | 1.4 | 1.15 | 21.50 | 671 | 1020 | 750 |
| 5 x 16 | 0.8 | 1.4 | 1.15 | 23.50 | 825 | 1230 | 750 |

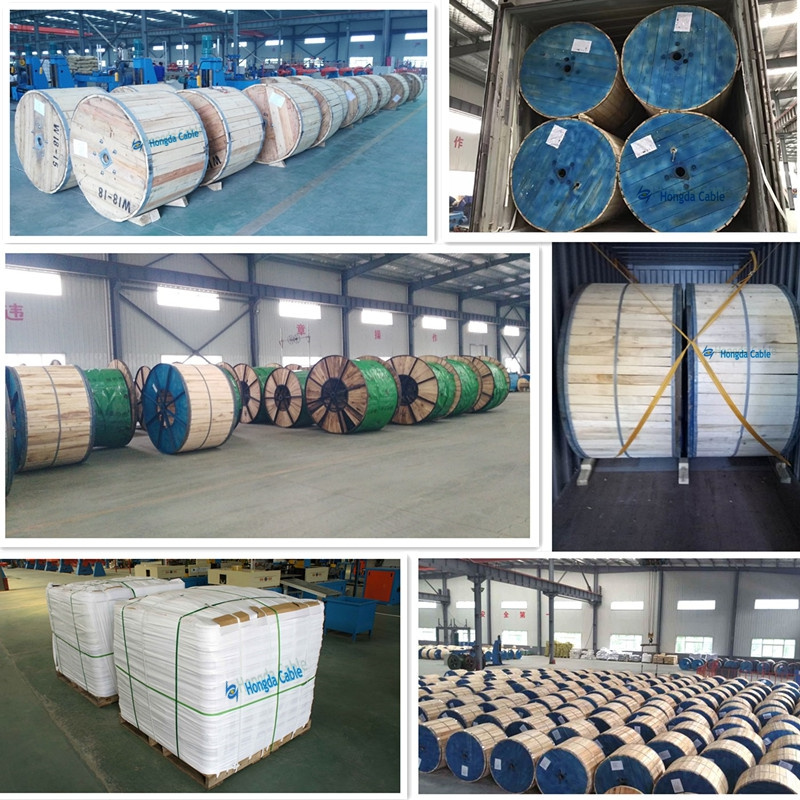

Packing & Shipping:Packing:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, Qingdao, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
