| Prod Model: |
Aluminum LED PCB |
| Size: |
8mm*8mm |
| Min. Hole Size: |
1.0mm |
| Min Line Width And Distance: |
1.0mm |
| Solder Mask: |
White |
| Silkscreen: |
Black |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
| Material: |
Aluminum |
| Brand: |
Xzg |
Product Description
Material:Aluminum base
value: therml conductivity 3.0w
board thickness:1.6mm
electric conductivity:3.0W/mK
copper thickness:1oz
Surface treatment: Lead-free HASL
Special requirement: with countersink hole blind hole
Our main process capability:

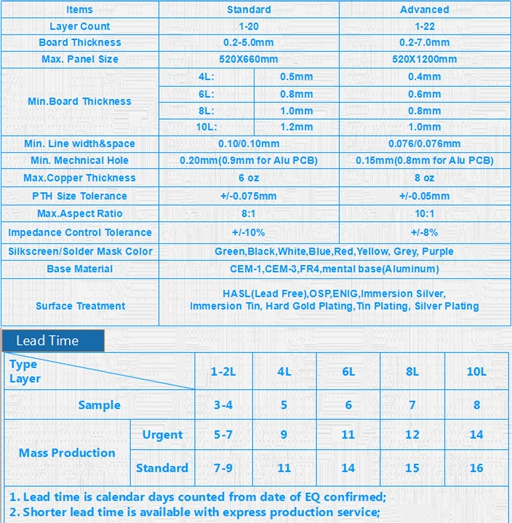

Our main process capability:Our main process capability:| Items | Standard | Advanced | | Layer Count | 1-20 | 1-24 | | Board Thickness | 0.2-5.0mm | 0.2-7.0mm | | Max. Panel Size | 520X660mm | 680X1200mm | | Min. Mechnical Drill | 0.2mm | 0.15mm | | Min. Line width&space | 0.1/0.1mm | 0.076/0.076mm | | Max. Copper Thickness | 6 oz | 8oz | | Max. Aspect Ratio | 8:1 | 10:1 | | Solder Mask Color | Green,Black,White,Blue,Red,Matt Green, Matt Black | | Silkscreen Color | White,Black,Yellow,Grey,Orange | | Base Material | CEM1,CEM3,FR4,IMS,aluminum | | Surface Treatment | HASL(Lead Free),OSP,ENIG, ENEPIG,Immersion Silver,Immersion Tin, Hard Gold Plating,Tin Plating, Silver Plating |
Our Lead time:| layers | 1~2layers | 4layers | 6layers | 8layers | | sample | 3~4 days | 5 days | 6 days | 7 days | | Volume production | 7~9 days | 11 days | 14 days | 15 days |
Why US:
UL (E246887), ISO9001, TS16949, ISO 14001 certified.
Turnover USD 50-100 million per year
25,000 sqm area,1100 staff
Mass Production from single to 20 layers
Special Material: ROGERS, Arlon, Taconic.etc.
Client: SAMSUNG, Skyworth, Malata, Midea.etc.
Capability & Lead Time:

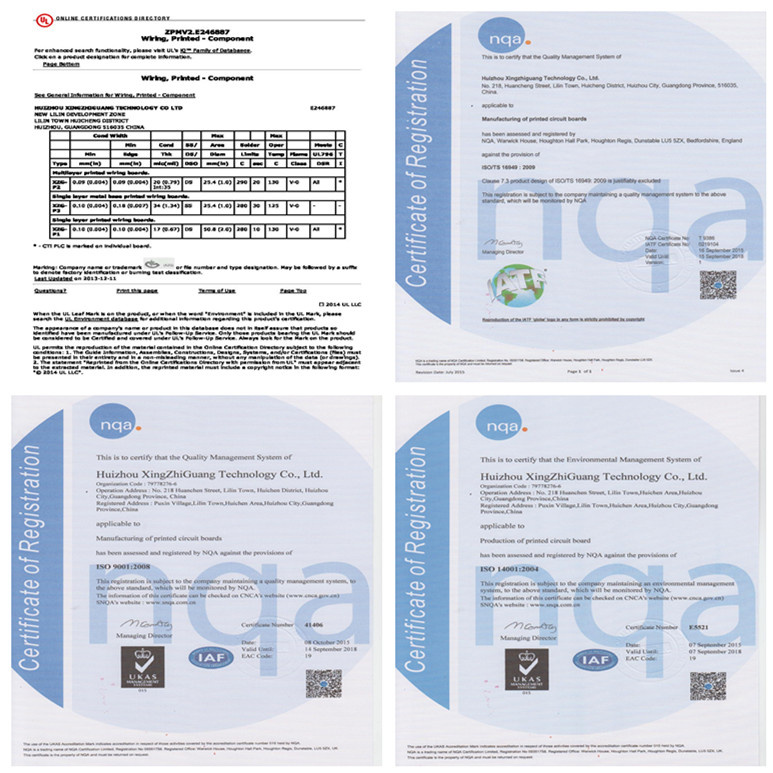

Certificates(UL:E246887, TS16949, ISO14001, ISO9001):

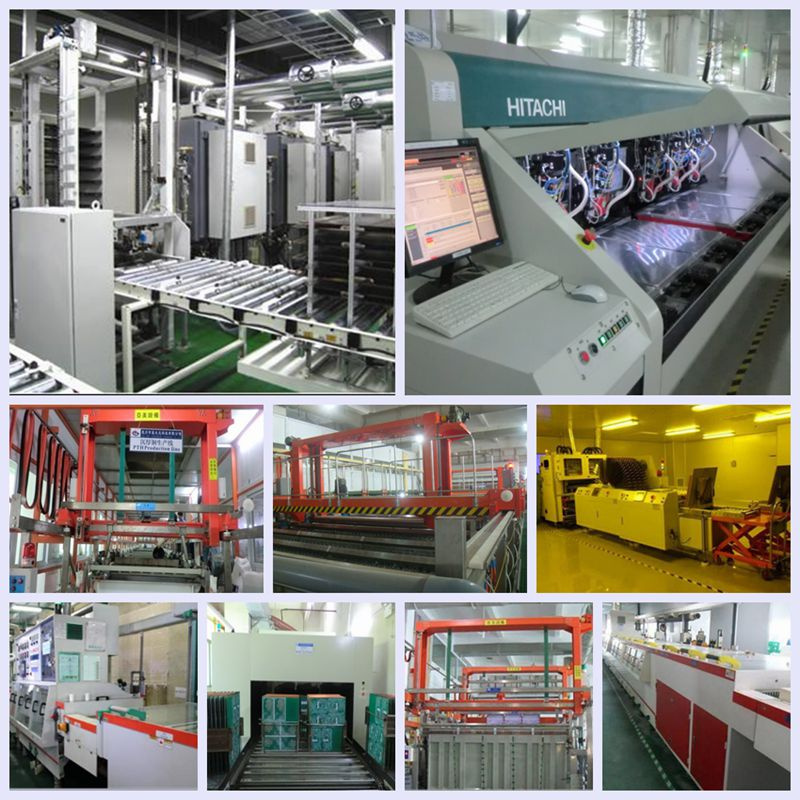

Factory Tour:
Clients and Suppliers:
FAQ:
Q1:Are you a manufacturer or trading company?
A:XingZhiGuang is a PCB manufacturer, specialized in PCB for over ten years.
Q2:What kind of PCB file you need before production
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)
Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.
Q4:What is your minimum order quantity?
A:Our MOQ is 1 PCS.
Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online! | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
