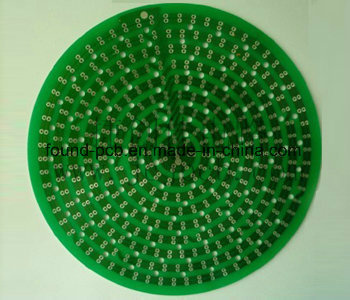

1 Layer Fr4 PCB Board

Name: 1 Layer Fr4 PCB Board
Brand: all-electronics-online.com
SKU: 731331702
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FR4 pcb
Structure:	Single-Sided Rigid PCB
Material:	Epoxide Woven Glass Fabric Laminate
Production Process:	Subtractive Process

Product Description

Layers: single layer board
         Materials: FR4
         Min line width/space:4mil/4mil
         Finished board thickness:1.6mm
         Min hole size: 0.25mm
         Surface treatment: hal
         Special long: <1500mm


Fr4 Single Pcb Suppliers and Fr4 Single Pcb Factory,Copper thickness:0.5-6OZ, 24hours for sample,For extra thin PCB, we can make it at 0.15-4.0mm,with or without the soldermask, and copper thickness 1/2OZ, 1OZ. Extra thin FR4 PCB can be bendable similar like a flexible circuit,but more rigid,and cost will be lower,comparing with the same copper traces.
1 Layer Black Soldermask Immersion Gold High TG PCB Board In Panel Format,FR-4 material is a fire code rating, represents a material specification is meant a resin material through the combustion state must be self-extinguishing, it is not a material name, but a material grade. So now FR-4 grade material is typically used in circuit boards, there are many species, but most are based on the so-called four-function (Tera-Function) plus epoxy filler (Filler) and glass fiber made composite materials

Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.

Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.

A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.

We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...

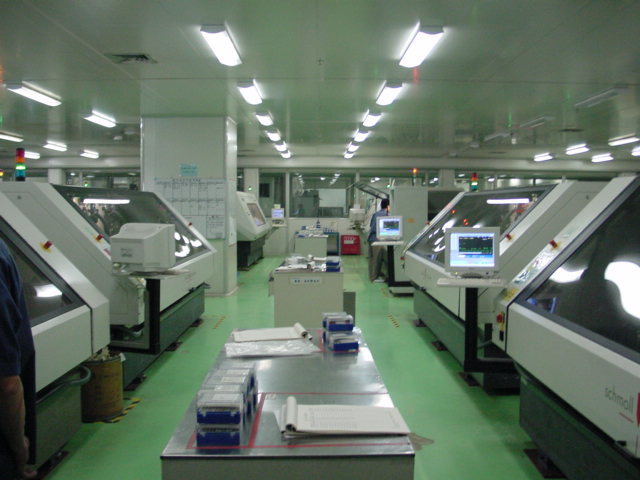

With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).

We welcome the every opportunity to working for you. We have the good name in the PCB market.
