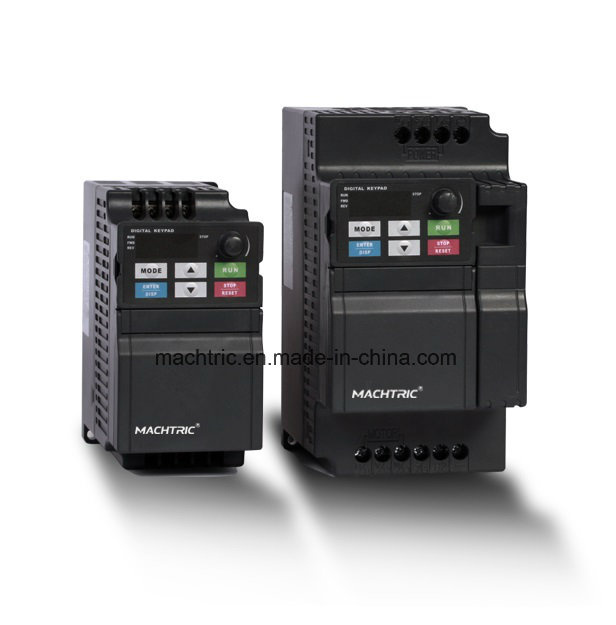

1 Phase Input 1 Phase Output Frequency Inverter Z900
| Price: |
US $ 75-79/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
Z900 ac drive |
| Speed Range: |
1:100(SVC) |
| Power Range: |
0.75~250kw |
| Type: |
Z900 AC Drive |
| Frequency Range: |
0-400Hz |
| Timing Control: |
Time Range: 0.0–6500.0 Minutes |
| Communication Methods: |
RS485 |
| Protection Mode: |
Output Phase Loss Protection, Under Voltage Protec |
| Ambient Temperature: |
-10~40 |
| Display: |
LED Display |
| Application: |
Three Phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
Technical Specifications| Item | Z900 frequency inverter |
Standard
functions
| Control mode | Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control |
| Maximum frequency | Vector control: 0-300 Hz
V/F control: 0-3200Hz |
| Carrier frequency | 1 kHz-16 kHz
The carrier frequency can be automatically adjusted based on the load features. |
Input frequency resolution
|
Dgital setting: 0.01 Hz
Analog setting: maximum frequency x 0.025%
|
| Startup torque | G type: 0.5 Hz/150% (SFVC);
P type: 0.5 Hz/100% |
Speed range
| 1:100 (SFVC)
|
| Speed stability accuracy | ± 0.5% (SFVC)
|
| Overload capacity | G type: 60s for 150% of the rated current,
3s for 180% of the rated current.
P type: 60s for 120% of the rated current,
3s for 150% of the rated current. |
| Torque boost | Auto-boost
Customized boost 0.1%-30.0% |
V/F curve
| Liner V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power,
1.8-power, square) |
| V/F separation | Two types: complete separation; half separation |
Ramp mode
| Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0-6500.0s |
| DC braking | DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-36.0s
Braking action current value: 0.0%-100.0% |
JOG control
| JOG frequency range: 0.00-50.00 Hz
JOG acceleration/deceleration time: 0.0-6500.0s |
| Item | Z900 AC drive |
Standard
functions | Multiple preset speeds | It implements up to 16 speeds via the simple PLC function or by input(X) terminal states |
| Built-in PID | It realizes process-controlled closed loop control system easily. |
Auto voltage
regulation (AVR) | It can keep constant output voltage automatically when the mains voltage changes. |
Over-voltage/
Over-current stall
control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to
over-voltage/over-current. |
Torque limit and torque
control | It can limit the torque automatically and prevent frequent over-current tripping during the running process. |
| Power dip ride through | The load feedback energy compensates the voltage
reduction so that the AC drive can continue to run for
short time. |
| Rapid current limit | It helps to avoid frequent over-current faults of the AC drive. |
| High performance | high-performance current vector
control technology. |
| Timing control | Time range: 0.0-6500.0 minutes |
| Communication methods | RS485 |
| Protection mode | Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage
protection, under voltage protection, overheat protection and overload protection. |
| Input and output | Input terminal | 6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input.
1 analog input terminals, switchable between 0-10 V input and 4-20 mA input. |
| Frequency source | Digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting. |
| Auxiliary frequency source | There are ten auxiliary frequency sources.It can implement
fine tuning of auxiliary frequency and frequency synthesis. |
| Running command source | Operation panel/Control terminals/Serial communication port
You can perform switchover between these sources in various ways. |
| Output terminal | 1 digital output terminal
1 relay output terminal
1 analog output terminal :that supports 0-20 mA current output or 0-10 V voltage output |
| Item | Z900 VFD |
operation on
the operation
panel | LED display | It displays the parameters. |
Key locking and
function selection | It can lock the keys partially or completely and define the
function range of some keys so as to prevent mis-function. |
| Environment | Installation location | Indoor, free from direct sunlight, dust, corrosive gas,
combustible gas, oil fog, steam, drip or salt. |
| Altitude | Lower than 1000 m |
| Ambient temperature | -10°C ~40°C (de-rated if the ambient temperature is
between 40°C and 50°C) |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s (0.6 g) |
| Storage temperature | -20°C~60°C |
Company Information
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business .
With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers.
At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers.
We try to provide wisdom, individual product solution.
Another Product

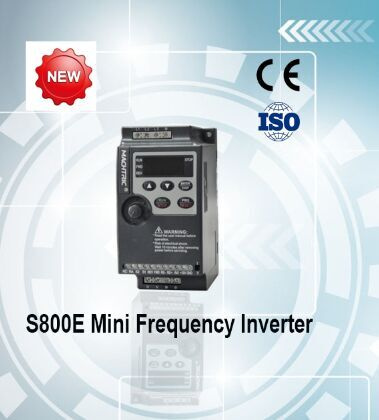

S2800E frequency inverter S800E mini ac drive
Our Services
Machtric Automation Equipment Co,LtdMore than 15 years - we are more than 15 years professional manufacture frequency inverter
More than 50 countries- we exported our products to more than 50 countries all over the world.
Professional work team- we can accept OEM ODM
Powerful production capacity - we can offer a large quantity products each month.
Certification -we have passed CE
We offer 24 hours service

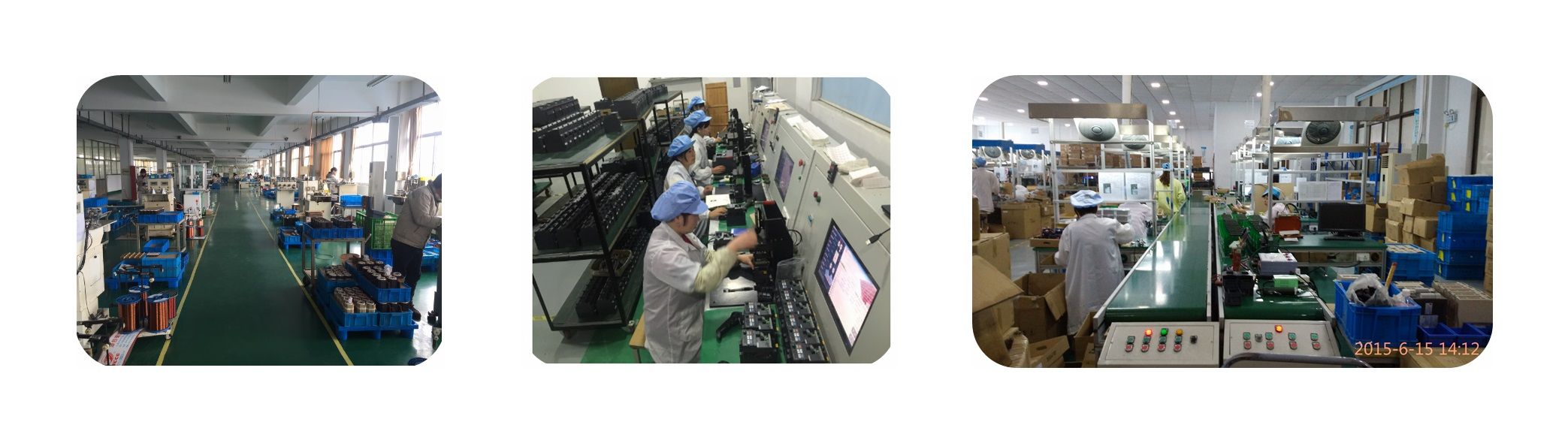

Welcome to you any time visit our factory
