1 to 2 Way Sc APC Coupler Passive Fiber Optic PLC Splitter
Price: |
US $ 0.1-15/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
1 to 2 PLC splitter |
Item Name: |
1 to 2 Sc APC PLC Splitter |
Keywords: |
Fiber Optic Splitter/PLC Splitter |
Connector Type: |
Sc/APC |
Operating Wavelength: |
1270~1610 |
Fiber Type: |
G657A |
Customzied: |
Available |
Brand Name: |
Takfly PLC/Splitter |
Wiring Devices: |
Integrated Wiring |
Certification: |
GS |
Condition: |
New |
Product Description

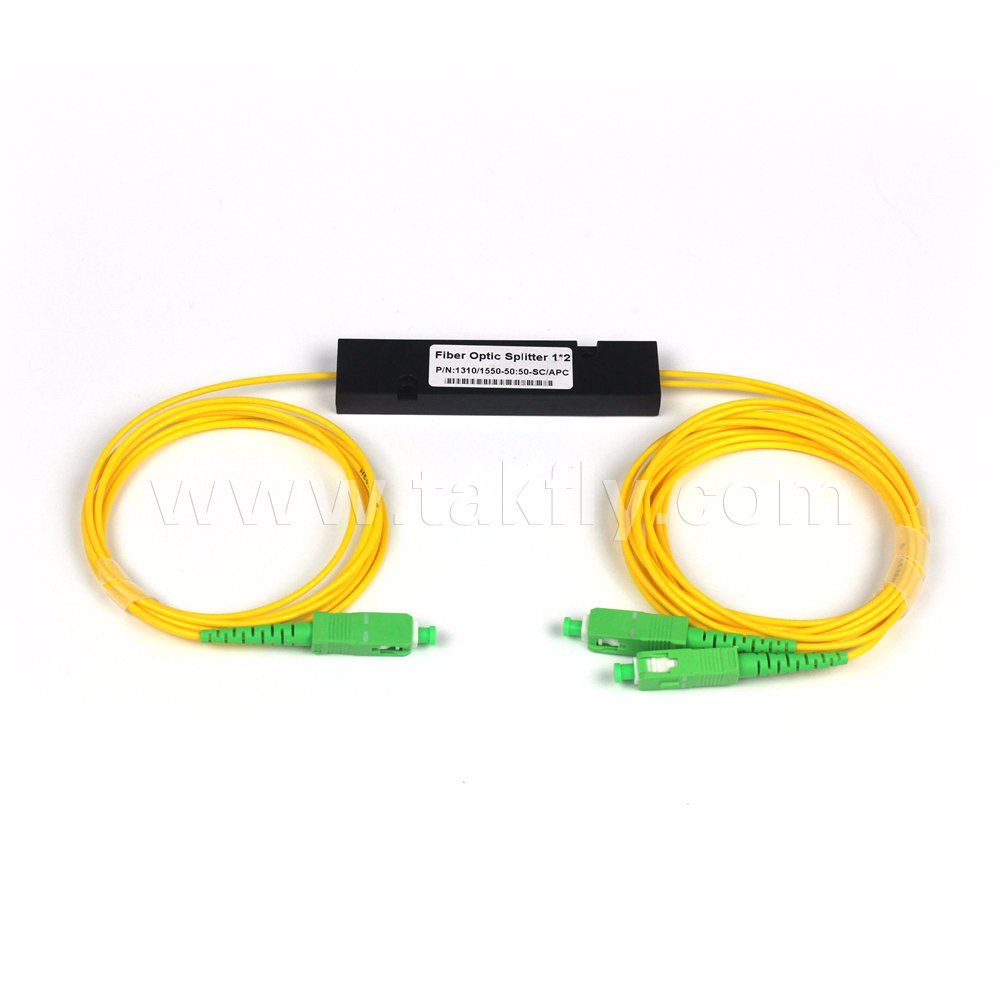

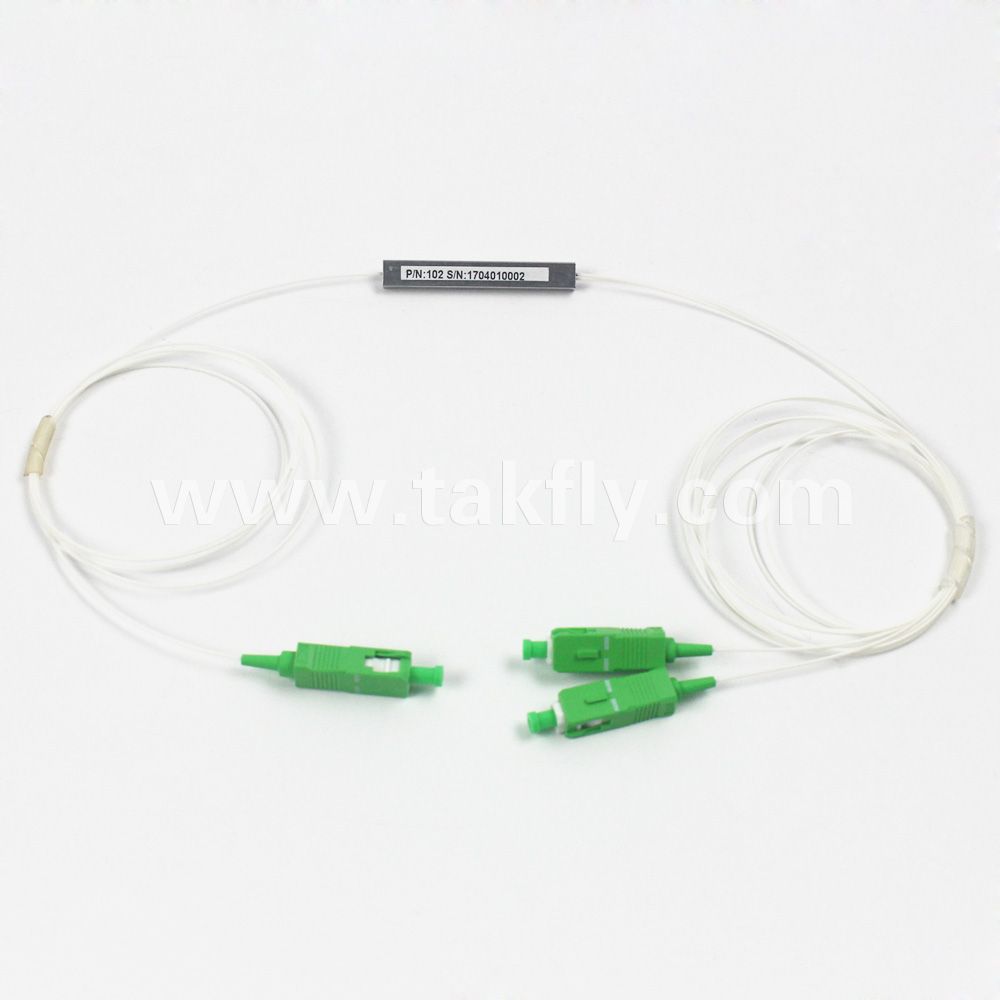

1 to 2 way Sc APC Coupler Passive fiber optic PLC Splitter
Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Takfly provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:1260nm to 1650nm
Wide Operating Temperature:From -40ºC to 85ºC
High Reliability and Stability


PLC Splitter SpecParameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| | | | | | |
Operating Wavelength (nm) | | | 1260~1650 | | |
| | | | | | |
Fiber Type | | | G657A or customer specified | |
| | | | | | |
Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| | | | | | |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| | | | | | |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| | | | | | |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| | | | | | |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| | | | | | |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| | | | | | |
Temperature Stability(-40~85 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
ºC)(dB) |
| | | | | |
| | | | | | |
Operating Temperature (ºC) | | | -40~85 | | |
| | | | | |
Storage Temperature (ºC) | | | -40~85 | | |
| | | | | | |
Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 |
(L×W×H) |
| | | | | |
| | | | | | |
Module Dimension (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
(L×W×H) |
| | | | | |
| | | | | | |
Mini-Module Dimension (mm) | 50×7×4 | 50×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | N/A |
(L×W×H) |
| | | | | |
| | | | | | |
Table 2 - 2×N PLC Splitter | | | | | | |
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| | | | | | |
Operating Wavelength (nm) | | | 1260~1650 | | |
| | | | |
Fiber Type | | | G657A or customer specified | |
| | | | | | |
Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| | | | | | |
Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| | | | | | |
Return Loss (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| | | | | | |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| | | | | | |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| | | | | | |
Notes:Specified without connectors.Add an additional 0.15dB loss per connector.
About Takfly
Takfly Strictly follow the ISO9001 quality management system,adopt advanced production technology,equipped with high standard,product passed CE,FCC,3C's certification,obtain the telecommunication equipment access network certification by national information industry.And qualified with inspection report from the ministry of public securityand police electronic quality testing.OEM or customized is available.
Our services
1.Order inquiry: Keep working time from 8 AM to 23 PM to gurantee the first reply .
to clients,and 24 hours no Cellphone power off .
2.Order production: Keep very close touch with production department to gurantee the right delivery time toclients .
3.Before shipment: Our sales would double check the order quantity,package and strength of cartons to
avoid lost and damage .
4.After shipment: Keep tracking shipping status and reporting to clients .
5.Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR .

Any question about Passive PLC Splitter,please leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
