1 to 3 IP68 Waterproof Rubber Cable with Connector for LED

Name: 1 to 3 IP68 Waterproof Rubber Cable with Connector for LED
Brand: all-electronics-online.com
SKU: 819363295
Availability: InStock
Rating: 4.5 (42 reviews)

Price:	US $ 1.1-1.2pcs
Min Order:	1000pcs
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CYTY001
Color:	Black or Customized
Length:	300mm or Customized
Cores:	3
Current Ratingt :	2~6 a
Voltage Rating:	10~250V
Insulation Resistancet :	10m Omega
Cable Max. Diameter:	8.5mm and 6.4mm
Durability(Plug/Unplug):	3000 Times
Certificate:	ISO IP67 IP68 UL RoHS
Breakdown Voltage:	1.5kv/1minute Moist
Application:	Power Station
Voltage:	High Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	IP68
Model:	Y Shape
Brand:	Cyt

Product Description

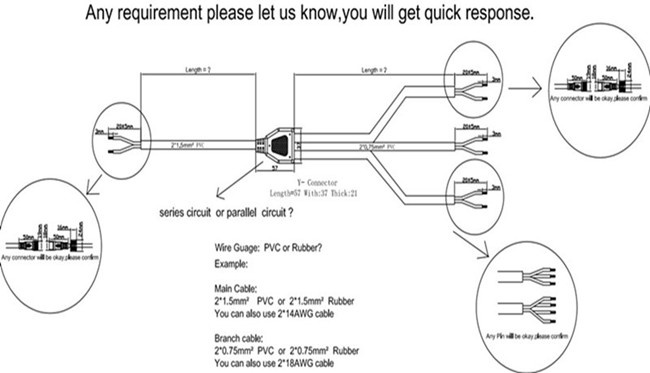

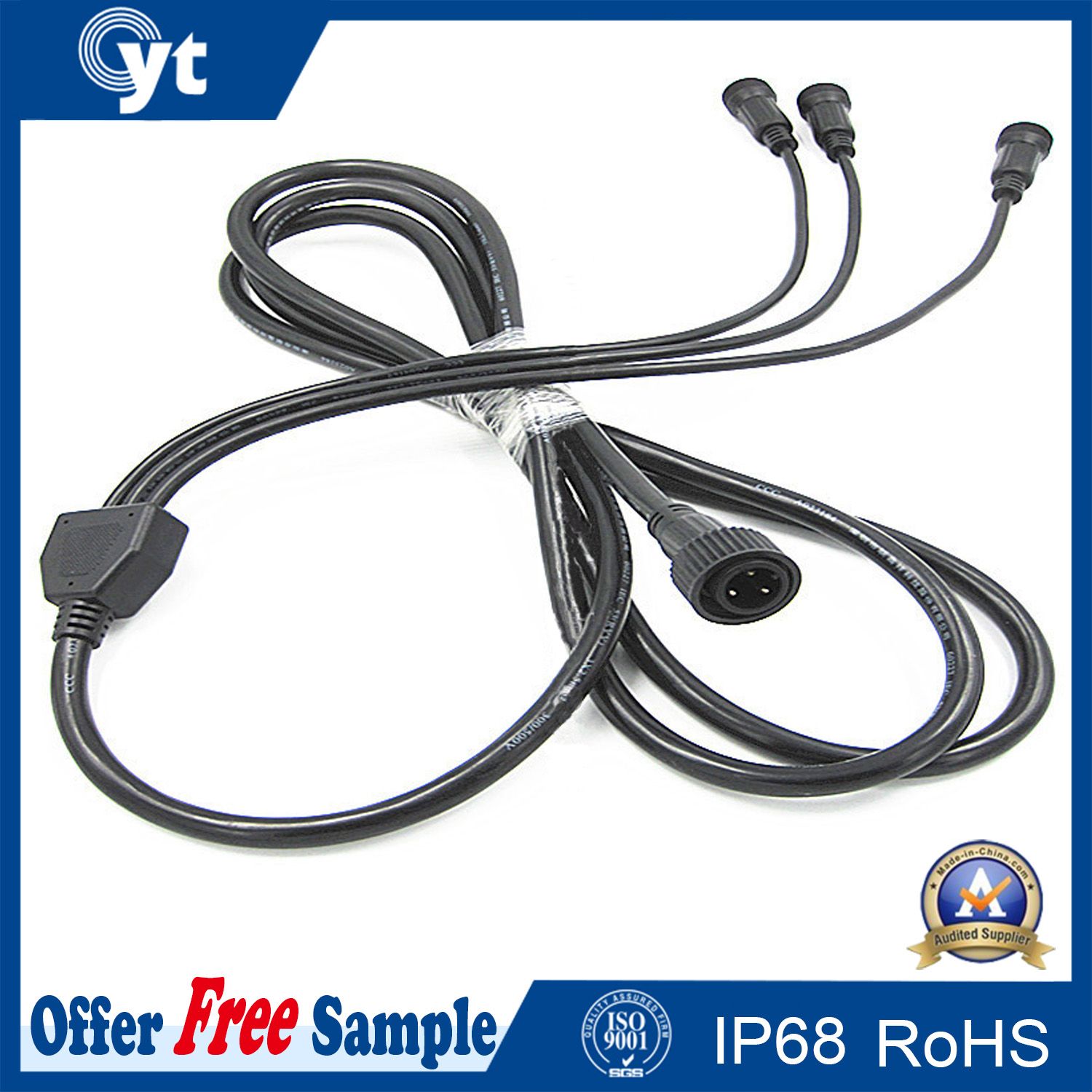

1 to 3 IP68 waterproof rubber cable with connector for LED

1. Cable IP68 Y connector.

2. 1 in-3 out,you can choose from 2 to12 outputs.

3. The accepted main wrie diameter:8.5mm.

4. The accepted branch wire diameter:6.4mm.

5. Branch cable can be jointed connector.

6. IP68 waterproof rating.

7. Any length of the cable is available and terminal processing.

8. Your drawings and samples are warm welcomed since our professional R&D team can according to your specific needs to research and customize.

1	Model No.	CYTY001
2	Material	Connector Body	White,Black
3		Contact	Brass
4		Sealing	Silica Gel
5	Property	Current Rating	2~6 A
6		Voltage Rating	10~250V
7		Contact Resistance	<10mΩ
8		Insulation Resistance	10MΩ
9		Breakdown Voltage	1.5KV/1minute Moist
10		Temperature Rating	-30°C~+105°C
11		Durability(Plug/Unplug)	3000 times
12		Waterproof Rating	IP67
13		Cable Max. Diameter	7.2mm
14		Pins Range	2~6

Steve Chan
Foreign Trade  Supervisor
Shenzhen Changyingtong Precision Electronics CO.,LTD
Mobile phone : 86-18575503553

  Web : www.cytcable.com/en/
Factory address : Floor 4th,Building No.3,DongFeng Industrial Zone,SongGang Town,
BaoAn District,ShenZhen City,GuangDong Province,China

We are a professional producer on waterproof cable for LED lighting goods, all kinds of lamps's cable, AC power wire, DC wire, tube wire, communication's cable, wire harness for automobile, home appliance, medical and so on, also do OEM orders for different company.

We have 13 years experiences on this industry.

And our sales volume is about 300`500 million USD in the past 10 years.

We have Injection molding machine, Automatic terminating machine, Pneumatic stripper, Automatic wire cutting machine, Testing machine more than 40 units. Currently there are over 130 employees, and a fabrication area of more than 3, 000 square meters. Technical force and produce ability is abundant.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.

We have exported large quantity to North America, Southeast Asia and European countries, Like Germany, Italy, USA, Canada and so on.

We are looking forward to building the business cooperation with all of you. Hope we can develope into a big scale company in the future.
