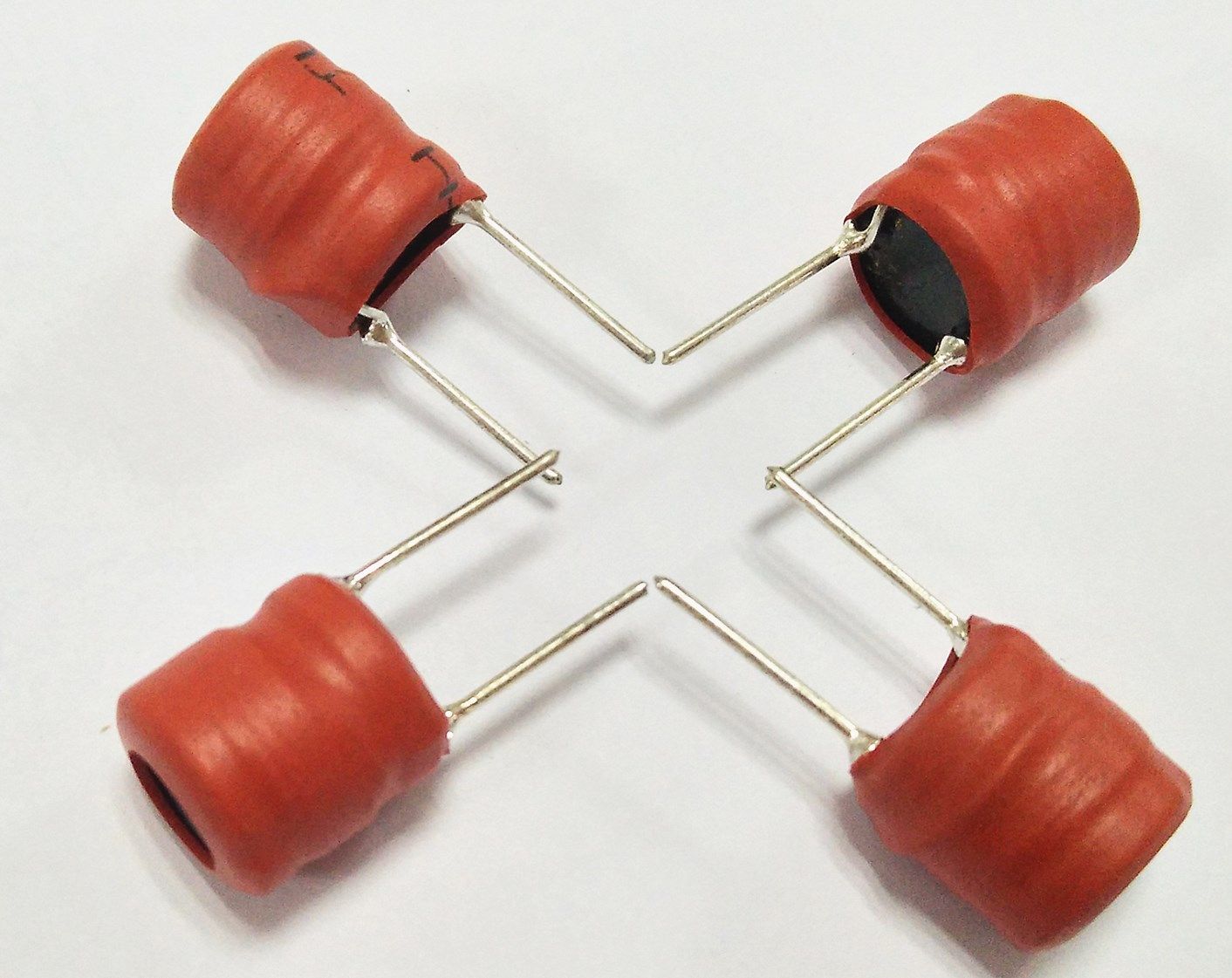

10*10 Radial Leaded Inductors/ Fixed Inductors/Ferrite Drum Core Inductor/Power Inductor

Name: 10*10 Radial Leaded Inductors/ Fixed Inductors/Ferrite Drum Core Inductor/Power Inductor
Brand: all-electronics-online.com
SKU: 823802545
Availability: InStock
Rating: 4.9 (147 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LGB
Type:	Fixed Inductor
Structure:	Mutual Inductor
Brand:	Liwang

Product Description

TYPE	D±1	Bmax	F±0.5	d±0.1	H
LGB-X/S0406	4.5	8	2.5	0.5	10min
LGB-X/S0507	5.5	9	2.5	0.6
LGB-X/S0608	6.5	10	3.0
LGB-X/S0810	8.5	12	5.0
LGB-X/S0912	9.5	14	5.0	0.8
LGB-X/S1012	10.5	15	5.0
LGB-X/S1415	14.5	17	7.5

Special sizes, we can mold production.

LGB SERIES LGB-X(S)0406 TYPE CHARACTTERISTICS

PART NUMBER	L(uH)	Tol.	Qmin	Fr (MHz)	SRF (MHz)	Rdc(Ω)	Idc(mA)
LGB-S/X0406-1R0M	1.0	±20%	80	7.96	200	0.10	1400
LGB-S/X0406-1R2M	1.2		70		170	0.13	1200
LGB-S/X0406-1R5M	1.5		70		140	0.15	1200
LGB-S/X0406-1R8M	1.8		70		130	0.17	1100
LGB-S/X0406-2R2M	2.2		70		120	0.20	1100
LGB-S/X0406-2R7M	2.7		70		110	0.22	1000
LGB-S/X0406-3R3M	3.3		70		90	0.24	1000
LGB-S/X0406-3R9M	3.9		70		70	0.26	1000
LGB-S/X0406-4R7M	4.7		70		55	0.28	800
LGB-S/X0406-5R6M	5.6		70		40	0.30	800
LGB-S/X0406-6R8M	6.8		70		35	0.35	800
LGB-S/X0406-8R2M	8.2		65		30	0.35	700
LGB-S/X0406-100K	10	±10%	65	2.52	25	0.46	650
LGB-S/X0406-120K	12		65		20	0.48	600
LGB-S/X0406-150K	15		65		15	0.55	500
LGB-S/X0406-180K	18		65		15	0.65	500
LGB-S/X0406-220K	22		60		14	0.72	400
LGB-S/X0406-270K	27		60		13	0.78	400
LGB-S/X0406-330K	33		60		12	0.87	400
LGB-S/X0406-390K	39		60		11	0.90	400
LGB-S/X0406-470K	47		58		10	0.98	320
LGB-S/X0406-560K	56		55		9.0	1.50	300
LGB-S/X0406-680K	68		55		8.5	1.90	300
LGB-S/X0406-820K	82		53		8.0	2.50	300
LGB-S/X0406-101K	100	±10%	50	0.796	7.0	3.00	200
LGB-S/X0406-121K	120		50		6.3	3.80	200
LGB-S/X0406-151K	150		50		5.7	4.50	200
LGB-S/X0406-181K	180		50		5.3	5.00	200
LGB-S/X0406-221K	220		50		5.0	5.80	200
LGB-S/X0406-271K	270		50		4.5	6.50	150
LGB-S/X0406-331K	330		50		4.0	7.00	150
LGB-S/X0406-391k	390		50		3.8	7.70	150
LGB-S/X0406-471k	470		50		3.5	8.00	120
LGB-S/X0406-561k	560		50		3.2	8.50	120
LGB-S/X0406-681k	680		50		3.0	9.50	120
LGB-S/X0406-821k	820		50		2.8	15.0	100
LGB-S/X0406-102K	1000	±10%	50	0.252	2.5	17.0	100
LGB-S/X0406-122K	1200		50		2.3	20.0	80
LGB-S/X0406-152K	1500		50		2.1	22.0	80
LGB-S/X0406-182K	1800		50		1.8	25.0	70
LGB-S/X0406-222K	2200		50		1.6	26.0	60
LGB-S/X0406-272K	2700		45		1.36	40.0	40
LGB-S/X0406-332K	3300		45		1.27	50.0	30
LGB-S/X0406-392K	3900		45		1.20	55.0	30
LGB-S/X0406-472K	4700		45		1.06	60.0	30
LGB-S/X0406-562K	5600		45		1.02	65.0	30
LGB-S/X0406-682K	6800		45		0.96	72.0	30
LGB-S/X0406-822K	8200		45		0.93	80.0	20

Our Features
(1)Fastest Lead Time
(2)Low Minimum Order
(3) Regular purchase with competitive prices and reliable supply
(4)Warranty is A Least 8 Months
(5)New Original & PB Free

Payment Information
1. T/T (Wire Transfer)
2. WESTERN UNION
3. L/C

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
