10# 12# Grey Black Colored Solid Copper Thhn Wire

Name: 10# 12# Grey Black Colored Solid Copper Thhn Wire
Brand: all-electronics-online.com
SKU: 771764205
Availability: InStock
Rating: 4.8 (38 reviews)

Price:	US $ 0.1-1.8/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	THHN THWN
Markets:	North America,South America,Southeast Asia,Oceania,Mid East
Produceing Experience:	15 Years
Export Experience:	UAE,Phillipines,Guatemala,Colombia
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	UL
Application:	Building Construction, Equipment
Sheath Material:	Nylon

Product Description

12# 10# Different size Customized THHN Wire Cable

Reference standard: UL 83 & UL 1581,UL1063,CSA C22.2No.75-03

1. Rated Voltage:
    600/1000V

2. Rated Temperature (ºC):
90ºCdry for THHN,75ºC day or 75ºC for THWN,90ºC dry or 90ºC wet for THWN-2.

3. Structure:
    Conductor: Solid or Stranded Copper
    Insulation: PVC
    Sheathing: Nylon

4. Color:
    We can produce different colors as per the requirements of the clients.

5.Technical Specification List

Part No.	Conductor				Insulation		Jacket		Max Dia- meter (mm)	Ref.W (kg/km)
Part No.	Type	Size (AWG)	Construction (No./mm)	Dia- Meter (mm)	Nominal Thickness (mm)	Nominal Diameter (mm)	Minimum Thickness At any point (mm)	Nominal Diameter (mm)	Max Dia- meter (mm)	Ref.W (kg/km)
THHN-14B	Stranded Conductor	14	7/0.62	1.86	0.38	2.66	0.10	2.90	3.3	25
THHN-14B1		14	19/0.38	1.90	0.38	2.70	0.10	2.94	3.4	25
THHN-12B		12	7/0.78	2.34	0.38	3.14	0.10	3.38	3.8	38
THHN-12B1		12	19/0.47	2.35	0.38	3.15	0.10	3.39	3.8	38
THHN-10B		10	7/0.98	2.94	0.51	4.00	0.10	4.24	4.8	59
THHN-10B1		10	19/0.60	3.00	0.51	4.06	0.10	4.30	4.8	59
THHN-8B		8	7/1.23	3.69	0.76	5.25	0.13	5.55	6.2	97
THHN-8B1		8	19/0.75	3.75	0.76	5.31	0.13	5.61	6.3	96
THHN-6B		6	7/1.56	4.68	0.76	6.24	0.13	6.54	7.3	147
THHN-6B1		6	19/0.95	4.77	0.76	6.33	0.13	6.63	7.4	146
THHN-4B		4	7/1.96	5.88	0.76	7.44	0.13	7.74	8.7	135
THHN-4B1		4	19/1.19	5.95	0.76	7.51	0.13	7.81	8.7	135
THHN-3B		3	7/2.20	6.60	1.02	8.68	0.15	9.02	10.0	292
THHN-3B1		3	19/1.33	6.65	1.02	8.73	0.15	9.07	10.0	291
THHN-2B		2	7/2.47	7.41	1.02	9.49	0.15	9.83	11.0	361
THHN-2B1		2	19/1.50	7.50	1.02	9.58	0.15	9.92	11.0	361
THHN-1B		1	19/1.68	8.40	1.02	10.48	0.18	10.88	12.1	457
THHN-1/0B		1/0	19/1.89	9.45	1.27	12.03	0.18	12.43	13.8	585
THHN-2/0B		2/0	19/2.12	10.60	1.27	13.18	0.18	13.58	15.1	724
THHN-3/0B		3/0	19/2.38	11.90	1.27	14.48	0.18	14.88	16.5	900
THHN-4/0B		4/0	19/2.67	13.35	1.27	15.93	0.18	16.33	18.1	1118
THHN-14A	Solid Conductor	14	1/1.63	1.63	0.38	2.43	0.10	2.67	3.1	22
THHN-12A		12	1/2.05	2.05	0.38	2.85	0.10	3.09	3.5	36
THHN-10A		10	1/2.59	2.59	0.51	3.65	0.10	3.89	4.4	57
THHN-8A		8	1/3.26	3.26	0.76	4.82	0.13	5.12	5.7	94

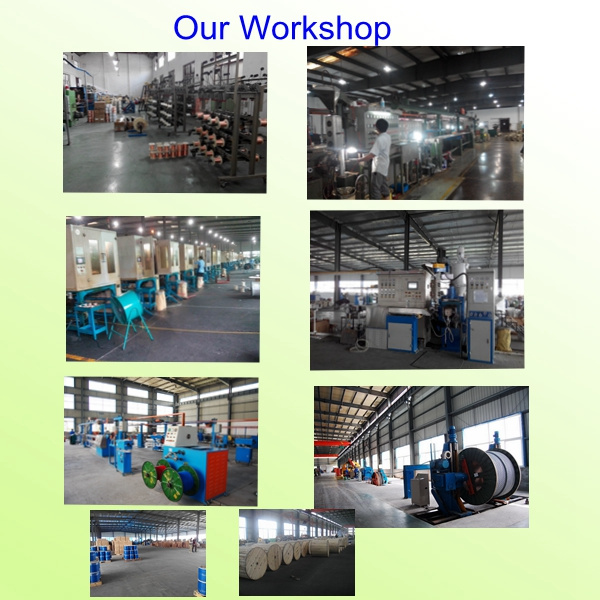

6.Our workshop

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
