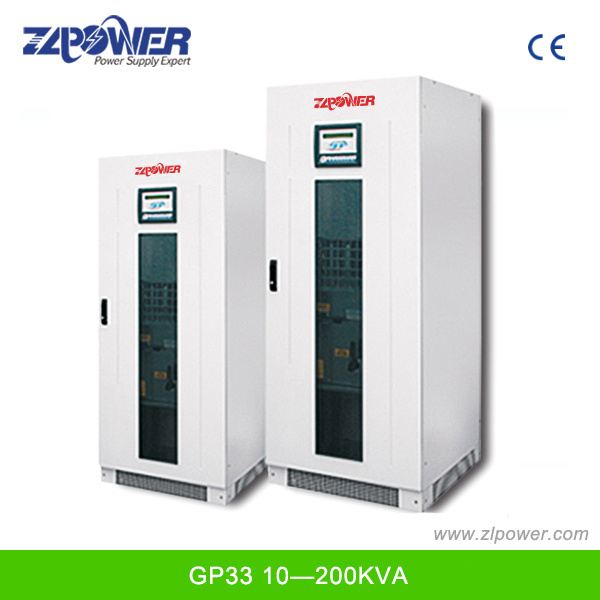

10-200kVA 3 Phase Online UPS Double Conversion UPS
| Price: |
US $ 2250/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
GP33 10-200kva |
| Voltage Range: |
10kVA to 200kVA |
| Power Range: |
8kVA to 160kw |
| Input/Output Phase: |
Three Phase+N+G |
| Display: |
LED or LCD Display |
| Communication Port: |
RS232,Snmp,Dry-Contact |
| Battery Charge Current: |
1-50A |
| Protection Level: |
IP20 |
| Output Wave: |
Pure Sine Wave |
| Protect: |
UPS Over Current,Short Circuit,Battery Low Voltage |
| Warranty: |
2 Years |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Zlpower |
Product Description
10-200KVA 3 Phase Online UPS Double Conversion UPS
1> 8KVA to 200KVA, 8KW to 200KW three phase ,LED/LCD display2> 400vac Input, 400vac Output,Pure Sine Wave output3> 50/60hz Rated voltage4> IP20 Protection level5> 0.8 power factor6> The sixth generation IGBT inverter technology7> Adopts knock-down modular design8> Excellent load characters Application

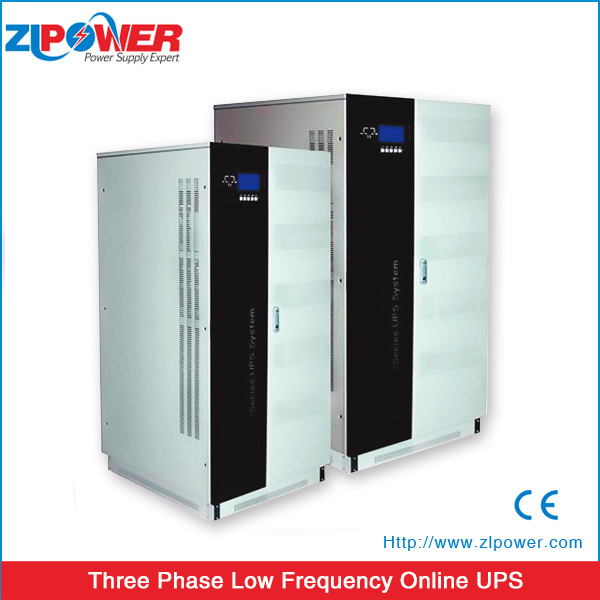

GP33 series low frequency Online UPS is most advanced and new intelligent digital UPS by ZLPOWER. It's widely used in telecommunication,data center,banks,negotiable securities,traffic,arms,security,electronics,industry,large enterprises and so on.Product Introduction
| Model | GP3310 ~ GP33200 series Low Frequency Online UPS |
| Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K |
| Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW |
| Operate type | Double conversion low frequency online type |
| Input | voltage | 220V/380, 230/400, 240/415V, ±25% |
| Phase | Three phase +N+G |
| Frequency | 50Hz/60Hz±5% |
| Input power factor | 0.95(with input filter) |
| Soft start | 0-100% 5sec |
| Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
| Phase | Three phase +N+G |
| Frequency | 50/60Hz (1±5%, AC mode), 50/60Hz (±1%, Battery mode) |
| Power factor | 0.8 |
| Output wave | Pure sine wave |
| Distortion | Linear load <3%, non linear load<5% |
| Battery voltage | Standard battery voltage | 360V/384V |
| Floating charge | 405V/432V |
| Terminal voltage | 315V/336V |
| Charge current | 1A-50A (Can calculate and set according to battery configuration software) |
| Maximum discharge current | 28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 |
| Main Function | Active voltage change | 0-100%±5% |
| Instant recover time | <10ms |
| Imbalance voltage | <±5%,<±1%( Balance load voltage) |
| Overload capacity | 125%→10min,150%→1min |
| Static switch | Automatic |
| Protection | UPS over current, short circuit, battery low voltage, over heat |
| Cold method | Compel aeration ( temperature control mode) |
| Noise | 60-65dB |
| Display | LED,LCD display |
| Communication port(Optional) | RS232, SNMP, dry-contact |
| Alarm | Alarm with buzzer and indicators |
| Environment | Temperature: 0-40C Humidity: 0-90% |
| Net weight | kgs | 210 | 258 | 350 | 400 | 480 | 900 | 1100 | 1200 | 1250 | 1380 | 1520 |
| Size | L*W*H (mm) | 700×520×1100 | 800×600×1200 | 800×600×1500 | 1200×900×1600 |
Product Details Show
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
