| Prod Model: |
GP9111C 6-15KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating: |
Temperature0-40°c Relative Humidity 0-90% |
| Noise: |
60-65db |
| Power Factor: |
>0.92(with Input Filter |
| Soft Strat: |
0-100% 5sec |
| Frequency Range: |
50/60Hz±5% |
| Rated Frequency: |
50/60Hz |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description
10-20KVA Low Frequency Online UPS GP9311C 3PH/IN 1PH/OUTKey features:1. 1ph/1ph or 3ph/1ph, support 380/400/415V, 50/60Hz power system.
2. Pure-online double conversion technology, to provide the best quality of power supply.
3. Suitable for all kinds of loads, and a high overload capacity.
4. Super wide range of input voltage anti-interferance,adapt to harsh environment in power network.
5. Intelligent battery management, extending the battery life.
6. Large LCD display in Chinese and English, and Friendly human-machine interface.
High reliability design:1. Double-conversion online design, make the output for UPS frequency tracking, phase-locked regulator, filter noise,low distortion, without interference of pure sine wave power supply, so that UPS for use provide more comprehensive and perfect protection.
2. Output conversion time, is zero to meet the sophisticated equipment for power high-standard requirements.
Technical Specifications of OEM UPS GP9110C GP9310C Series
Model | GP911C 6-15KVA | GP9311C 10-40KVA |
| 6KVA | 8KVA | 10KVA | 15KVA | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA |
Capacity | 6KVA/4.8KW | 8KVA/6.4KW | 10KVA/8KW | 15KVA/12KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW |
Rated voltage | 220V single phase | 380V three phase 4 wires+G |
| Rated frequency | 50/60HZ |
AC input |
| Voltage range | 220V±25% single phase | 380V±25% three phase 4 wires+G |
Frequency range | 50/60HZ±5% |
Soft strat | 0-100% 5sec |
| Power factor | >0.92(with input filter) |
Bypass input |
| Voltage range | 220V±25% singke phase | 380V±25% three phase 4 wires+G |
| Frequency range | 50/60HZ±10% |
| Inverter bypass | (overload)0ms |
| | |
Output |
| Voltage accuracy | 220V±1%(steady-state load),220V±3%(load fluctuations) |
Frequency accuracy | 50/60Hz±0.05Hz(battery power) |
Power factor | 0.8(lagging) |
| Distortion | <3%(linear load), <5%(non linear load) |
Steady-state response time | <10ms |
| Overload capacity | 110%load can run normally 125%10min 150%1min |
battery |
| Nominal voltage | 192V | 360V |
Float voltage | 216V | 405V |
Cut-off voltage | 168V | 315V |
Charger current | 1A-50A(According to the battery capacity can be set configuration) |
Other |
Display | LED\LCD |
Alarm | Sound and light alarm |
Protection | UPS over current,short circuit,under voltage,over temperature |
Environment | |
Noise | 60-65dB |
Operating | Temperature0-40°C Relative humidity 0-90% |
Box color | Gray (optional) |
Physical |
Wight
(KG) | Net | 122 | 125 | 143 | 175 | 182.5 | 235.5 | 285.5 | 354.8 | 354.8 |
Gross | 142 | 147 | 163 | 199 | 225.5 | 268.5 | 325.2 | 389.5 | 389.5 |
| Dimesions W×D×H(mm) | 210×600×560 | 305×586×850 | 350×675×920 | 430×792×1060 |

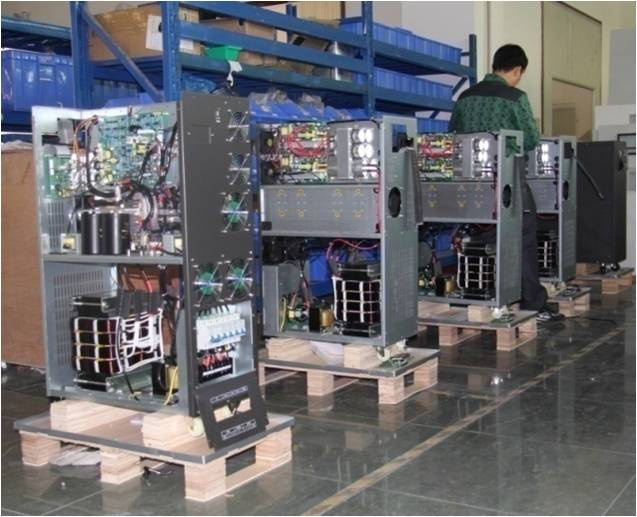

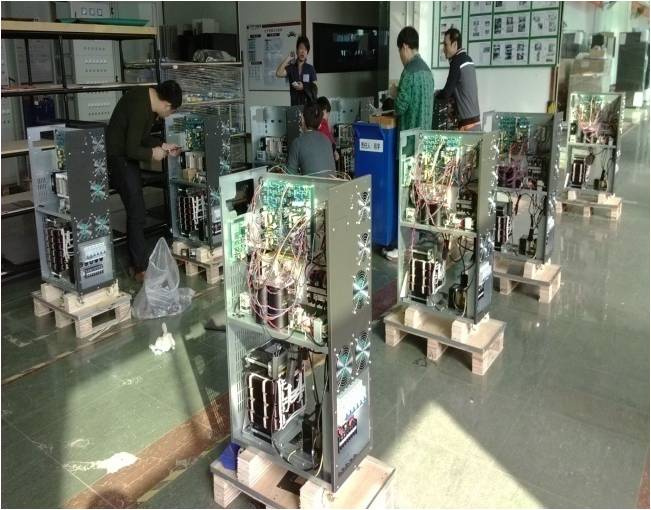

FACTORY SHOW
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
