10-35kv Electric Furnace Transformer/Electric Arc Furnace Transformer/Power Supply Transformer Furnace Transformer
| Price: |
US $ 50000-60000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
H/HJ/HZ/HC/HK/HG |
| Rated Voltage: |
10-35kv |
| Frequency: |
50Hz |
| Insulated Oil: |
High Quality Grade Mineral Oil |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Rockwell |
Product Description

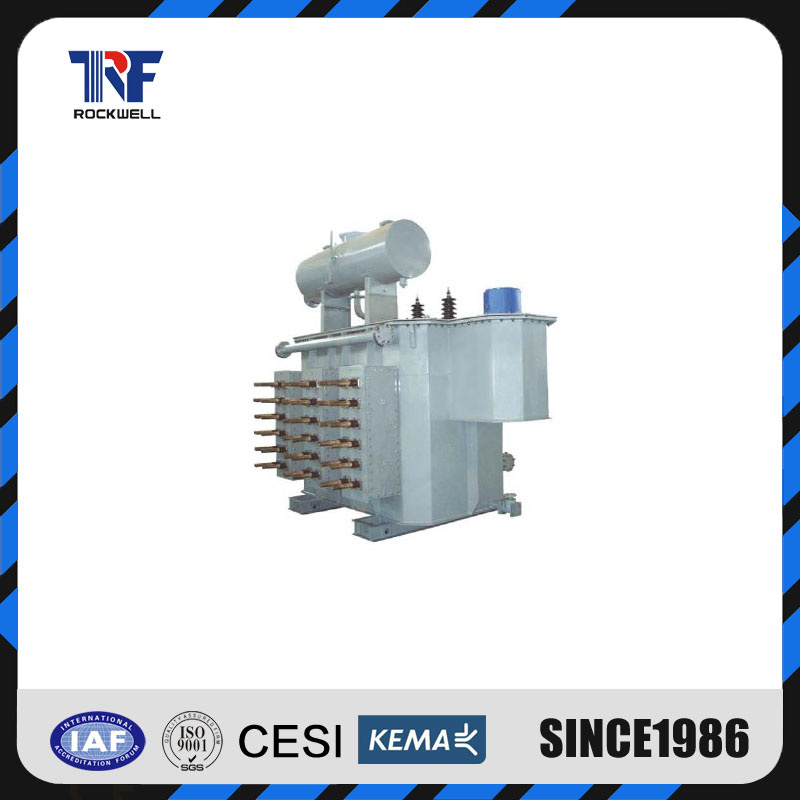

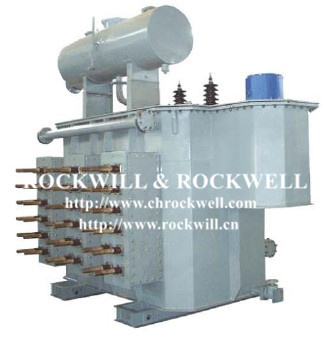

Electric furnace transformer
Feature
An electric furnace transformer is used to supply power to an electric furnace, which lowers the high voltage to the furnace-required lower voltage.
Its type varies with the type of electric furnace, so the transformer has many types. Currently we manufacture following types: Arc furnace transformers used for steel-smelting (including load-ratio voltage regulator type, no-load voltage regulator type, and built-in reactor type); blast furnace transformers used for smelting of iron alloy, silicides, calcium carbide(single phase, three phase, load ratio voltage regulator and no-load voltage regulator). All energy-saving products with low power loss. The cooling modes are self-cooling mode, forced water cooling mode, etc. and we can also provide the special transformer by the customer's demands.
The model of the electric furnace transformer is expressed as follows:
Meaning: H-steel smelting arc furnace, HJ-ladle fining furnace, HZ-electroslag furnace, HC-calcium carbide furnace, HK-blast furnace, HG-industrial furnace
Number of phase: D-single phases, S-three phases
Type of cooling devices: oil immersed self-coiling- air cooling F, water cooling S
Way of oil circulation: natural circulation, forced oil circulation P
Way of voltage regulation: non-excitation voltage regulation, load ratio voltage regulation
Built-in accessories: flux leakage changing group-,built in reactor K
Rated capacity: kVA
Voltage class: KV
Non-excitation-tap-changing arc furnace transformer technical data | Rated power (kVA) | With series reactor |
Primary
Voltage
(kV) | secondary
Voltage
(kV) |
Rated secondary current
(A) | Type of taping | Vector group | Short
Circuit
Impedance
(%) | Series reactor | No-load loss
(kW) | On-load
Loss
(kW) | No-load
Current
(%) |
Rated power
(kvar) | Reactance
Voltage
Drop(%) |
630
800
1000 | 6
6.3
10
10.5
11 | 200
170
116
98 | 1819
2609
2887 | no-load
Tap
changing | Dd0
Dy11 | 8-9
7-8 | 120
150
190 | 19 | 2.4
2.7
3.1 | 8.6
11.0
14.0 | 3.0
2.9
2.9 |
1250
1600
2000 | 210
180
121
104 | 3437
4399
5499 | 200
260
320 | 16 | 3.6
4.1
4.6 | 17.5
22.0
27.0 | 2.6
2.5
2.4 |
2500
3150 | 220
190
127
110 | 6561
8267 | 280
350 | 11.2 | 5.2
6.0 | 32.0
39.0 | 2.3
2.2 |
4000
5000 | 240
210
139
121 | 9623
12028 | 340
360 | 8.5 | 7.6
9.4 | 46.0
54.0 | 2.1
2.0 |
6300
8000 | 260
240
210
139 | 13900
17765 | 430
460 | 5.7 | 11.8
15.0 | 63.0
74.0 | 1.9 1.8 |
Main technical data for arc furnace transformer with on-load-tap-changing | Rated power (kVA) | Primary
Voltage
(kV) | Secondary
Voltage
(V)
| Secondary
Step voltage
(V) | Rated secondary
Current(A) | Regulation
Voltage step | Vector group | Short-
circuit
Impedance(%) | Cooling
method
|
Invariablenes
power | Invariablenes
current |
| 10000 | 35
66 | 280-240 | 240-100 | 10 | 24056 | 19(5,14)
5 steps invariableness
Power
14 steps
Invariableness
current | Dd0
Yd11
Ynd11 | 7-8 | OFWFOFAF |
| 12500 | 314-270 | 270-116 | 11 | 26729 |
| 16000 | 353-305 | 305-137 | 12 | 30287 | 6-7
(35kV)
7.5-8.5
(66,110kV)
|
| 20000 | 35
66
110 | 392-340 | 340-158 | 13 | 33962 |
| 25000 | 436-380 | 380-184 | 14 | 37984 |
| 31500 | 489-425 | 425-201 | 16 | 42792 |
| 40000 | 547-475 | 475-223 | 18 | 48619 |
| 50000 | 610-530 | 530-250 | 20 | 54467 |
| 63000 | 673-585 | 585-277 | 22 | 62176 |
| 80000 | 760-660 | 660-310 | 25 | 69982 |
Electroslag furnace transformer technical parameters| type | Rated power
(kVA) | Rated voltage | Vector group |
Primary
(kV) | Secondary
(V) |
| HZD-400/10 | 400 | 10 | 60/55/51/47/44 | li0 |
| HZDZ-500/10 | 500 | 10 | 70/67/64/62/60/58/56/53/50 | li0 |
| HZD-630/10 | 630 | 10 | 70/63.2/57.6/53/49/45.6/42.6/40 | li0 |
| HZD-700/10 | 700 | 10 | 70/64/56/52/47 | li0 |
| HZDZ-800/10 | 800 | 10 | 87/83/79/77/75/73/70/65/60 | li0 |
| HZD-1000/10 | 1000 | 10 | 80/75/72.5/70/67.5/65/60/55/50 | li0 |
| HTZ-1118/6.3 | 1118 | 6.3 | 260/238/216/194/172/150/128/106/84/62/40 | YaT |
| HTZ-1474/6.3 | 1474 | 6.3 | 275/250/225/200/175/150/125/100/8060 | YaT |
| HZDSP-1620/10 | 1620 | 10 | 90-55(8 step) | li0 |
| HZDSPZ-1620/6.3 | 1620 | 6.3 | 90-45.2(27 step) | li0 |
| HSZ-1794/6.3 | 1794 | 6.3 | 260/238/216/194/172/150/128/106/84/62/40 | Ya0,Dd0 |
| HZDSPZ-2400/10 | 2400 | 10 | 96-56(18 step) | li0 |
Ladle-furnace transformer technical data| type | Rated power
(kVA) | Rated voltage | Vector group |
Primary
(kV) | Secondary
(V) |
| HJSSP-2400/10 | 2400 | 10 | 200/190/110/104/180 | D-Yd0-11 |
| HJSSP-2400/11 | 2400 | 11 | 210/196/113/100/173 | D-Yd0-11 |
| HJSSP-2800/10 | 2800 | 10 | 190/175/160/110/101/92.5 | D-Yd0-11 |
| HJSSP-3150/10 | 3150 | 10 | 210/195/180/165/150 | Yd11 |
| HJSSP-3200/35 | 3200 | 35 | 210/195/170/121/112.5/98 | D-Yd0-11 |
| HJSSP-4000/10 | 4000 | 10 | 210/195/180/155 | Dd0 |
| HJSSP-5000/11 | 5000 | 10 | 210/195/180/165/121 | D-Yd0-11 |
| HJSSP-6300/35 | 6300 | 35 | 215/200/185/170/155 | Yd11 |
| HJSSP-7000/10 | 7000 | 10 | 216/202/188/175/161 | Dd0 |
| HJSSP-7000/35 | 7000 | 35 | 220/205/191/175/160/145 | Yd11 |
| HJSSP-10000/10 | 10000 | 10 | 240/210/180/160/139/121 | D-Yd0-11 |
| HJSSP-12000/35 | 12000 | 35 | 260-150 13 level | Yd11 |
| HJSSP-13000/35 | 13000 | 35 | 240-150 19 level | Yd11 |
| HJSSP-18000/35 | 18000 | 35 | 344-231 13 level | Yd11 |
Main technical data of 10KV Arc furnace transformer for steel making| type | Rated power
(kVA) | Vector group | Primary
Voltage
(kV) | Secondary
Voltage
(V) | Regulation voltage
(V) | Type of taping | Short-circuit
Impedance
(%) | No-load
Loss
(W) | On-load
Loss
(W) |
| HS-650/10 | 650 | D-y,d0-11 | 10 | 130-75 | 5 | No load | 20 | 1.9 | 10 |
| HS-1250/10 | 1250 | D-y,d0-11 | 10 | 210-160 | 5 | No load | 21 | 2.9 | 15.7 |
| HS-1600/10 | 1600 | Yd11 | 10 | 85-65 | 5 | No load | 6.0 | 5.1 | 17.4 |
| HSZ-2000/10 | 2000 | Yd11 | 10 | 300-140 | 15 | On load | 4/6 | 5.3 | 33.7 |
| HSSPK-2500/10 | 2500 | D-y,d0-11 | 10 | 220-110 | 6 | No load electric | 21/9 | 5.4 | 32.7 |
| HS-3000/10 | 3000 | D-y,d0-11 | 10 | 220-110 | 5 | No load electric | 19/9 | 5.2 | 26.2 |
| HSSP-3200/10 | 3200 | Dd0 | 10 | 240-104 | 5 | No load electric | 18/7 | 7.7 | 40.9 |
| HSSP-4200/10 | 4200 | D-y,d0-11 | 10 | 240-160 | 5 | No load electric | 18.5 | 7.3 | 33.2 |
| HSSP-5500/6 | 5500 | Dd0 | 6 | 212-150 | 5 | No load electric | 8 | 10.1 | 47 |
| HSSPK-5500/6 | 5500 | Dd0 | 6 | 260-139 | 8 | No load electric | 9 | 7.5 | 60 |
| HSSP-6300/6 | 6300 | Yd11 | 6 | 207-158 | 5 | No load electric | 7.5 | 8.5 | 58.2 |
| HJSSP-7500/10 | 7500 | D-y,d0-11 | 10 | 240-140 | 6 | No load electric | 6.4 | 10.7 | 78.2 |
| HSSPZ-8000/10.5 | 8000 | Yd11 | 10.5 | 300-140 | 17 | On load | 7 | 11.8 | 99.8 |
| HUSSPZ-8000/10 | 8000 | Dd0 | 10 | 240-149 | 9 | On load | 7.5 | 9.8 | 76.8 |
| HSSPZ-9000/6 | 9000 | Yd11 | 6 | 240-85 | 17 | On load | 7 | 13.7 | 121.6 |
| HSSP-12500/10 | 12500 | Dd0 | 10 | 325-166 | 11 | No load electric | 8 | 12.4 | 145.7 |
| HJSSPZ-14000/10 | 14000 | Dd0 | 10 | 325-205 | 13 | On load | 6.5 | 13.2 | 134.6 |
Main technical data of 35KV Arc furnace transformer for steel making | type | Rated power
(kVA) | Vector group | Primary
Voltage
(kV) | Secondary
Voltage
(V) | Regulation voltage
(V) | Type of taping | Short-circuit
Impedance
(%) | No-load
Loss
(W) | On-load
Loss
(W) |
| HSSPZ-1500/35 | 1500 | Yd11 | 35 | 290-157 | 10 | On load | 5.5 | 2.6 | 23 |
| HSSP-3200/35 | 3200 | D-Y, d0-11 | 35 | 240-138 | 4 | No load electric | 7 | 5.3 | 41.1 |
| HSSPL-3200/35 | 3200 | D-Y, d0-11 | 35 | 240-138 | 5 | No load electric | 18.65 | 5.3 | 91.1 |
| HJSSP-5000/35 | 5000 | Yd11 | 35 | 212-155 | 5 | No load electric | 7.5 | 9.3 | 55 |
| HJSSP-5500/35 | 5500 | Yd11 | 35 | 240-130 | 6 | No load electric | 7.5 | 9.1 | 52.5 |
| HJSSP-7000/35 | 7000 | Yd11 | 35 | 240-140 | 8 | No load electric | 7 | 9.4 | 77 |
| HJSSPZ-9000/35 | 9000 | Yd11 | 35 | 239-163 | 9 | On load | 6.5 | 11.6 | 97 |
| HSSP-9000/35 | 9000 | Yd11 | 35 | 320-180 | 8 | No load electric | 8.5 | 11 | 116 |
| HJSSPZ-10000/35 | 10000 | Yd11 | 35 | 260-188 | 9 | On load | 6 | 17.2 | 187 |
| HSSPZ-10000/35 | 10000 | Yd11 | 35 | 300-160 | 13 | On load | 8.5 | 12 | 97 |
| HSSPZ-12500/35 | 12500 | Yd11 | 35 | 250-150 | 9 | On load | 6.5 | 19.7 | 134 |
| HSSP-12500/35 | 12500 | Yd11 | 35 | 340-195 | 11 | No load electric | 9 | 13.9 | 154 |
| HSSP-15000/35 | 15000 | D-Y, d0-11 | 35 | 353-160 | 8 | No load electric | 8 | 20 | 107 |
| HSSPZ-16000/35 | 16000 | Yd11 | 35 | 375-200 | 15 | On load | 8 | 16.4 | 161 |
| HJSSPZ-16000/35 | 16000 | Yd11 | 35 | 310-190 | 13 | On load | 7 | 19.2 | 195.6 |
| HSSPZ-20000/35 | 20000 | Yd11 | 35 | 400-270 | 13 | On load | 7 | 20.7 | 207.7 |
| HJSSPZ-20000/35 | 20000 | Dd0 | 35 | 320-170 | 11 | On load | 6.5 | 30.4 | 313.6 |
| HSSPZ-25000/35 | 25000 | Yd11 | 35 | 509-302 | 13 | On load | 7.5 | 28.5 | 272.6 |
Blast furnace, calcium carbide furnace transformer technical parameters| type | Rated power
(kVA) | Vector group | Primary
Voltage
(kV) | Secondary
Voltage
(V) | Regulation voltage
(V) | Type of taping | Short-circuit
Impedance
(%) | No-load
Loss
(W) | On-load
Loss
(W) |
| HKS-1000/10 | 1000 | Dd0 | 10 | 72-64 | 5 | No load | 6.5 | 3.02 | 14 |
| HKS-1600/10 | 1600 | D-Y, d0-11 | 10 | 345-199 | 8 | No load | 7 | 4.06 | 18.26 |
| HKS-3000/10 | 3000 | Dd0 | 10 | 126-70 | 8 | No load | 7 | 5.33 | 45 |
| HKSSP-3150/10 | 3150 | Yd11 | 10 | 230-130 | 5 | No load | 7 | 6.36 | 31.02 |
| HKSSPZ-4000/6 | 4000 | Yd11 | 6 | 200-59 | 15 | On load | 4.5 | 11.2 | 37 |
| HKSSP-4500/10 | 4500 | Dd0 | 10 | 120-92 | 8 | No load | 6.5 | 8.33 | 48.82 |
| HKSSP-6000/10 | 6000 | Yd11 | 10 | 140-100 | 7 | No load | 8 | 9.2 | 66.6 |
| HKSSPZ-6300/10 | 63000 | Dd0 | 10 | 134-110 | 9 | On load | 6 | 7.7 | 66.5 |
| HKSSP-3200/35 | 3200 | Yd11 | 35 | 230-150 | 5 | No load | 7 | 7.11 | 40.13 |
| HKSSP-5600/35 | 5600 | Yd11 | 35 | 270-160 | 7 | No load | 6 | 8.77 | 53.2 |
| HKSSP-6300/35 | 6300 | Yd11 | 35 | 140-100 | 9 | No load | 7.5 | 9.01 | 69.87 |
| HKSSP-10000/35 | 10000 | Yd11 | 35 | 350-170 | 9 | No load | 7 | 10.1 | 79.7 |
| HKSSP-12500/35 | 12500 | Yd11 | 35 | 365-153 | 5 | No load | 7 | 16.6 | 95 |
| HCS-1000/10 | 1000 | Yd11 | 10 | 80-60 | 5 | No load | 6 | 3.73 | 12.2 |
| HCS-1800/10 | 1800 | Yd11 | 10 | 105-75 | 5 | No load | 7 | 5.4 | 28.8 |
| HCSSP-3000/10 | 3000 | Dd0 | 10 | 80-108 | 8 | No load | 6.5 | 3.9 | 65.5 |
| HCSSP-5000/10 | 5000 | Yd11 | 10 | 120-95 | 5 | No load | 6.5 | 10.23 | 44.6 |
| HCSSP-8000/10 | 8000 | Dd0 | 10 | 128-112 | 5 | No load | 7 | 11.9 | 94 |
| HCSSP-6300/35 | 6300 | Yd11 | 35 | 126-98 | 8 | No load | 8 | 8.1 | 87.6 |
| HCSSPZ-10000/35 | 10000 | D-Y, d0-11 | 35 | 164-98 | 19 | On load | 7 | 16.8 | 91.35 |
| HCSSP-12500/35 | 12500 | Dd0 | 35 | 165-126 | 13 | No load | 6.5 | 16.8 | 112.1 |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE ROCKWELL:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-577-27869969
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
Wenzhou Rockwell Transformer Co., Ltd. is a high-tech enterprise invested by Rockwill Transmission and distribution Group Co., Ltd. Our company is specialized in developing, manufacturing and marketing Single phase & three phase automatic step voltage regulator, Auto-transformers, power transformers, preventive auto transformer, CT and PT combinated Metering unit, and compact transformer and pad moubted substations.
Our company enjoys a worldwide reputation for our superior quality and service. In addition to the domestic market, our products are exported to America, Australia, Central Europe, Eastern Europe, Southeast Asia, the Middle East, Africa and other regions and countries.
Besides a great variety of products, we also provide you with professional technical solutions and services. If you have any problem, please feel free to contact us and our technicians will find a complete solution for you.
We always embrace the idea of developing together with customers and always try our best to provide users with safer, easier, greener and more energy-saving high and medium voltage electric equipment and components.
Note:
Rockwell's sister company Rockwill is offering manufacturing for MV and LV switchgears, ring main units, vacuum(gas) circuit breakers, reclosers, load break switches and Low voltage metering unit, Current transformer, Voltage transformer.
More >
Other Products with This Manufacturers
