| Prod Model: |
ZSSP/ZHS |
| Rated Voltage: |
10-35kv |
| Frequency: |
50Hz |
| Insulated Oil: |
High Quality Grade Mineral Oil |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Rockwell |
Product Description

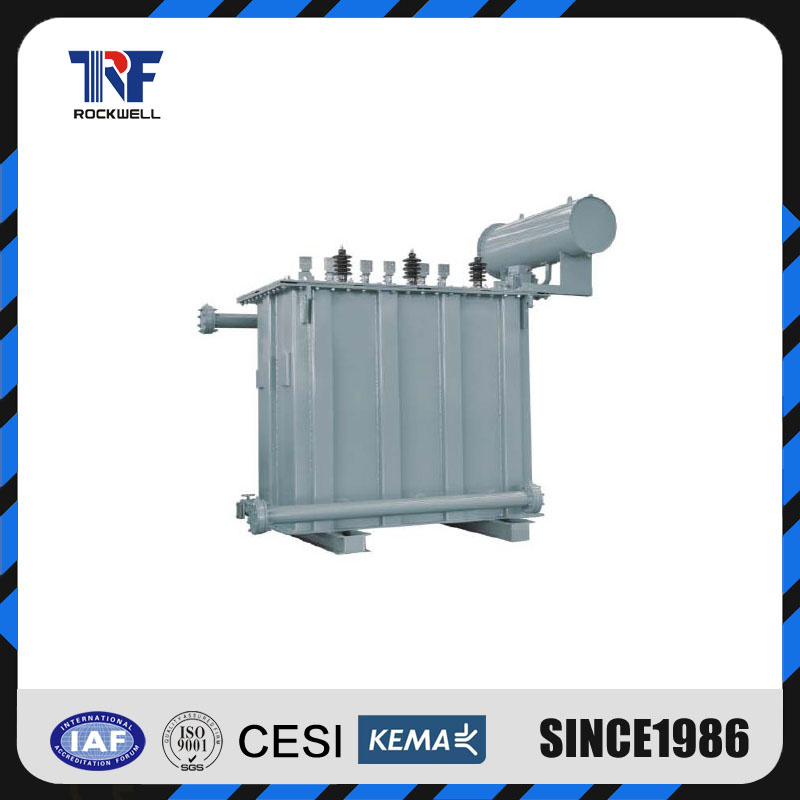

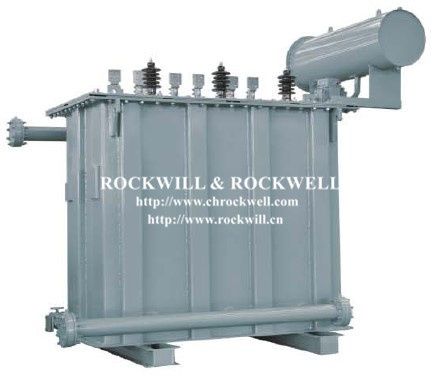

Force oil water-cooled rectifier transformer
Technical data for forced oil water-cooled series rectifier transformer | Type | Rated power
(kV) | Rated voltage
(V) | Vector group |
| Line side | Valve side |
| ZSSP-800/10 | 800 | 10000 | 400 | Dyn11 |
| ZSSP-2000/35 | 2000 | 35000 | 400 | Yyn0 |
| ZSSP-4000/35 | 4000 | 35000 | 950 | Dy0y11 |
| ZSSP-6300/35 | 6300 | 35000 | 1000 | D(±7.5%)dyn |
| ZSSP-7000/35 | 7000 | 35000 | 950 | Dd0y11 |
| ZSSP-8000/22 | 8000 | 22000 | 950 | Dd0y11 |
| ZSSP-8000/35 | 8000 | 35000 | 950 | Dd0y11 |
| ZSSP-9000/35 | 9000 | 35000 | 950 | Dd0y11 |
| ZSSP-10000/35 | 10000 | 35000 | 1000 | D(±7.5%) dyn |
Main technical data of ZH S series oil-immersed rectifier transformer | Type | Rated power
(kV) | Rated voltage
(V) | Vector group |
| Line side | Valve side |
| ZHSZK-400/10 | 400 | 10000 | 50 | Dylly11 |
| ZHSK-500/6.3 | 500 | 6300 | 193 | Dylly5 |
| ZHSK-500/10 | 500 | 10000 | 119 | Dylly5 |
| ZHSK-630/10 | 630 | 10000 | 255 | Dylly11 |
| ZHSK-800/0.5 | 800 | 380 | 168 | Dylly5 |
| ZHSK-800/10 | 800 | 10000 | 168 | Dylly5 |
| ZHSK-900/0.5 | 900 | 380 | 209 | Yyn6yn0 |
| ZHSZK-1000/10 | 1000 | 10000 | 140 | Dylly5 |
| ZHSK-1250/10 | 1250 | 10000 | 280 | Yy6y0 |
| ZHSK-1500/10 | 1500 | 10000 | 239 | Dylly5 |
| ZHSK-1600/10 | 1600 | 10000 | 246 | Dylly5 |
| ZHSK-1800/35 | 1800 | 35000 | 211 | Yy6y0 |
| ZHSK-2000/10 | 2000 | 10000 | 238 | Yy6y0 |
| ZHSK-2700/6 | 2700 | 6000 | 265 | Dylly5yyd0d6 |
| ZHSK-3000/10 | 3000 | 10000 | 79 | Dylly5yyd0d6 |
| ZHSK-3500/10 | 3500 | 10000 | 270 | Yy6y0 |
| ZHSZK-4000/35 | 4000 | 35000 | 280 | Yy6y0 |
| ZHSTK-6300/35 | 6300 | 35000 | 260 | Y/Z(±15°)yoy6 |
| ZHSFTK-8000/35 | 8000 | 35000 | 220 | Za(+7.5°)Z(±15°)y0y6 |
| ZHSFTK-8000/35 | 8000 | 35000 | 220 | Za(-7.5°)Z(±15°)y0y6 |
| ZHSFTK-10000/35 | 10000 | 35000 | 200 | Za(+7.5°)Z(±15°)y0y6 |
| ZHSFTK-10000/35 | 10000 | 35000 | 200 | Za(-7.5°)Z(±15°)y0y6 |
| ZHSFFK-16000/35 | 16000 | 35000 | 180 | Za(+7.5°)Z(±15°)y0y6 |
| ZHSFTK-16000/35 | 16000 | 35000 | 180 | Za(-7.5°)Z(±15°)y0y6 |
| ZHSTK-20000/35 | 20000 | 35000 | 320 | Za(+7.5°)Z(±15°)y0y6 |
| ZHSTK-20000/35 | 20000 | 35000 | 320 | Za(-7.5°)Z(±15°)y0y6 |
| ZHSZ-4500/10 | 4500 | 10000 | 356 | Dd0d6 |
| ZHSZ-6400/35 | 6400 | 35000 | 378 | Yd5d11 |
| ZHSFPT-6800/35 | 6800 | 35000 | 150 | Ya0/Dd0d6Yd11d5 |
| ZHSZ-7600/36 | 7600 | 36000 | 226 | Yd5d11 |
| ZHST-9000/35 | 9000 | 35000 | 260 | Ya0/Dd0d6Yd11d5 |
| ZHSSPT-12500/36 | 12500 | 36000 | 450 | Ya0/Dd0d6Yd11d5 |
| ZHSSPFT-1600/35 | 16000 | 35000 | 300 | Ya0/Z(±15°)d11d5 |
| ZHST-20000/35 | 20000 | 35000 | 500 | Ya0/Z(±15°)d11d5 |
| ZHSFT-31500/110 | 31500 | 110000 | 480 | YNZ(+3.75°)y0y6d5d11 |
| ZHSFT-31500/110 | 31500 | 110000 | 480 | YNZ(-3.75°)y0y6d5d1 |
| ZHSFT-31500/110 | 31500 | 110000 | 480 | YNZ(+11.25°)y0y6d5d11 |
| ZHSFT-31500/110 | 31500 | 110000 | 480 | YNZ(-11.25°)y0y6d5d11 |
| ZHSFPT-50000/110 | 50000 | 110000 | 730 | YNZ(0°)y0y6d5d11 |
| ZHSFPT-50000/110 | 50000 | 110000 | 730 | YNZ(+10°)y0y6d5d11 |
| ZHSFPT-50000/110 | 50000 | 110000 | 730 | YNZ(-10°)y0y6d5d11 |
| ZHSFPT-63000/110 | 63000 | 110000 | 660 | YNZ(+18.75°-11.25°)d5d11 |
| ZHFPT-63000/110 | 63000 | 110000 | 660 | YNZ(+11.25°-18.75°)d5d11 |
| ZHSFPT-63000/110 | 63000 | 110000 | 660 | YNZ(+26.25°-3.75°)d5d11 |
| ZHSFPT-63000/110 | 63000 | 110000 | 660 | YNZ(+3.75°-26.25°)d5d11 |
