10 Double Speed Buttons F24-10d Transmitter and Receiver Industrial Wireless Remote Control
| Price: |
US $ 200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
f24-10d |
| Product Name: |
10 Button Transmitter and Receiver |
| Protection Level: |
IP65 10 Double Speed Button Remote Control |
| Application: |
Industrial Machinery |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
3V |
| Battery Type: |
AA Battery |
| Material: |
Glass Fiber-Reinforced Nylon |
Product Description

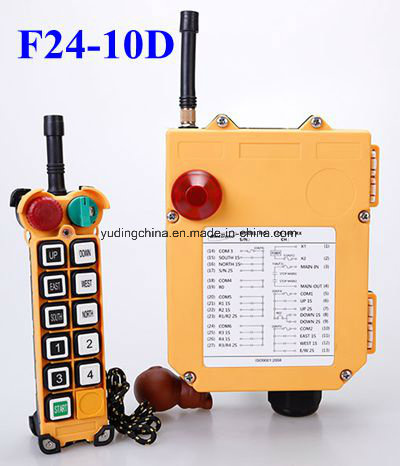

10 double speed buttons F24-10D transmitter and receiver industrial wireless remote control
Set the internal functions by computer interface
UP/DOWN ,EAST/WEST,SOUTH/NORTH,1/2,3/4 can be set normal,toggle,interlock or non-interlock.
Start&Alarm can be set start,inching,toggle and Normal.
Frequency VHF:310.0325-331.165MHz;Channel 80
Operation distance up to 100m
Standard Configuration:
1. One transmitter;
2. One receiver;
3. One 1.5m cable connect with receiver

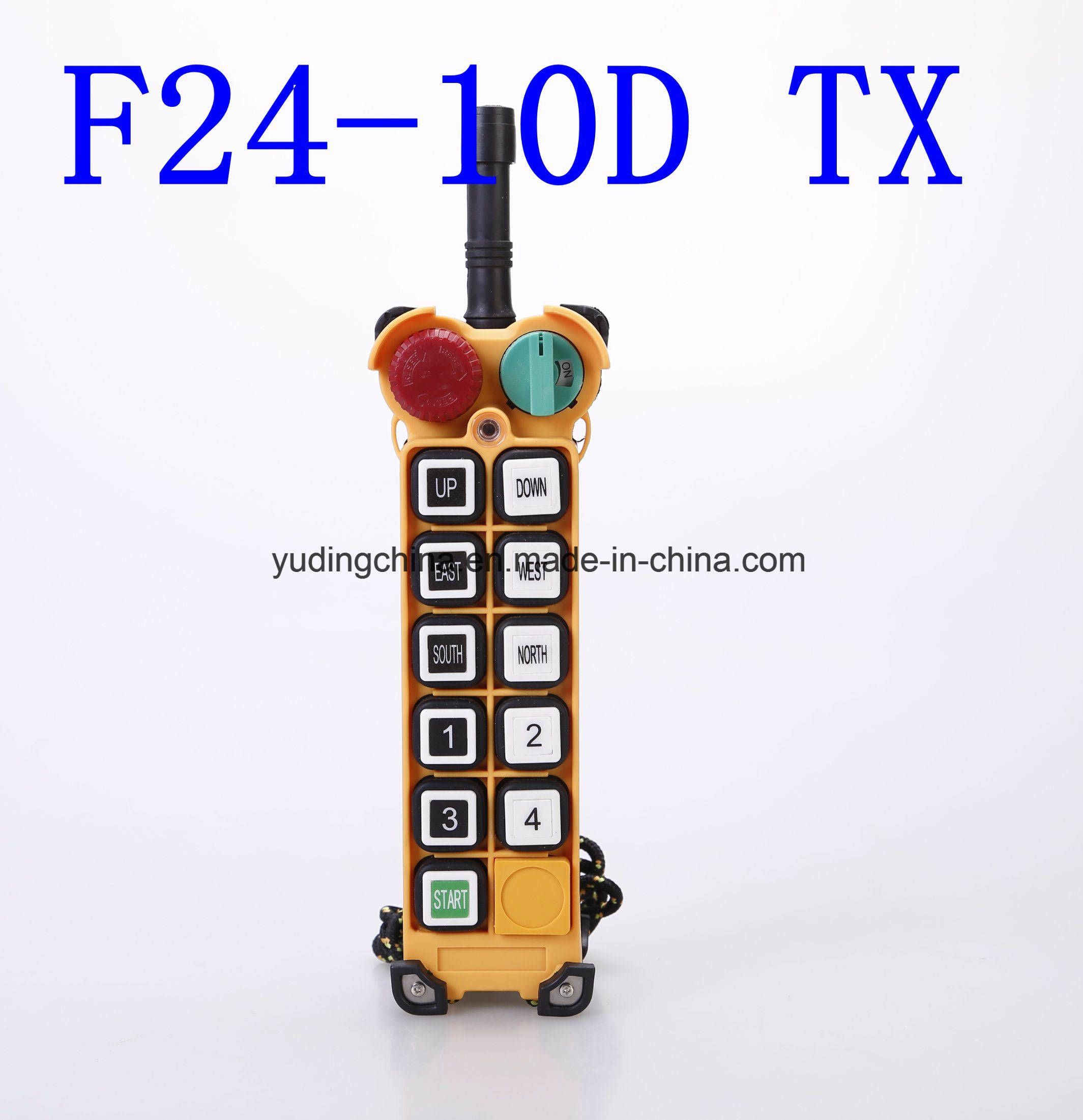

4. One operation and maintain manual.| TX Model | F24-10S-TX-V-(E) |
| TX Size | 18.8x6.4x4.8(cm) |
| TX Weight | about289g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 10 double speed buttons,1 START button,1 mushroom button |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V. |
| Operating Frequency | 310.0325-331.165MHz or 425MHZ-441MHZ |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection |
TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |
RELATED PRODUCTS
10 double speed buttons F24-10D transmitter and receiver industrial wireless remote control
APPLICATION

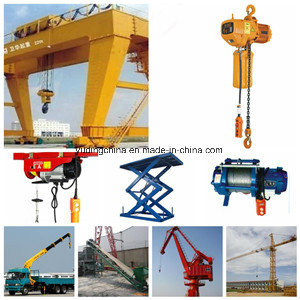

10 double speed buttons F24-10D transmitter and receiver industrial wireless remote control Radio remote controls are becoming more common in many industrial applications. These applications include material handling, cranes and hoists, agriculture, grain elevators, aggregates, conveyors, automation, assembly lines, railroad, mining, ship loading, recycling, waste management, military, entertainment, and rides.
CERTIFICATE
10 double speed buttons F24-10D transmitter and receiver industrial wireless remote control We have obtained CE , FCC certificate for our industrial wireless radio remote control ,ISO-9001:2008

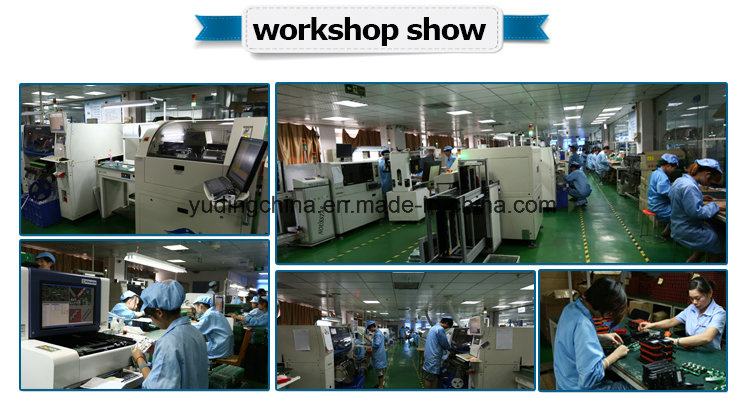

COMPANY INFORMATIONHenan Yuding electronics co.,ltd was founded in 2010 years, mainly for industrial radio remote control system such as F21 serises , F24 serises ,C-E1Q, 60 etc ,production line is more than 5000sq.m ,more than 400 employee , we has build multiple internationally leading SMT production lines , BGA production lines and DIP production lines , we have obtainer ISO9001-2008 ,CE certificate and Anti-explosion certification in 2011 , on the other side ,our company accept OEM,ODM for different mainboard ,LED ,EPC,FPC etc .
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

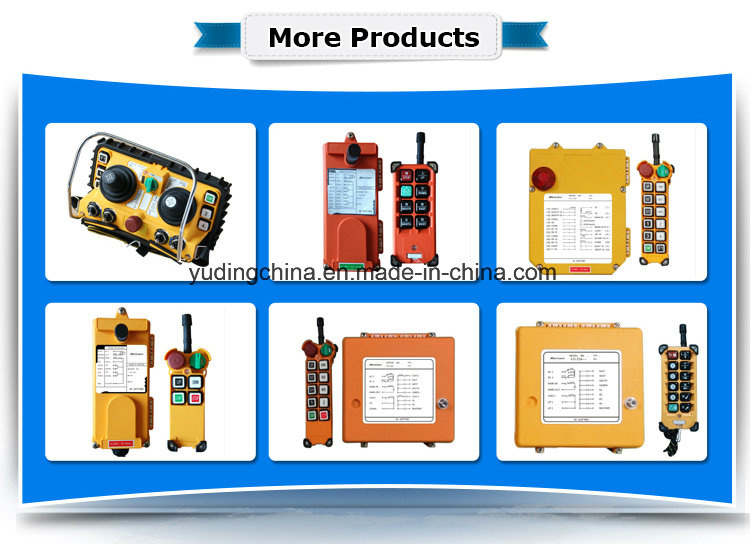

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
