| Prod Model: |
LKTM009 |
| Material: |
ABS |
| Sample: |
Available |
| Service: |
OEM, ODM |
| Place Of Origin: |
Guangdong, China |
| Application: |
Network |
| Delivery Detail: |
7 Days |
| Package: |
Inner Bag, Box and Carton Package |
| Shipping Terms: |
DHL/FedEx/EMS/UPS/TNT Ect. |
| Types: |
Different |
| Quality: |
High Quality and Best After-Sale Service |
| Usage: |
Server |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description
Guangzhou Lulink Hot Sale Disconnection Module
10 Pairs Protective Unit(3 grade lightning-arrest)
network surge protection devices provide full 10 pair network surge protection in a single compact unit. Public switched telephone networks (PSTN) are served by the TS10-P, while the TS10-I is ideal for ISDN (both base and primary rate) and private wire application. TS network surge protection units plug easily into standard disconnection or switching module strip. Earthing is via a hardwired connection to the MDF terminal, eliminating the need to use unreliable slide on tab connections to the frame.
- Simple plug in termination to Krone LSA disconnect block
- Full 10 pair protection
- TS10-I for ISDN/private wire, TS10-P for PSTN application
- Multi-stage hybrid protection technology
- 10 Year 'No Fuss' Warranty

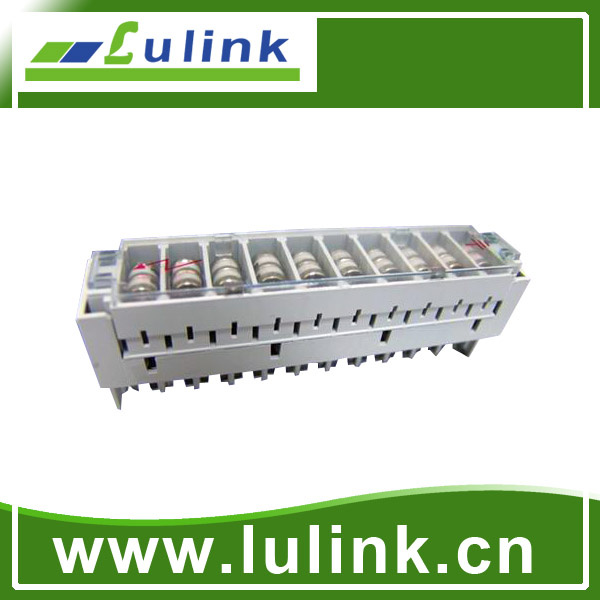

10 Pair Magazine, 2 Pole Arrester Loaded
Plastic Parts: ABS
Contact pin; Phosphor bronze with silver plated
10 pairs of terminal Block
Description
The 10 pairs of terminal block is used for distribution frame and cross connection cabinet, it adapt the insulation displacement contact system (IDC). The connection system facilitate termination of cable wire without striping the insulation, without soldering and without screwing. with the silver plated terminal to make the reliable connection.
Main Feature:
-The terminal block with the insulation displacement contact system (IDC).
-the connection system facilitate termination of cable wire without striping the insulation, without soldering and without screwing.
-The individual pair terminals in each module have identification number 1 through 10.
-Wire guiding rings provided on both sides of each module.
Terminal Pin Technical data
Electrical Requirements:
5.1 Reference temperature 20[c].
Inserted module: connection module.
Insulation resistance: min 50 G [ohms].
Dielectric strength min 2000 [Vrms].
Contact resistance: less than 5 m [Ohms].
Permanent current load capacity = wire capacity of 0.6 [mm].
Conductor Diameter:
Solid copper wire up to 0.4mm-1.0mm in diam insulation PE or PVC insulated wire
Wire: AWG 24-28#
Properties:
Connection frequency:200times
Easy connection of wires without affecting normal operation.
Performance exceeds category 4 components requirement
Allows connection plug over-voltage protection blocks 10pairs
Testing without have to remove the jumper.
Material:
Housing-PBT UL94V-2
Base-PBT UL94V-0
Contact-0.5MM THICKNESS
Base Plating over silver.
Labeling plate:
In order to show the row number, block number clear and let the operation more simple and convenience, there is a labeling plate indicating for match use as below, show .row number, block number, cable number, and pair from…To...
Bracket 100P (option) for Matching use:
The terminal blocks consist of disconnection modules for 10 pair each, mounted on a back mount frame of stainless steel as below:
Use for how many pairs in option such as 10p, 20p,50p, 100p, 200p....
Material:
stainless steel304,other material for option.
Size:
Use for this project choose 100P, the size:22.5*10.4*4.5CM
Other size for reference:
50P:11.2*10.4*4.5CM,
200P:45*10.4*4.5CM
Design:
With rubber ring for each hole design to protect the wire jacket no break
Thickness:
The thick layer is 0.1CM.other thickness for option.
The most advanced equipments for both producing and testing, which imported from Europe and America.
The main export markets:
North America, Asia ,Western Europe , Australia , Africa ,South America ,Middle East
Our service:
1)Reply your enquiry within 24 working hours;
2)Experienced staffs answer all your questions in fluent English;
3)Customized Design is available,OEM&ODM are welcomed;
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
5)Special discount and protection of sales area will be provided to our distributor.
Shipping:
BY DHL, UPS, FedEx, TNT, EMS etc...
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer forwarder.
Payment:
Paypal, Escrow for samples, small qty order or urgent orders at the buyer convenience .TT, L/C, Western Union for mass orders.
30% as Deposit, 70% Balance paid before delivery
Packing:
1) Package:available according to client's request,poly bag, carton box and so on
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
