| Prod Model: |
tk103a |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Ce FCC |
| Warranty Time: |
1 Year |
| Size: |
83*54*26mm |
| Weight: |
120g |
| Network: |
GSM/GPRS |
| Band: |
850/900/1800/1900MHz |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
5m |
| Voltage: |
12 V -24V |
| Backup Battery: |
Chargeable 3.7V 350mAh Polymer Li-Battery |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
103A |
| Screen Size: |
No Screen GPS Tracking Device |
| Brand: |
Coban |
| Certification: |
Ce, FCC |
Product Description
10 years free web tracking platform coban hot sale TK103A gps vehicle tracker with remotely stop engineTK103A- It is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals. The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit. This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.
Product Pictures:
Features:
Automatic Tracking - GPS Tracking Device can be programmed to automatically send a location update in various time Intervals.
Manual Locate - Allows you to manually request the current location of the GPS Device at any time.
Speeding Alert - Automatically marks the date, time, and location if the vehicle travels over the pre-set Speed Limit.
Internal Backup Battery-Power Interrupt Alarm - Automatically sends notification if the main power is cut or disconnected.
Store and Forward - When the GPS Device cannot lock onto a cellular signal, it will store update GPS information and forward the data when it reconnects. The device can store 2000 messages with its internal memory.
Movement Alert- Send all the authorized phone number TXT alerts when the vehicle moves out of the preset area(ie.200m radio).
Stop and resume the vehicle- If your car has any unexpected movement, you can stop the car remotely with your phone and resume it when threats is solved.
Fuel Monitoring- Support normal fuel sensor(drilling needed) and Ultra-sonic fuel sensor( no drilling), prevent any kind of fuel theft or abnormal fuel comsumption(fuel leak).
Voice monitoring- With standard microphone for the GPS tracker, you can voice monitor your vehicle whenever you want, keep your car safe.
LBS Tracking- When the device can not lock up to the GPS signal, for example, entered an underground parking lot, it can track with LBS(local based service) automatically and reconnect to GPS singal when it's found.
ACC working alert- Have a clue when your vehicle is on the move and take action to stop it if it's unexpected.
Door open alarm Five tracking solutions:
-Manual tracking
By calling the device, it will return a message back with Latitude and longitude data, you can enter this data on Google map or on our web tracking platform.
-PDA cell phone map tracking
The information that the message contains after you called the device has a map link, use a PDA smart phone you can open this link directly and see the location on your phone.
-Physical address tracking
By sending command "address+password", you will get a SMS return with the real street name like "zhiheng industries park, nantou guankou 2nd Rd, nanshan, shenzhen, guangdong, china."
-Web server online tracking www.gpstrackerxy.com
You can add the imei number of the device to the platform and after all the configuration, you can start real time online tracking on the platform.
we also supply multi-language(English,Spain,German,Italian.Portuguese,etc) web tracking platform for our customer to realize real-time tracking.
-Local based service(LBS) tracking
If the tracker cannot establish a solid GPS Fix, it will calculate its location using Cell-ID GSM locating, Location reports will include the GPS coordinates of the last known positions as well as a LAC code, Entering the LAC code to the "Manual Track" menu of web tracking platform www.gpstrackerxy.com will enable you to see the tracker's current location. You can also send command "address+password" to the tracker to request exact address, track will automatically switch to tracking by LBS in GPRS mode. Accuracy of LBS depends on the distance to the nearest GSM Network Cell Tower or Base Station.

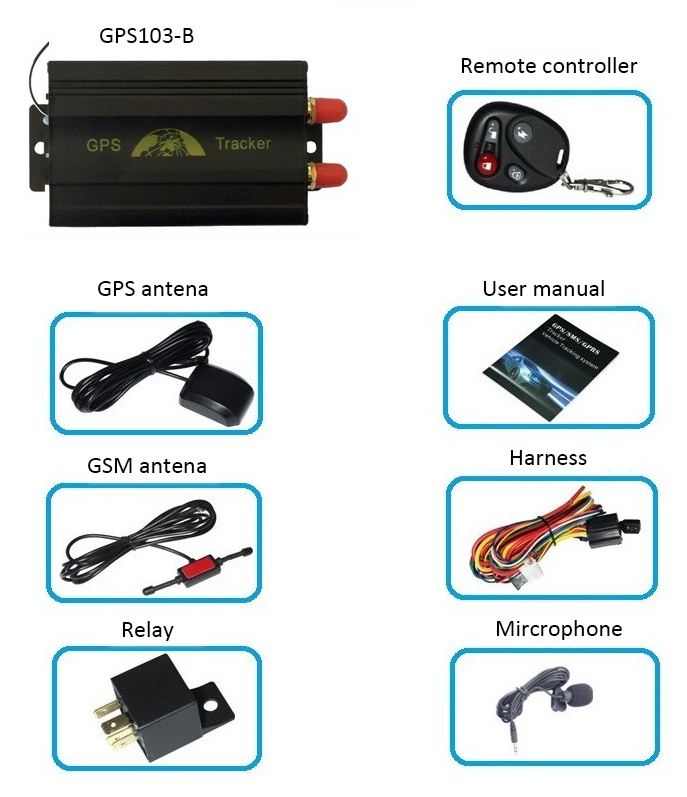

Standard Packing list:
Technology parameters:| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Web online tracking platform: www.gpstrackerxy.com
Account: demo
Password:8888

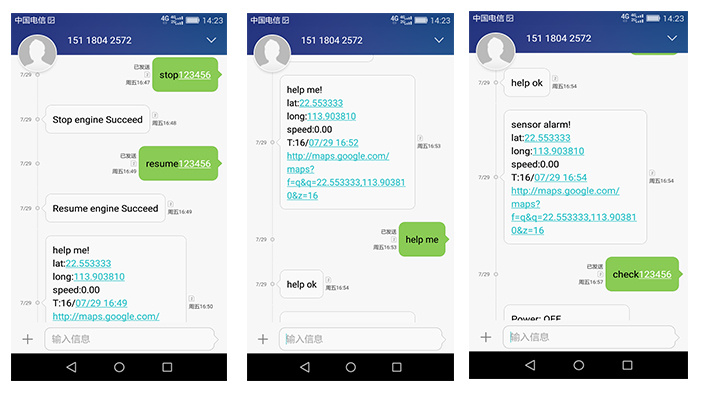

SMS Command Demo:
Application
Used widely for vehicle and other moving objects tracking. Real-Time Vehicle Tracking Solutions For Business
1)Live Fleet Tracking Systems: Engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.
2)Boost Employee & Vehicle Efficiency: By utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit.
3)Auto Theft Security: Vehicle locator systems can protect all of your companies mobile assets. Easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones. Don't let your business operations be slowed down by theft! With GPS trackers securing your company vehicles, automobile theft will be a thing of the past!
Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.

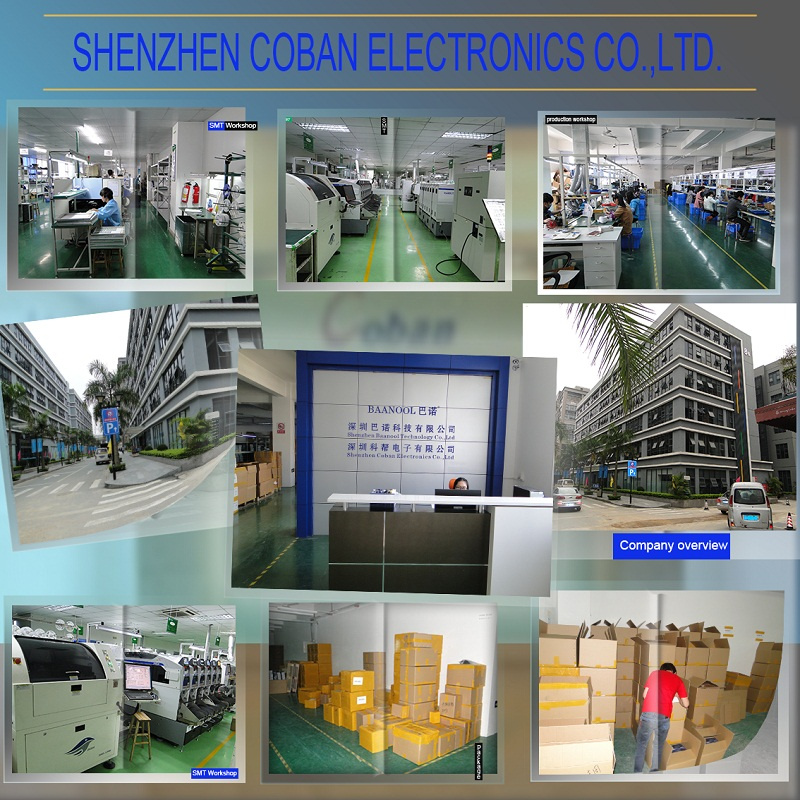

Our company
Holding 15 Years of Experience
Shenzhen Coban Electronics is a private export-oriented enterprise founded in 1999. About 90% of our products are exported, and we have many years of R&D, production and management experience in automotive electronics, security products, wireless communication terminal equipment and other fields. We specialize in GPS trackers, car anti-theft alarm systems, and car multimedia and entertainment systems.
Meeting Various Certificates
As a high-tech enterprise, we have a strict management system, and have obtained the CCC, CE, FCC, UL ISO 9001 and other certificates. Before all our products enter the market, they have been tested rigorously such as high and low temperature aging test, vibration test, noise test, and audio and video indicator decomposition tests. So far, our products have been well marketed in 107 countries and regions in the world.
Owner of Many R&D Centers for Continuous Innovation
Our company has set up R&D centers, including GPS R&D department, GSM R&D department and system integration department. All our products are developed independently and have obtained a number of national patents. So our professional and efficient R&D and production teams provide good foundation for high-quality products.
Our Services:
1. Free OEM ( MOQ:1000pcs)
2. Free Web tracking platform/Mobile App tracking(Android&ios) for one year
Please login the server 1 www.gpstrackerxy.com
account: demo password:8888
3. Can provide GPRS protocol if you have your own tracking platform
4. One year warranty for each device, bear maintenance cost during warranty
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
