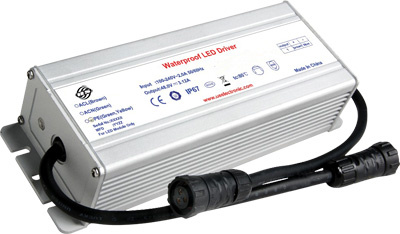

100-120W LED Driver Series Power Supply
| Price: |
US $ 6.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
100-120w |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
LED Light |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Brand: |
ODM, OEM |
Product Description
100-120W series
100-120W LED driver series
Features
| JXLS100-JXLS120 | Universal AC input/full range(input 85-305Vac) |
| Protections: short circuit; over load; over voltage; over current |
| Design for indoor installations |
| Built-in active PFC function, PF>0.96 |
| OCP point adjustable through output cable or internal potential meter |
| Cooling by free air convection |
| Suitable for all kinds of LED lighting, street lighting, and moving sign applications |
| Built-in constant current limiting (C.C.+C.V. mode) |
| Meet 4KV surge immunity level (IEC6100-4-5) |
| 3 years warranty |
| LED load less than 100% |
D type:1.1-10.0Vdc control signal;
P type: PWM control signal(internal or external) |
Specification
| specification | JXLS100-JXLS120 |
| Input voltage | 85-305Vac |
| Power factor | >0.96 |
| THD | <10% |
| Efficiency | 91%-94% |
| Operation temp | -40°C to 60°C |
| Storage temp | -40°C to 85°C |
| Humidity | 10%-90%RH |
| MTBF calculation | Up to 50000 hours lifetime Tcase80°C |
| Output voltage | 14Vdc-333Vdc |
| Output current | 0.35A-5.95A |
| Safety approval | Meet EN61347,UL8750,GB19510 |
| EMC standards | Meet EN61347, EN55015,EN61000,GB17743,GB17625 |
| Application | Mobile phone, Electronic cigarette, Tablet, Bluetooth headset, Water purifier, LED, Networking modem, Medical machine, CCTV camera, LCD, Set-top box, DVR, Router, Power Bank etc. |
Model list
| Series | Output | Current range | Voltage range | Eff. | R& N |
JXLS100
-JXLS120 | C.V. mode | 12V,0-8.80A | ±5% | ±5% | 91% | 150mV |
| 36V,0-3.33A | ±5% | ±5% | 93% | 150mV |
| 48V,0-2.50A | ±5% | ±5% | 93% | 200mV |
| 56V,0-2.14A | ±5% | ±5% | 93% | 200mV |
| 105V,0-1.14A | ±5% | ±5% | 93% | 200mV |
| C.C. mode | 14-24V,4.90A | ±3% | ±5% | 90.5% | 2000mV |
| 26-43V,2.80A | ±3% | ±5% | 91% | 2000mV |
| 52-86V,1.40A | ±3% | ±5% | 91% | 2000mV |
| 103-171V,0.70A | ±3% | ±5% | 92% | 2000mV |
| 260-333V,0.35A | ±3% | ±5% | 92% | 2000mV |
